FENDERS G4TR/A ('70-'73)

G4TR TRAILBOSS 1970 USA CANADA / MPH

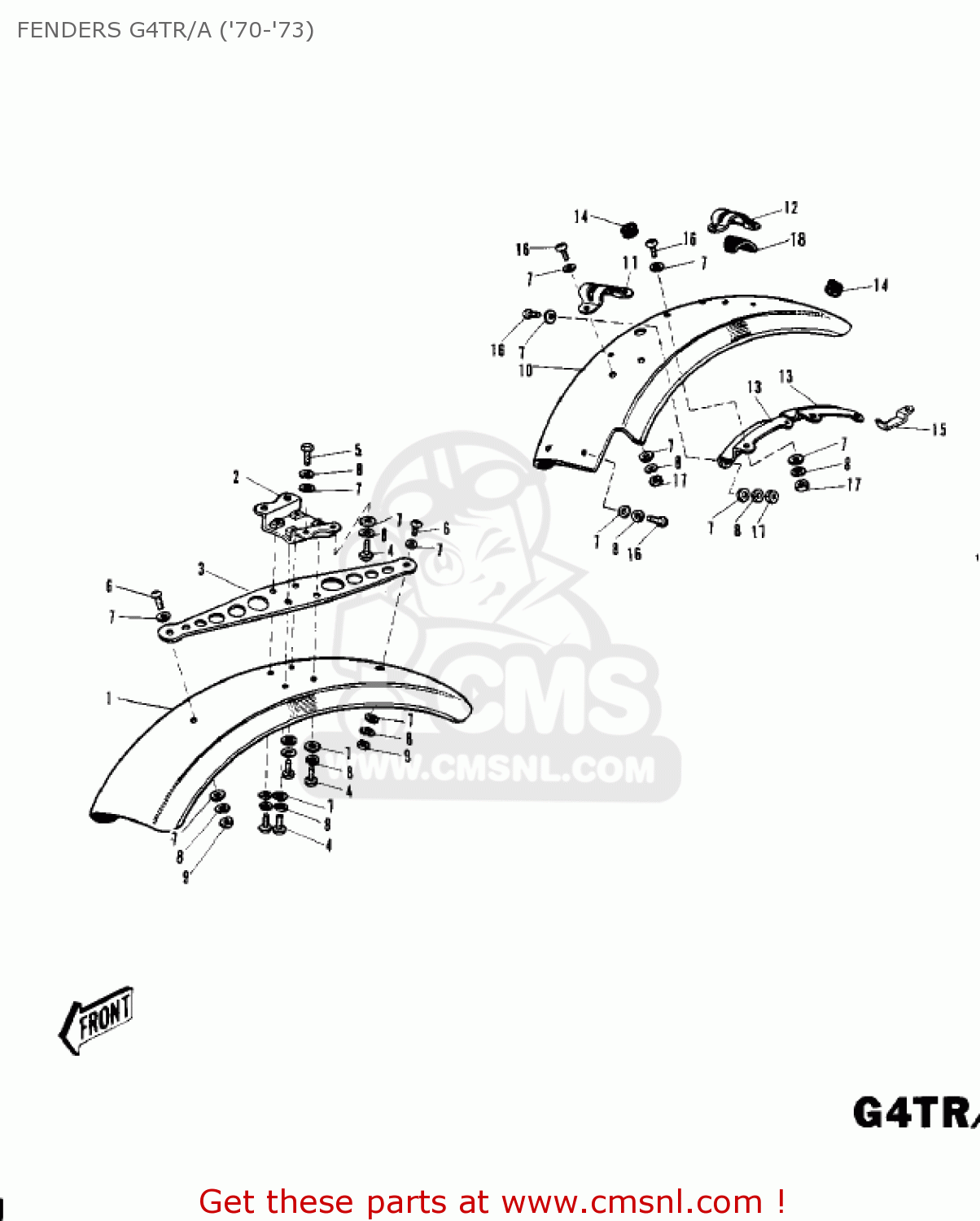

Fenders g4tr/a ('70-'73) diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

FENDERS G4TR/A ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

FENDERS G4TR/A ('70-'73) G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

35004069
ref: 1

FRONT FENDER

€ 257.50

2

35012010
ref: 2

FRONT FENDER BRACKET

€ 18.50

3

35013003
ref: 3

PLATE-FRONT FENDER

€ 6.50

4

112G0612
ref: 4

BOLT-UPSET

€ 2.50

5

112B0622
ref: 5

BOLT, 6X22

€ 2.50

6

220E0610
ref: 6

SCREW-PAN HEAD,6X10

€ 2.50

7

411B0600
ref: 7

WASHER-PLAIN,6MM

€ 0.50

8

461F0600
ref: 8

WASHER-SPRING,6MM

€ 0.50

9

312B0600
ref: 9

NUT,6MM

€ 0.50

10

35022047
ref: 10

REAR FENDER

€ 187.00

11

35025016
ref: 11

REAR FENDER BRACKET

€ 9.50

12

35025017
ref: 12

REAR FENDER BRACKET

€ 12.00

13

35021003
ref: 13

GUSSET REAR FENDER

€ 18.50

14

92071019
ref: 14

GROMMET,10MM

€ 2.50

15

35024002
ref: 15

CLAMP,WIRING HARNESS

€ 2.00

16

220B0612
ref: 16

SCREW-PAN HEAD,6X12

€ 1.00

17

311B0600
ref: 17

NUT,6MM

€ 0.50

18

32103015
ref: 18

REAR FENDER SUPPORT,RUBBER

€ 3.00
