METER/IGNITION SWITCH G4TR/A/B (

G4TR TRAILBOSS 1970 USA CANADA / MPH

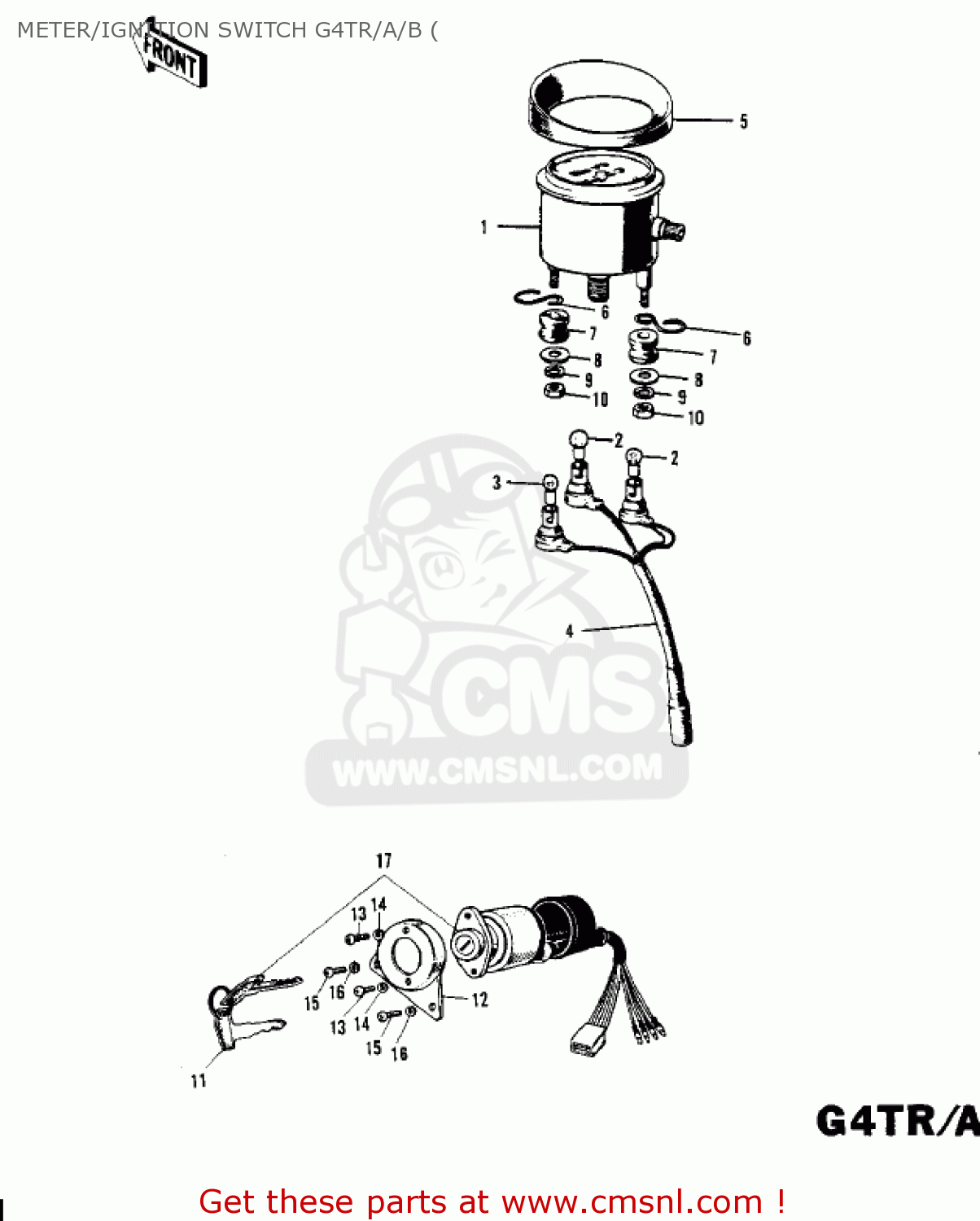

Meter/ignition switch g4tr/a/b ( diagram G4TR TRAILBOSS 1970 USA CANADA / MPH

METER/IGNITION SWITCH G4TR/A/B ( G4TR TRAILBOSS 1970 USA CANADA / MPH

METER/IGNITION SWITCH G4TR/A/B ( G4TR TRAILBOSS 1970 USA CANADA / MPH

prices are in EUR

ref

part #

description

quantity

1

25005039
ref: 1

SPEEDOMETER ASSEMBLY,MPH

€ 228.00

2

92069024
ref: 2

BULB 6V 1.5W

€ 3.00

3

92069053
ref: 3

BULB 6V 3W

€ 3.00

4

25011013
ref: 4

SPEEDOMETER SOCKET

€ 69.50

5

25012005
ref: 5
G4TR-B

SPEEDOMETER COVER

€ 18.50

6

25022002
ref: 6

CLAMP-CABLE

€ 3.50

7

92075024
ref: 7

DAMPER

€ 2.50

8

92022125
ref: 8

WASHER,6.5X20X1.6

€ 1.00

9

461F0600
ref: 9

WASHER-SPRING,6MM

€ 0.50

10

311B0600
ref: 10

NUT,6MM

€ 0.50

11

2700803435
ref: 11

KEY SET,#235

€ 18.50

11

2700803439
ref: 11

KEY SET,#239

€ 33.50

11

2700803421
ref: 11

KEY SET,#321

€ 22.00

11

2700803424
ref: 11

KEY SET,#324

€ 39.50

11

270081016
ref: 11

KEY,BLANK

€ 6.50

11

270081017
ref: 11

KEY,BLANK

€ 7.00

11

270081018
ref: 11

KEY-LOCK,BLANK,STEERI

€ 9.50

11

270081019
ref: 11

KEY-LOCK,BLANK,STEERI

€ 9.50

12

27009007
ref: 12
G4TR/A

IGNITION HOUSING

€ 17.00

13

220B0512
ref: 13

SCREW-PAN-CROS

€ 0.50

14

461F0500
ref: 14

WASHER-SPRING,5MM

€ 0.50

15

220E0612
ref: 15
G4TR/A

SCREW-PAN HEAD,6X12

€ 3.00

16

461F0600
ref: 16
G4TR/A

WASHER-SPRING,6MM

€ 0.50

17

270051016
ref: 17

SWITCH ASSY,IGNITION

€ 59.50
