TRANSMISSION ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

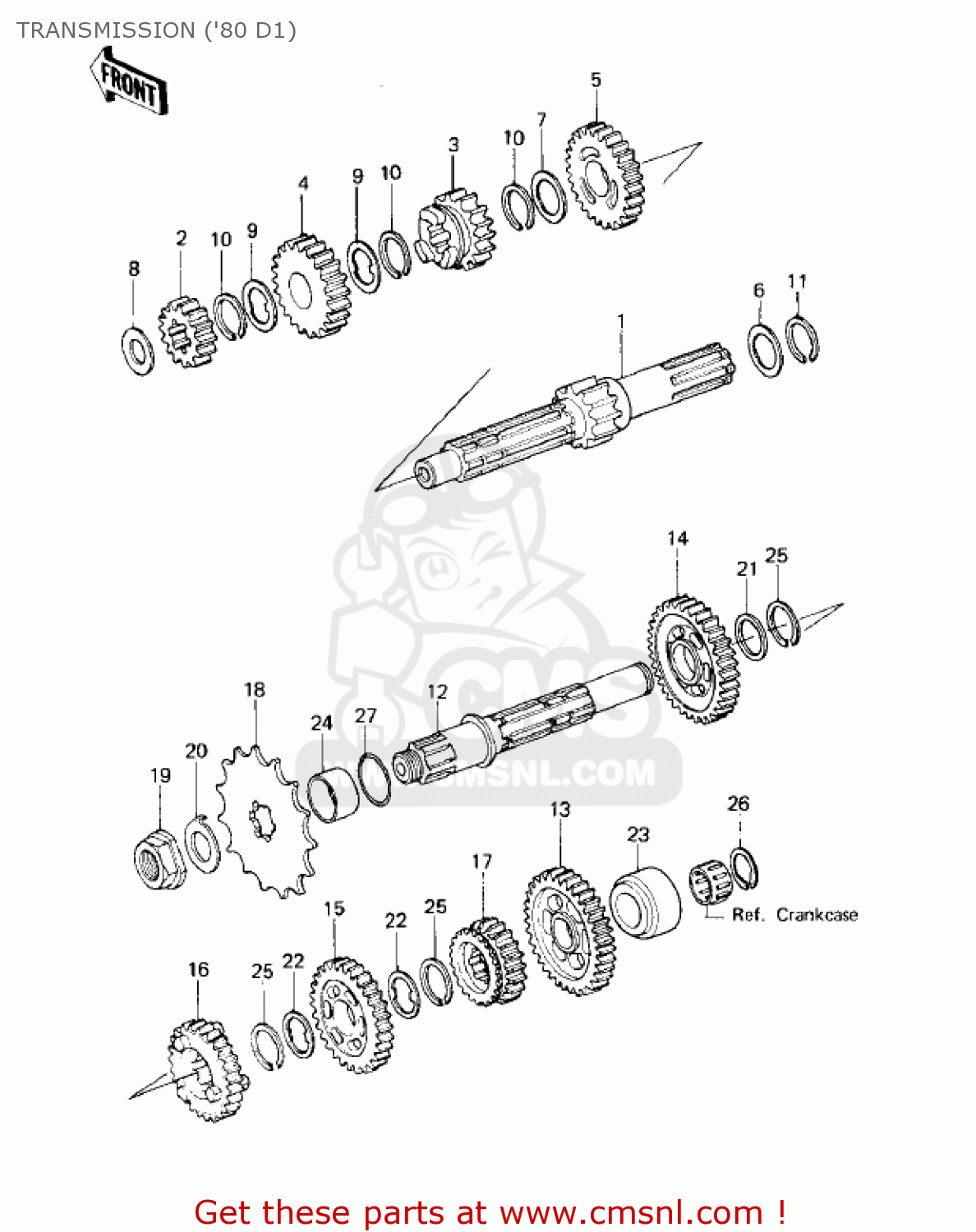

Transmission ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

TRANSMISSION ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

TRANSMISSION ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

131271029
ref: 1

SHAFT,DRIVE

€ 68.50

2

131291022
ref: 2
15T

2ND GEAR,DRIVE SHAFT

€ 66.00

3

131291284
ref: 3
20T

GEAR,INPUT 3RD,20T

€ 131.00

4

13134026
ref: 4
20T

GEAR,INPUT 4TH,20T

€ 63.00

5

13136057
ref: 5
21T

TOP GEAR,DRIVE SHAFT

€ 35.50

6

92022112
ref: 6

WASHER,20.5X30X1,STEE

€ 6.00

7

92022198
ref: 7

WASHER-PLAIN

€ 3.50

8

92022279
ref: 8

WASHER,15.3X25X1

€ 7.00

9

92024039
ref: 9

WASHER-LOCK

€ 4.00

10

92033025
ref: 10

CIRCLIP,25MM

€ 3.00

11

92033029
ref: 11

CIRCLIP,18MM

€ 6.50

12

131281007
ref: 12

SHAFT-TRANSMISSION OU

€ 134.00

13

13129058
ref: 13
29T

LOW GEAR,OUTPUT SHAFT

€ 110.50

14

13131044
ref: 14
26T

GEAR,OUTPUT 2ND,26T

€ 103.00

15

13133044
ref: 15
26T

GEAR,OUTPUT 3RD,26T

€ 96.50

16

131291285
ref: 16
24T

GEAR,OUTPUT 4TH,21T

€ 110.50

17

13137037
ref: 17
19T

TOP GEAR,OUTPUT SHAFT

€ 43.00

18

13144069
ref: 18

SPROCKET-OUTPUT,15T

€ 34.00

19

920151013
ref: 19

NUT,LOCK,16MM

€ 34.50

20

920221017
ref: 20

WASHER,CLAW,16.5X36X1

€ 2.50

21

92022198
ref: 21

WASHER-PLAIN

€ 3.50

22

92024039
ref: 22

WASHER-LOCK

€ 4.00

23

920261061
ref: 23

SPACER,DRIVE SHAFT

€ 8.00

24

92027287
ref: 24

COLLAR,25X32X14.4

€ 8.00

25

92033025
ref: 25

CIRCLIP,25MM

€ 3.00

26

92033032
ref: 26

CIRCLIP

€ 3.00

27

92055022
ref: 27

'O' RING

€ 4.00
