CYLINDER HEAD/COVERS ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

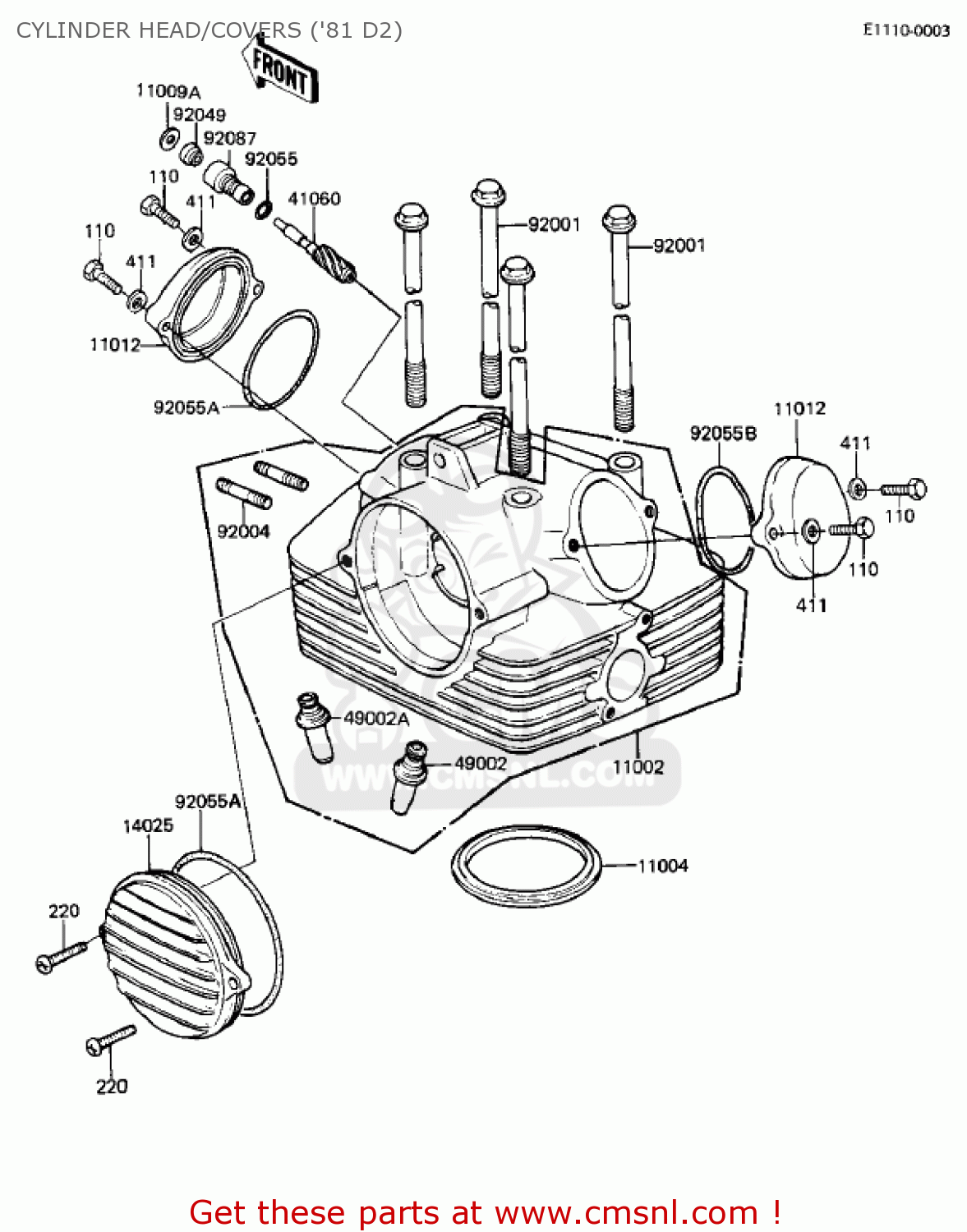

Cylinder head/covers ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

CYLINDER HEAD/COVERS ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

CYLINDER HEAD/COVERS ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

11002

110025013
ref: 11002

CYLINDER HEAD

€ 429.00

11004

110041002
ref: 11004

GASKET,CYLINDER HEAD (MCA)

€ 30.00

11009

92065104
ref: 11009

GASKET,TACHO GEAR (NAS)

€ 3.50

11012

110270042H
ref: 11012

CAP

€ 21.00

14025

140251276
ref: 14025

COVER,CAMSHAFT

€ 39.00

41060

13223012
ref: 41060

GEAR, TACHOMETER

€ 30.50

49002

12013003
ref: 49002

GUIDE-VALVE,INTAKE

€ 24.00

49002A

490021010
ref: 49002A

GUIDE-VALVE,EXHAUST

€ 20.50

92001

92003220
ref: 92001

BOLT, 8X233

€ 12.00

92004

920041069
ref: 92004

STUD,8X30

€ 4.50

92049

92050075
ref: 92049

OIL SEAL,TACHOMETER

€ 7.50

92055

920551149
ref: 92055

RING-O,10MM

€ 4.00

92055A

92055107
ref: 92055A

O RING, 990

€ 7.00

92055B

92055112
ref: 92055B

O RING, 53.5 M/M

€ 4.00

92087

92087011
ref: 92087

BUSHING-METER GEAR,TA

€ 12.50

110

112G0625
ref: 110

BOLT-UPSET,6X25

€ 4.00

220

220B0625
ref: 220

SCREW-PAN HEAD,6X25

€ 1.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50
