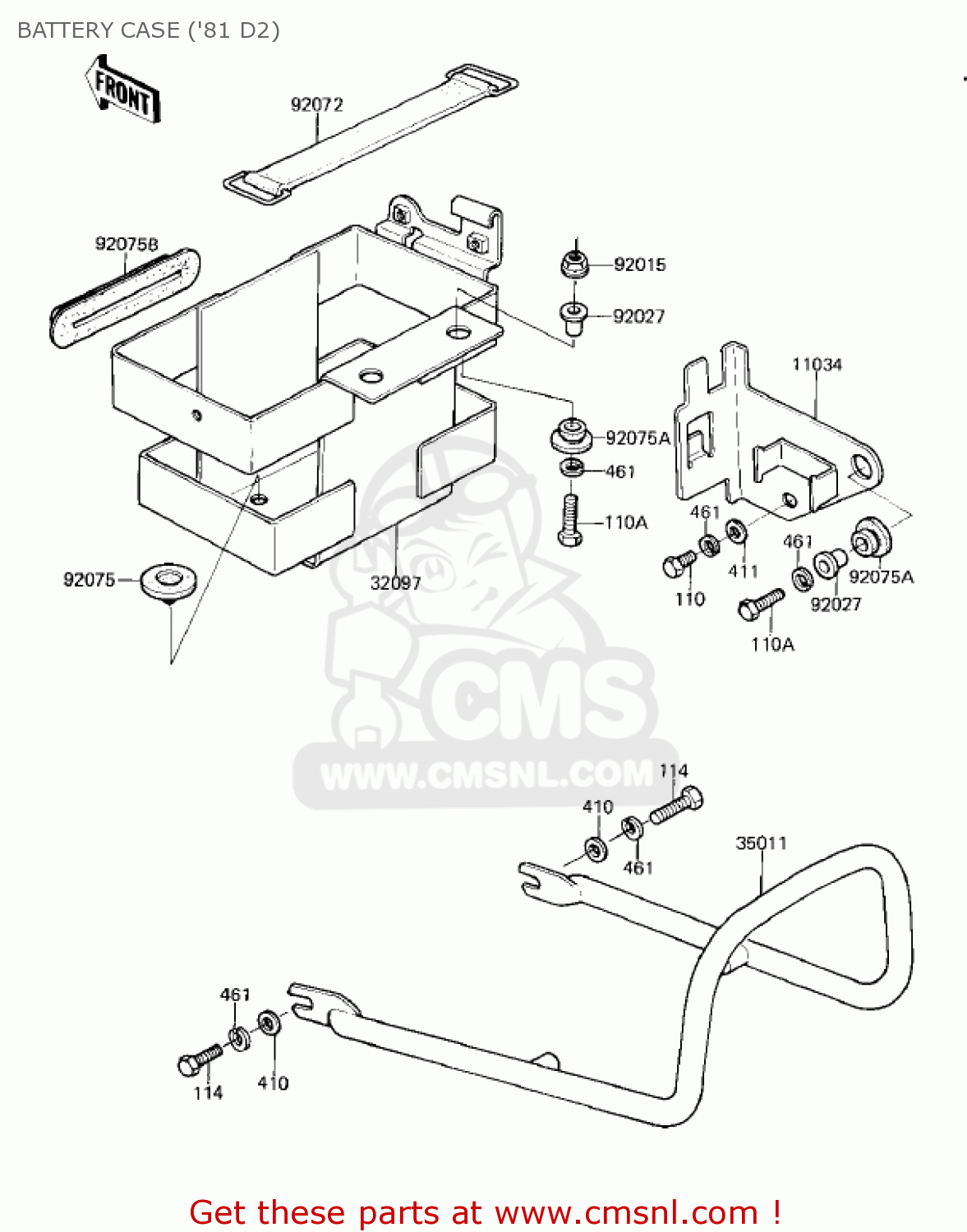

BATTERY CASE ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

Battery case ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

BATTERY CASE ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

BATTERY CASE ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

11034

110341672
ref: 11034

BRACKET,BASE

€ 6.00

32097

320971023
ref: 32097

CASE,BATTERY

€ 54.50

35011

350111061
ref: 35011

STAY,REAR FENDER

€ 92.00

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92027

92027194
ref: 92027

COLLAR

€ 3.50

92072

92072006
ref: 92072

BAND,L=142.1

€ 8.00

92075

92075078
ref: 92075

DAMPER,RUBBER

€ 2.50

92075A

92075277
ref: 92075A

DAMPER

€ 1.00

92075B

92075280
ref: 92075B

DAMPER

€ 3.00

110

112G0612
ref: 110

BOLT-UPSET

€ 2.50

110A

112B0622
ref: 110A

BOLT, 6X22

€ 2.50

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

411

411B0600
ref: 411

WASHER-PLAIN,6MM

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50
