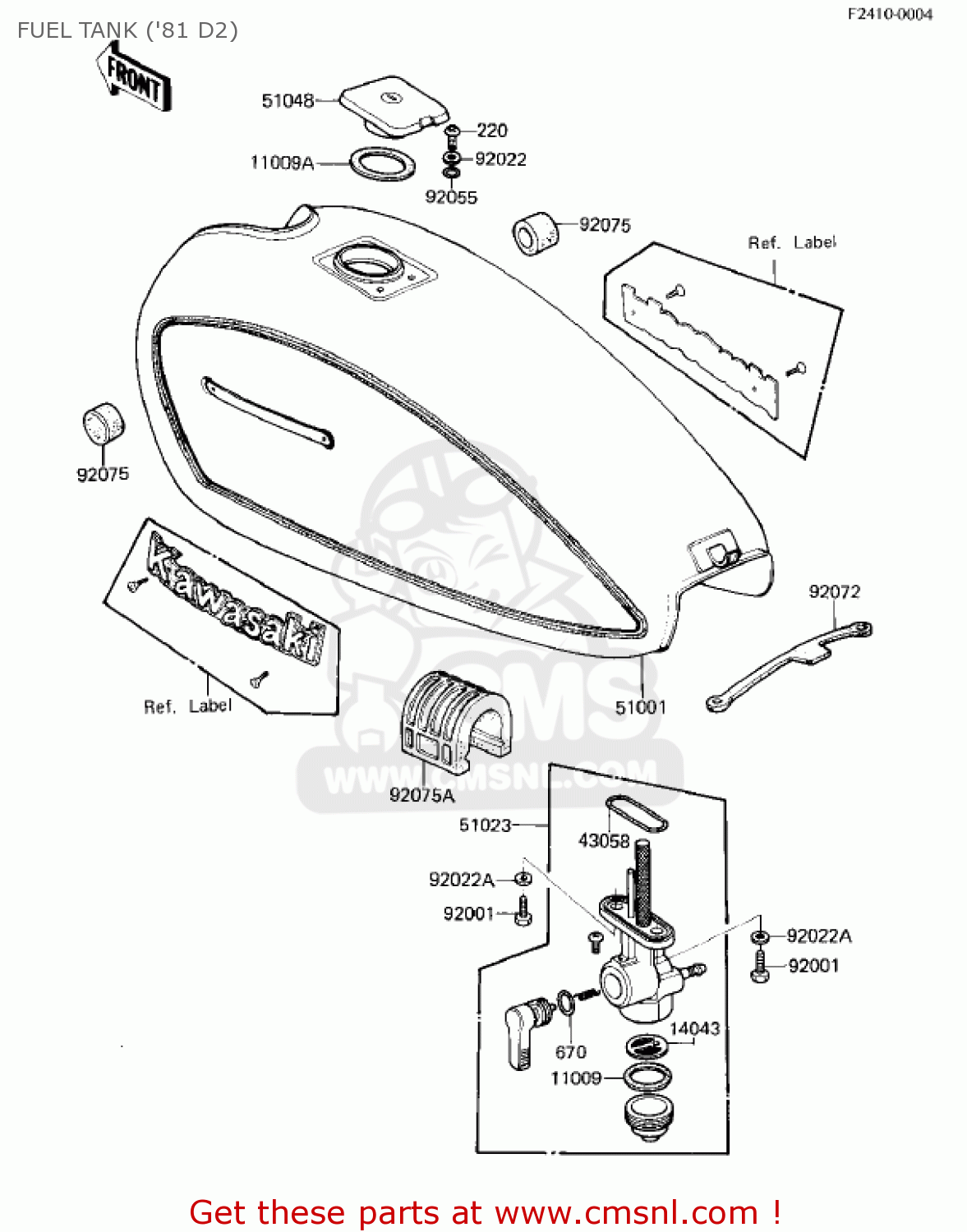

FUEL TANK ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

Fuel tank ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

FUEL TANK ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

FUEL TANK ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

11009

110091013
ref: 11009

GASKET,FUEL TAP CUP (NAS)

€ 3.50

11009A

110091051
ref: 11009A

GASKET,FUEL TANK CAP (NAS)

€ 7.00

14043

140431002
ref: 14043

FILTER,FUEL TAP

€ 3.00

43058

51039003
ref: 43058

'O' RING

€ 4.00

51001

510011039D9
ref: 51001

TANK-COMP-FUEL,L.P.RE

€ 550.00

51023

510231051
ref: 51023

TAP-ASSY,FUEL

€ 51.50

51048

510481018
ref: 51048

CAP-ASSY-TANK

€ 75.50

92001

920011091
ref: 92001

BOLT,6X20,FUEL TAP

€ 2.50

92022

920221038
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

92022183
ref: 92022A

WASHER,6.2X11X1.5

€ 2.50

92055

920551023
ref: 92055

ORING

€ 2.50

92072

92072042
ref: 92072

BAND,FUEL TANK

€ 9.00

92075

92075101
ref: 92075

DAMPER RUBBER-FL TANK

€ 4.00

92075A

92075215
ref: 92075A

DAMPER,FUEL TANK

€ 9.50

220

220B0510
ref: 220

SCREW-PAN-CROS,5X10

€ 0.50

670

670B2010
ref: 670

O RING,10MM

€ 1.00
