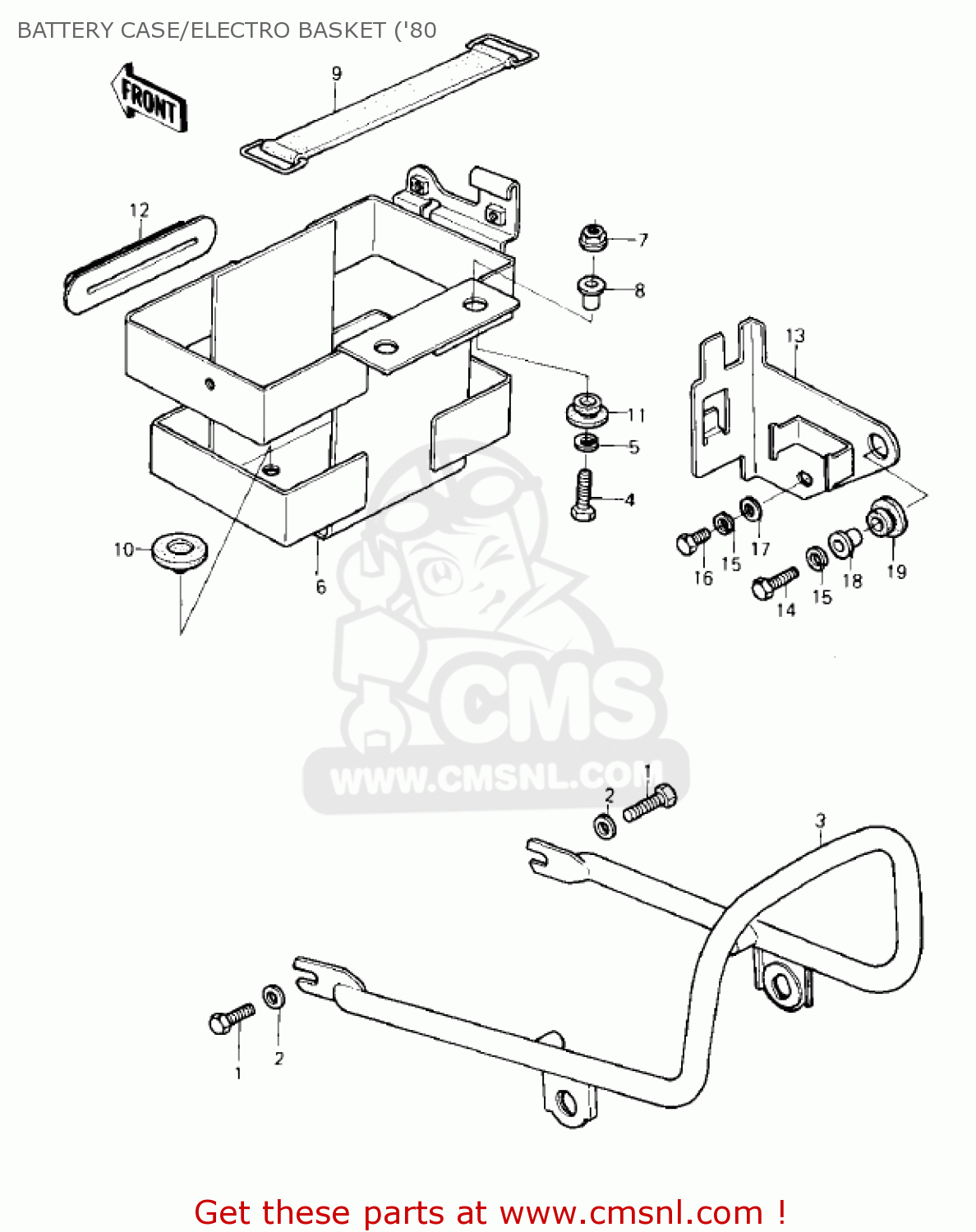

BATTERY CASE/ELECTRO BASKET ('80

KZ250D2 CSR 1981 USA CANADA / MPH KPH

Battery case/electro basket ('80 diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

BATTERY CASE/ELECTRO BASKET ('80 KZ250D2 CSR 1981 USA CANADA / MPH KPH

BATTERY CASE/ELECTRO BASKET ('80 KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

115G0816
ref: 1

BOLT-HEX,HEAD 8X16

€ 0.50

2

461F0800
ref: 2

WASHER-SPRING,8MM

€ 0.50

3

350111039
ref: 3

REAR FENDER STAY

€ 85.00

4

112B0622
ref: 4

BOLT, 6X22

€ 2.50

5

461F0600
ref: 5

WASHER-SPRING,6MM

€ 0.50

6

320971023
ref: 6

CASE,BATTERY

€ 54.50

7

920151078
ref: 7

NUT,6M/M

€ 1.50

8

92027194
ref: 8

COLLAR

€ 3.50

9

92072006
ref: 9

BAND,L=142.1

€ 8.00

10

92075078
ref: 10

DAMPER,RUBBER

€ 2.50

11

92075277
ref: 11

DAMPER

€ 1.00

12

92075280
ref: 12

DAMPER

€ 3.00

13

110341672
ref: 13

BRACKET,BASE

€ 6.00

14

112B0622
ref: 14

BOLT, 6X22

€ 2.50

15

461F0600
ref: 15

WASHER-SPRING,6MM

€ 0.50

16

112G0612
ref: 16

BOLT-UPSET

€ 2.50

17

411B0600
ref: 17

WASHER-PLAIN,6MM

€ 0.50

18

92027194
ref: 18

COLLAR

€ 3.50

19

92075277
ref: 19

DAMPER

€ 1.00
