BRAKE PEDAL/TORQUE LINK ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

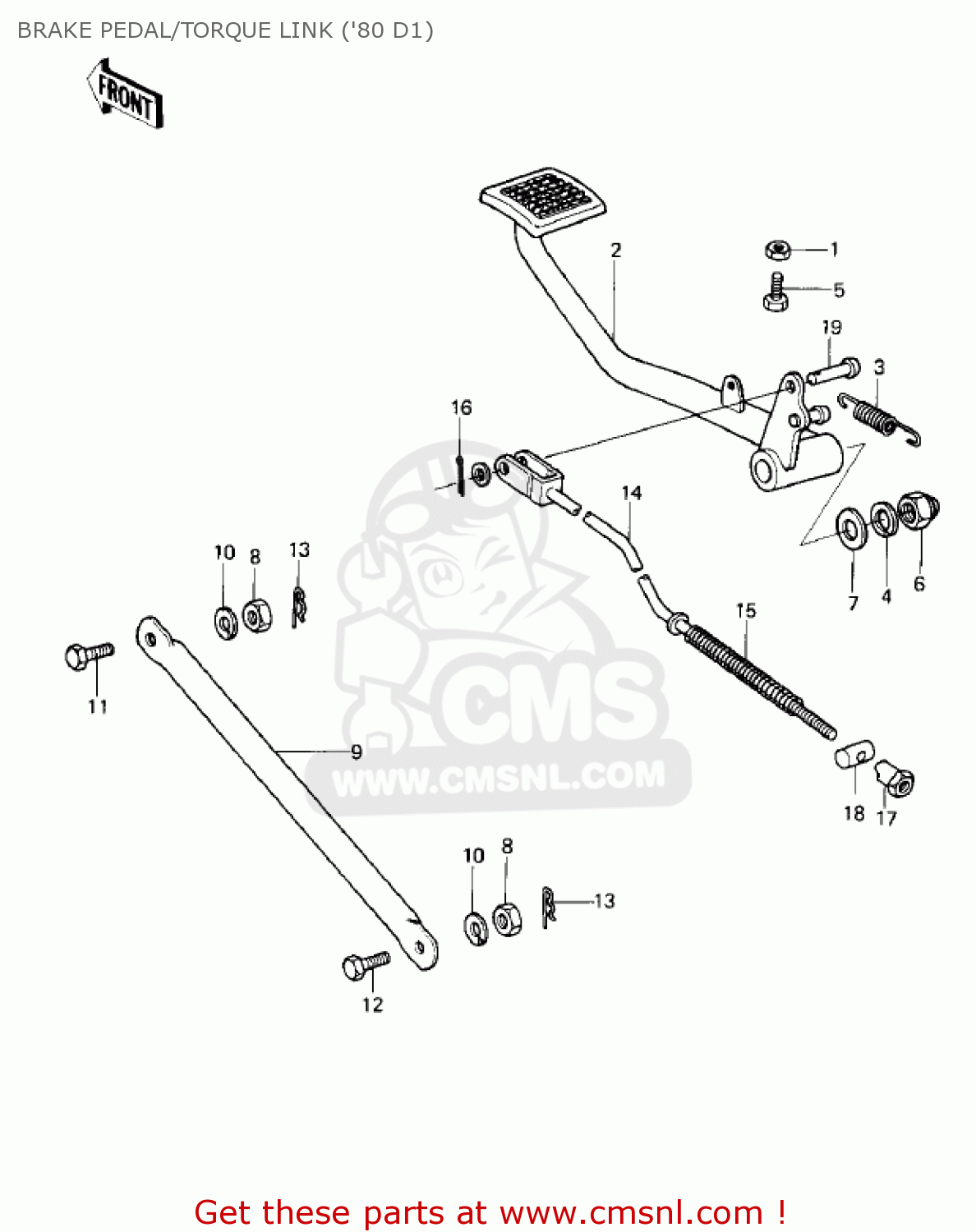

Brake pedal/torque link ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

BRAKE PEDAL/TORQUE LINK ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

BRAKE PEDAL/TORQUE LINK ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

311B0600
ref: 1

NUT,6MM

€ 0.50

2

430011044
ref: 2

PEDAL,BRAKE

€ 37.00

3

43005029
ref: 3

SPRING,BRAKE PEDAL

€ 6.00

4

461F0800
ref: 4

WASHER-SPRING,8MM

€ 0.50

5

920011090
ref: 5

BOLT,HEX HEAD,6X25

€ 2.50

6

92019013
ref: 6

NUT,CAP,LOCK,8MM

€ 5.50

7

920221561
ref: 7

WASHER,8.5X20X1.6

€ 2.50

8

315B1000
ref: 8

NUT,10MM

€ 0.50

9

43007018
ref: 9

TORQUE LINK,REAR BRK

€ 8.50

10

461F1000
ref: 10

WASHER-SPRING,10MM

€ 0.50

11

92003017
ref: 11

BOLT-TRQ LINK 10X25

€ 3.50

12

92003096
ref: 12

BOLT-TRQ LINK 10X29

€ 7.00

13

554A0800
ref: 13

PIN-SNAP,8MM

€ 1.00

14

430111022
ref: 14

ROD,BRAKE

€ 16.00

15

43012001
ref: 15

SPRING,BRAKE ROD

€ 3.00

16

550D2015
ref: 16

PIN-COTTER,2.0X15

€ 1.00

17

92015042
ref: 17

NUT-BRAKE ROD ADJUST

€ 4.00

18

92043039
ref: 18

PIN,BRAKE ROD

€ 4.50

19

92043090
ref: 19

PIN,6X13

€ 4.00
