ENGINE COVERS ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

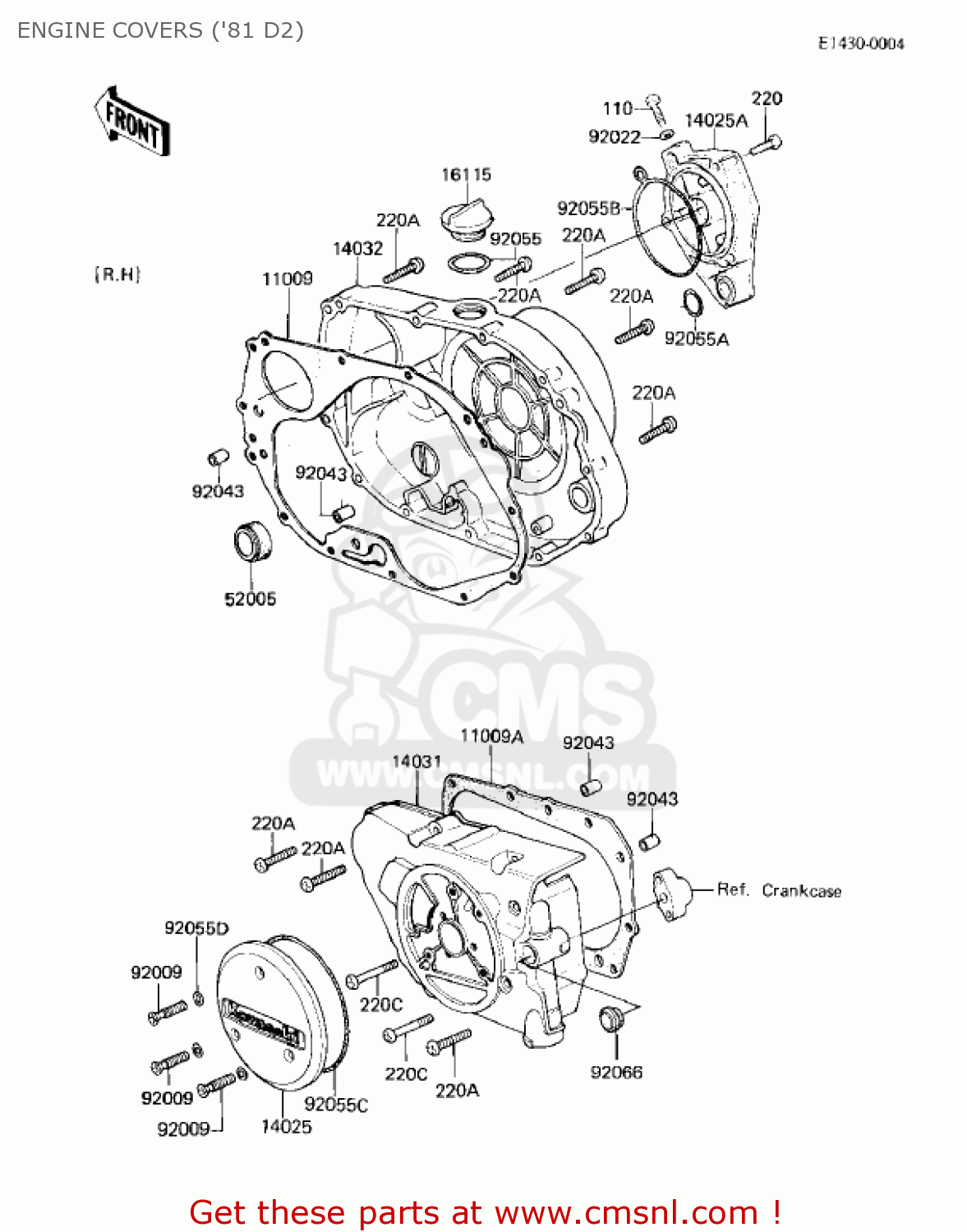

Engine covers ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

ENGINE COVERS ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

ENGINE COVERS ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

11009

110091235
ref: 11009

GASKET,ENGINE COV,RH (MCA)

€ 20.50

11009A

14045031
ref: 11009A

GASKET,L.H ENGINE COV (MCA)

€ 19.00

14025

140251107
ref: 14025

COVER,GENERATOR

€ 27.00

14025A

140251190
ref: 14025A

COVER,OIL FILTER

€ 29.00

14026

140260372H
ref: 14026

COVER, CHAIN

€ 45.00

14031

140311060
ref: 14031

COVER-GENERATOR

€ 36.00

14032

140321030
ref: 14032

COVER,R.H ENGINE

€ 34.00

16115

16115013
ref: 16115

PLUG-OIL FILLER

€ 13.50

52005

520051009
ref: 52005

GAUGE,OIL LEVEL

€ 12.00

92009

222E0625
ref: 92009

SCREW,OVL CNTSK,6X25

€ 1.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92055A

92055098
ref: 92055A

RING-O

€ 5.50

92055B

920551048
ref: 92055B

RING-O,FILTER COVER

€ 9.50

92055C

92055108
ref: 92055C

RING-O,GENERATOR COVE

€ 7.00

92055D

92055109
ref: 92055D

RING-O,5.28X1.78

€ 2.50

92066

92066065
ref: 92066

PLUG,CLUTCH PUSH ROD,

€ 2.50

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

220

220B0625
ref: 220

SCREW-PAN HEAD,6X25

€ 1.50

220A

220B0630
ref: 220A

SCREW-PAN HEAD,6X30

€ 2.50

220B

220B0655
ref: 220B

SCREW-PAN HEAD,6X55

€ 2.50

220C

220B0660
ref: 220C

SCREW-PAN HEAD,6X60

€ 2.50
