FRAME/FRAME FITTINGS ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

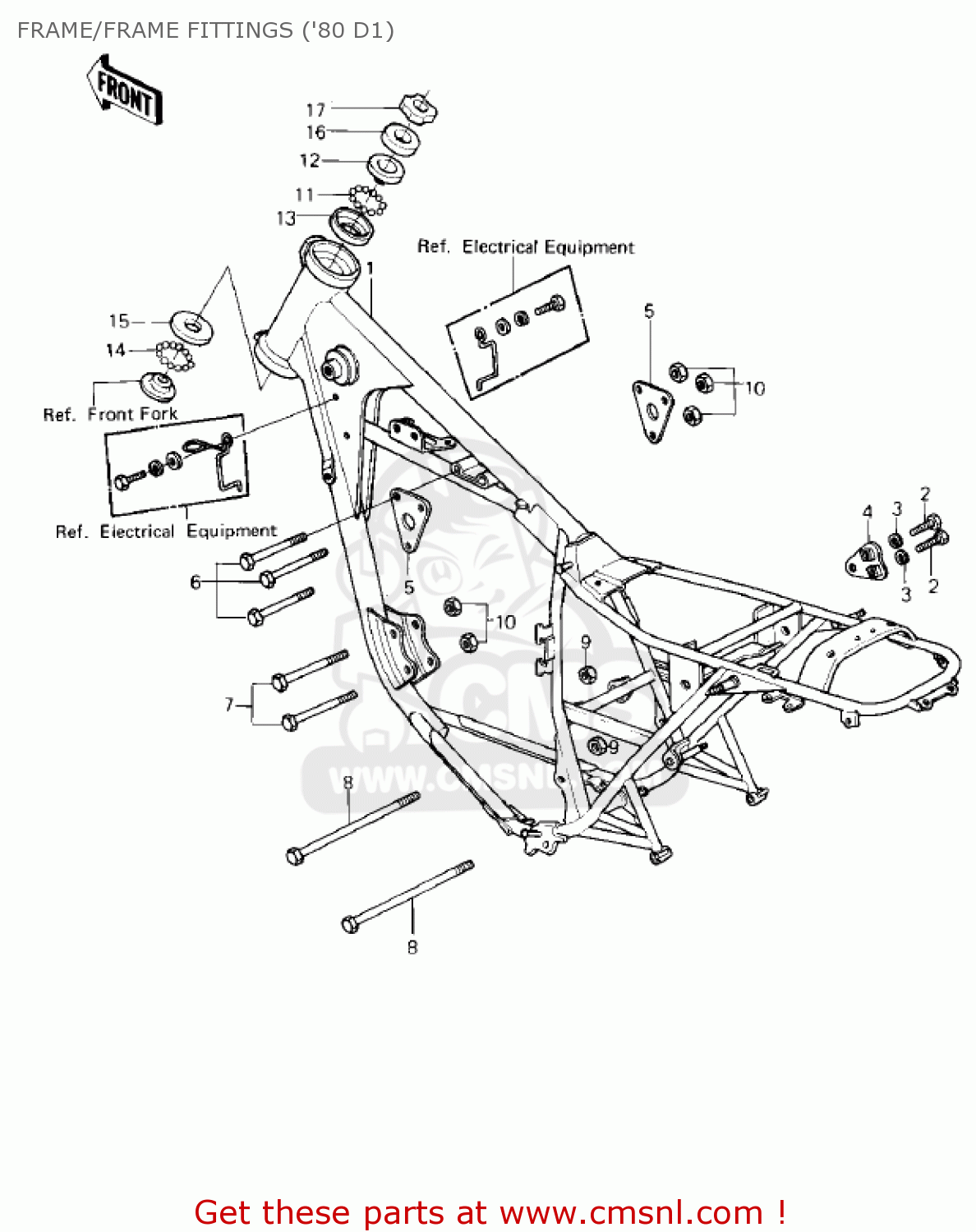

Frame/frame fittings ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

FRAME/FRAME FITTINGS ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

FRAME/FRAME FITTINGS ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

320021113
ref: 1

FRAME

€ 858.50

2

115G0816
ref: 2

BOLT-HEX,HEAD 8X16

€ 0.50

3

461F0800
ref: 3

WASHER-SPRING,8MM

€ 0.50

4

320291008
ref: 4

BRACKET-ENGINE

€ 7.00

5

32030069
ref: 5

BRACKET-ENGINE,HEAD

€ 14.00

6

920011581
ref: 6

BOLT,FLANGED,8X60

€ 3.50

7

920011583
ref: 7

BOLT,FLANGED,8X70

€ 6.00

8

920011602
ref: 8

BOLT,FLANGED,10X110

€ 7.50

9

92019021
ref: 9

NUT,LOCK,10M/M

€ 2.00

10

920151124
ref: 10

NUT,LOCK,8MM

€ 3.50

11

600A0600
ref: 11

BALL-STEEL,3/16

€ 0.50

12

92047014
ref: 12

RACE,STEERING STEM BE

€ 12.50

13

92048009
ref: 13

RACE,STRG STM

€ 14.00

14

600A0800
ref: 14

BALL-STEEL,1/4

€ 0.50

15

92048005
ref: 15

RACE-STEERING BEARING

€ 11.50

16

46098012
ref: 16

CAP,STEERING STEM

€ 4.50

17

92090022
ref: 17

NUT,STEERING LOCK,25M

€ 18.50
