METERS ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

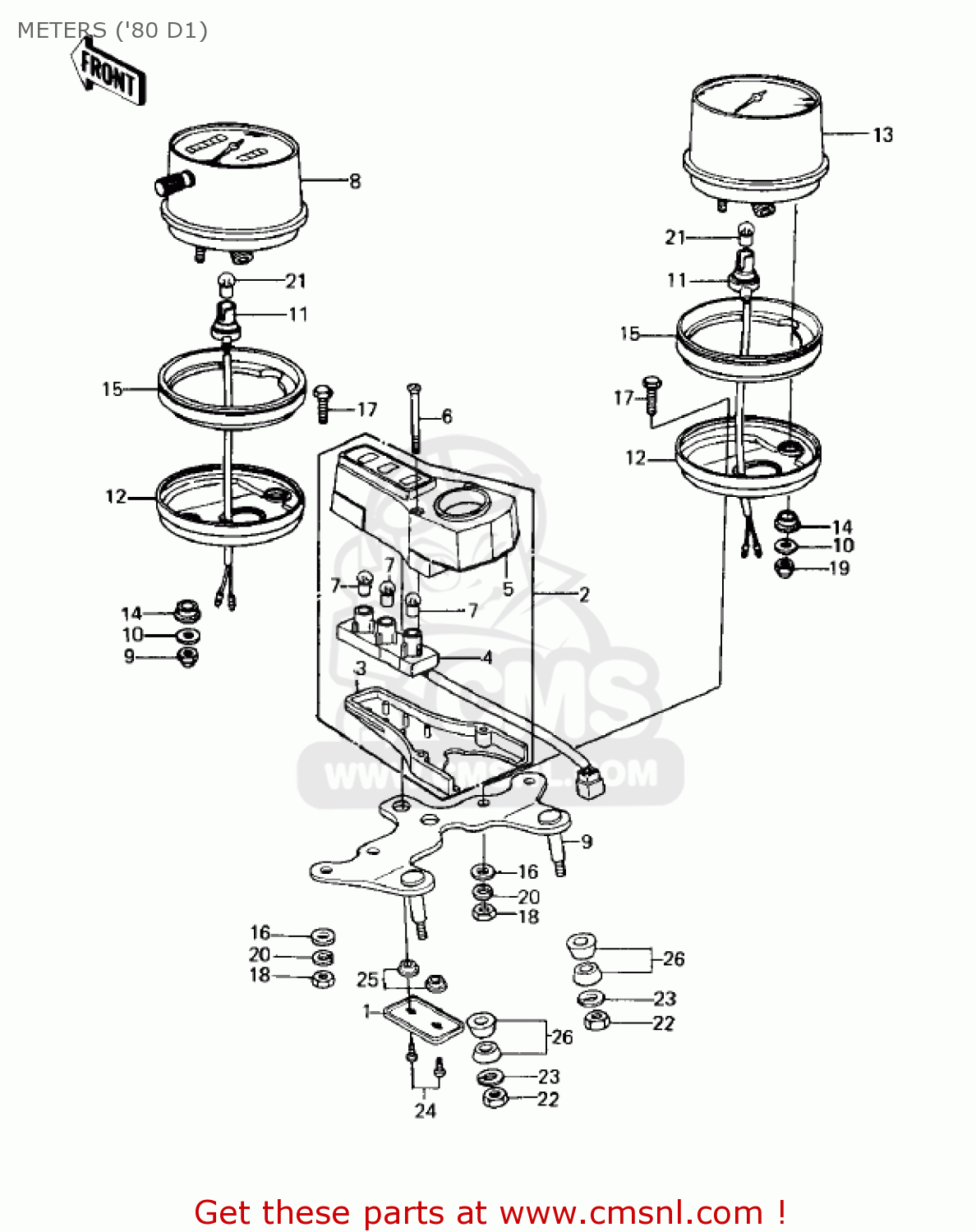

Meters ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

METERS ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

METERS ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

131691136
ref: 1

PLATE,PILOT LAMP

€ 4.50

2

230161017
ref: 2

LAMP-ASSY,PILOT

€ 72.50

3

140251101
ref: 3

COVER,METER BRACKET

€ 11.50

4

25011056
ref: 4

SOCKET ASSY,INDICATOR

€ 11.00

5

250231018
ref: 5

COVER,INDICATOR LAMP

€ 9.00

6

222C0445
ref: 6

SCREW-CSK-RD-CROS,4X4

€ 2.00

7

92069018
ref: 7

BULB 12V 3W

€ 4.00

8

250051060
ref: 8

SPEEDOMETER,MPH

€ 330.00

8

250051072
ref: 8

SPEEDOMETER ASSY,KPH

€ 171.50

9

250081013
ref: 9

BRACKET-METER

€ 60.50

10

25009004
ref: 10

WASHER,5.2X16X1.2T

€ 2.50

11

25010022
ref: 11

SOCKET-ASSY,METER

€ 16.50

12

25012025
ref: 12

COVER,METER

€ 27.50

13

250151016
ref: 13

TACHOMETER ASSY

€ 149.00

14

25019013
ref: 14

DAMPER,METER

€ 3.50

15

25019031
ref: 15

DAMPER,METER

€ 9.50

16

411B0600
ref: 16

WASHER-PLAIN,6MM

€ 0.50

17

92003204
ref: 17

BOLT

€ 3.00

18

92015078
ref: 18

NUT

€ 2.50

19

322N0500
ref: 19

NUT-CAP,5MM

€ 2.00

20

461K0600
ref: 20

WASHER-SPRING

€ 0.50

21

92069018
ref: 21

BULB 12V 3W

€ 4.00

22

311B0600
ref: 22

NUT,6MM

€ 0.50

23

461F0600
ref: 23

WASHER-SPRING,6MM

€ 0.50

24

920091040
ref: 24

SCREW,TAPPING,4X10

€ 2.50

25

920751138
ref: 25

DAMPER,PILOT LAMP

€ 2.50

26

92075248
ref: 26

DAMPER,METER BRACKET

€ 3.50
