FRONT FORK ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

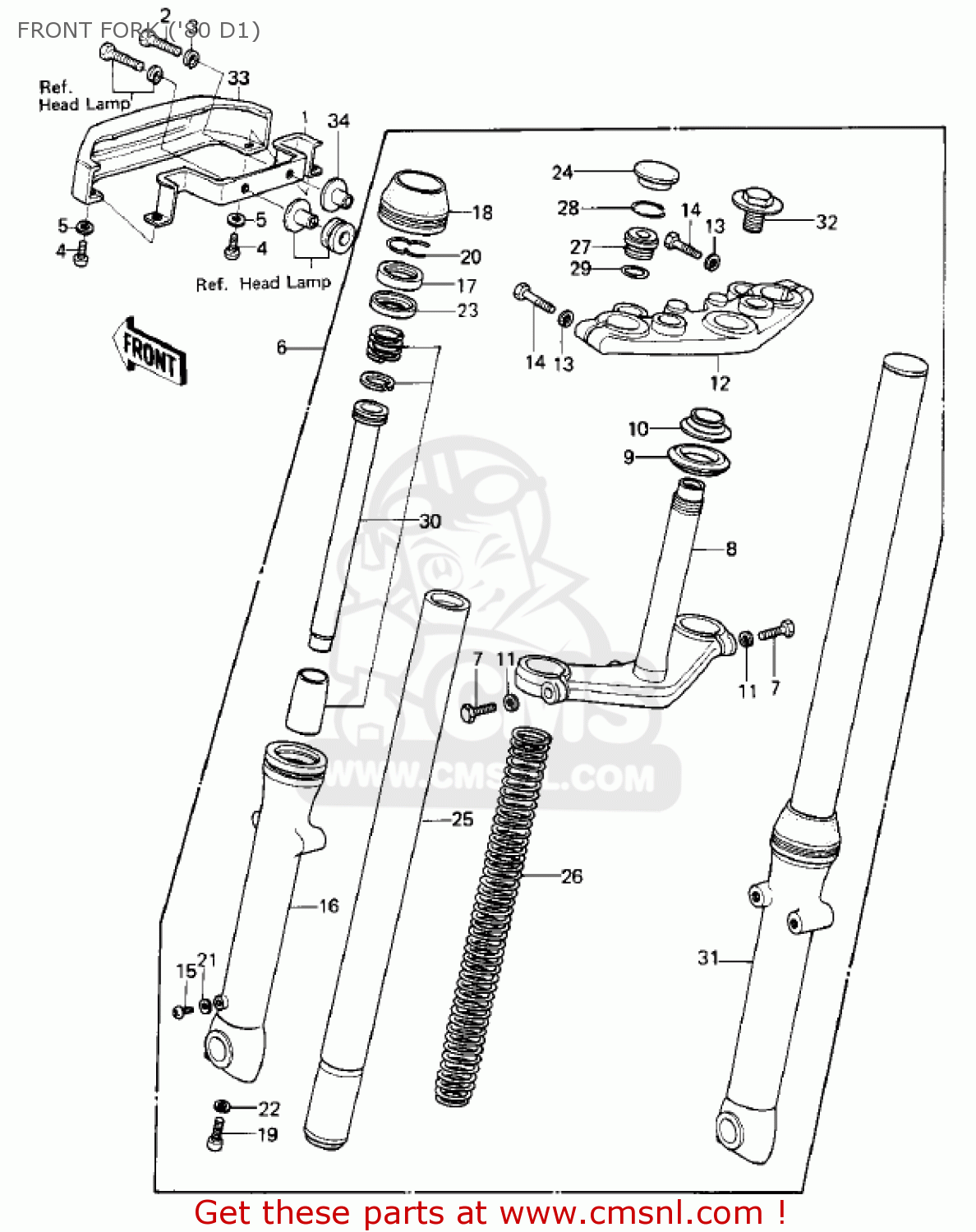

Front fork ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

FRONT FORK ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

FRONT FORK ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

110341698
ref: 1

BRACKET,FORK COVER

€ 8.00

2

112G0625
ref: 2

BOLT-UPSET,6X25

€ 4.00

3

461F0600
ref: 3

WASHER-SPRING,6MM

€ 0.50

4

220B0410
ref: 4

SCREW-PAN-CROS

€ 2.00

5

410B0400
ref: 5

WASHER-PLAIN-SMALL,4M

€ 0.50

6

440011114
ref: 6

FRONT FORK

€ 640.00

7

920011252
ref: 7

BOLT,HEX HEAD,10X35

€ 3.50

8

440371036
ref: 8

STEM,STEERING

€ 208.00

9

44010027
ref: 9

SEAL,STEERING STEM

€ 7.50

10

92047010
ref: 10

CONE-STERNG BERG LOW

€ 10.00

11

461F1000
ref: 11

WASHER-SPRING,10MM

€ 0.50

12

44039078
ref: 12

HOLDER-FORK UPPER

€ 250.50

13

461F0800
ref: 13

WASHER-SPRING,8MM

€ 0.50

14

920011063
ref: 14

BOLT,HEX HEAD,8X40

€ 6.50

15

220B0406
ref: 15

SCREW-PAN-CROS,4X6

€ 2.50

16

440051047
ref: 16

FORK OUTER TUBE,LH

€ 103.00

17

44009028
ref: 17

OIL SEAL, FORK

€ 18.50

18

44010037
ref: 18

DUST SHEILD, FORK

€ 12.50

19

44041078
ref: 19

BOLT, FORK CYLINDER

€ 6.50

20

44044020
ref: 20

CIRCLIP,45MM

€ 9.50

21

44045046
ref: 21

GASKET,FORK DRAIN PLU (NAS)

€ 4.50

22

44045051
ref: 22

GASKET,FORK CYLINDER (NAS)

€ 4.00

23

920261069
ref: 23

SPACER,OUTER TUBE

€ 8.00

24

110121124
ref: 24

CAP,FORK

€ 6.00

25

440131039
ref: 25

PIPE-FORK INNER

€ 193.50

26

440261054
ref: 26

SPRING,FORK

€ 26.50

27

44029022
ref: 27

GUIDE, FORK SPRING

€ 8.00

28

44044023
ref: 28

CIRCLIP

€ 3.50

29

44046025
ref: 29

'O' RING, FORK

€ 4.00

30

440231005
ref: 30

CYLINDER ASSY,FORK

€ 56.50

31

440061047
ref: 31

TUBE,R.H FORK OUTER

€ 109.00

32

920011741
ref: 32

BOLT,STEERING STEM HD

€ 6.50

33

440331042
ref: 33

COVER-FORK

€ 19.50

34

92027251
ref: 34

COLLAR,L=13.1

€ 1.00
