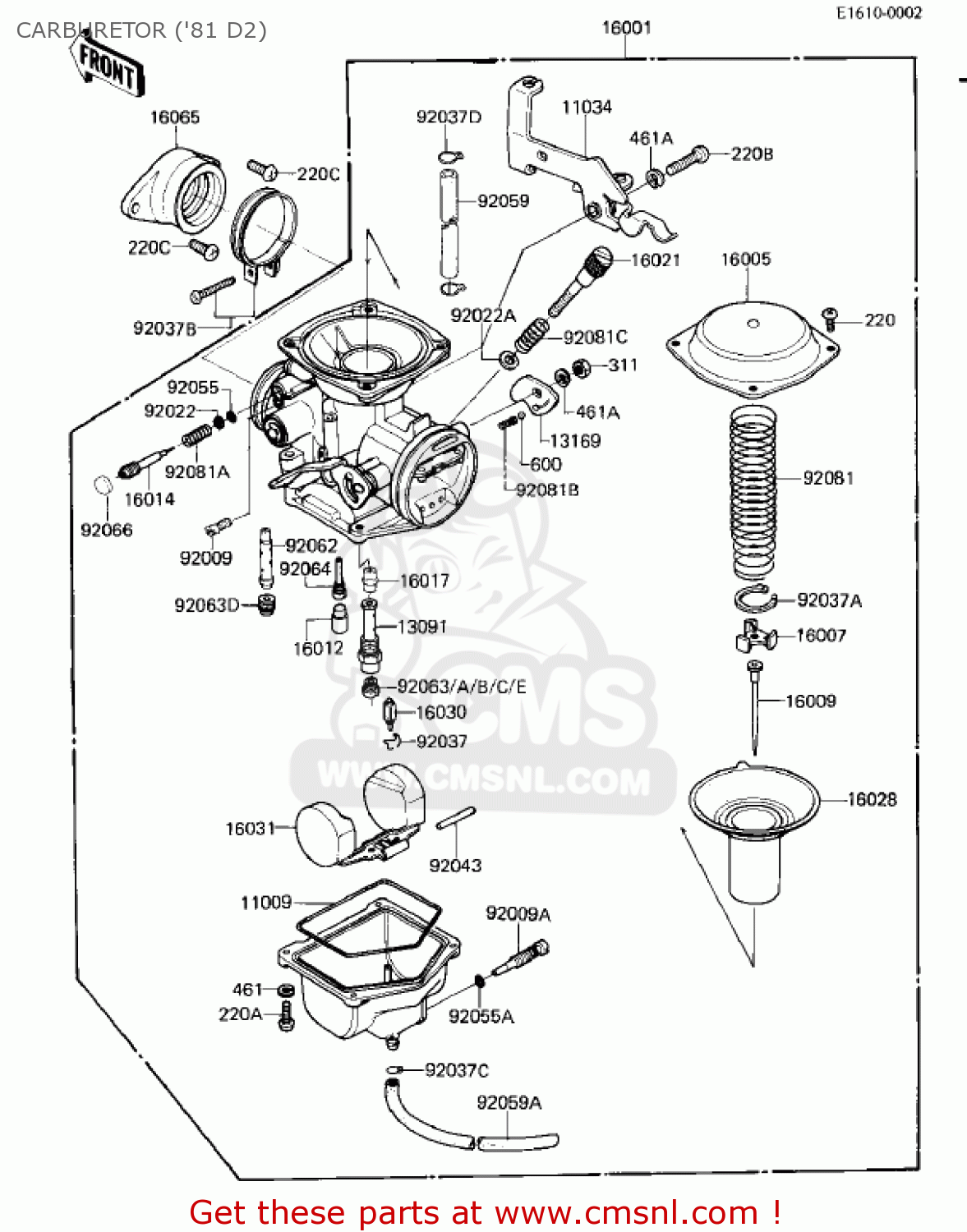

CARBURETOR ('81 D2)

ref

part #

description

quantity

11009

16019024
ref: 11009

O RING,FLOAT CHAMBER

€ 15.00

11034

110341826
ref: 11034

BRACKET,THROTTLE CABL

€ 36.50

13091

130911050
ref: 13091

HOLDER,NEEDLE JET,N41

€ 16.00

13169

131691303
ref: 13169

PLATE,CHOKE LINK

€ 4.50

16001

160011160
ref: 16001

CARBURETOR ASSEMBLY

€ 269.50

16005

160051001
ref: 16005

TOP-CHAMBER,MIXING

€ 23.50

16007

160071001
ref: 16007

SEAT-SPRING,THROTTLE

€ 8.00

16009

160091054
ref: 16009

NEEDLE-JET,N05A

€ 16.50

16012

160121001
ref: 16012

CAP,RUBBER

€ 3.50

16014

160141029
ref: 16014

SCREW-PILOT AIR

€ 13.50

16017

160171052
ref: 16017

JET,NEEDLE

€ 24.50

16021

160211031
ref: 16021

SCREW-THROTTLE STOP

€ 9.50

16028

161261042
ref: 16028

VALVE

€ 214.00

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311001
ref: 16031

FLOAT

€ 38.50

16065

160651028
ref: 16065

HOLDER-CARBURETOR

€ 22.50

92009

920091004
ref: 92009

SCREW, PLUG

€ 5.50

92009A

920091095
ref: 92009A

SCREW,DRAIN

€ 10.00

92022

920221003
ref: 92022

WASHER,PLAIN

€ 2.50

92022A

920221209
ref: 92022A

WASHER,PLANE

€ 2.00

92037

16044007
ref: 92037

CLIP, FLOAT VALVE

€ 4.00

92037A

920371005
ref: 92037A

CLAMP

€ 5.50

92037B

920371021
ref: 92037B

CLAMP,CARBURETOR

€ 2.00

92037C

920371142
ref: 92037C

CLAMP,TUBE

€ 2.50

92037D

920371682
ref: 92037D

CLAMP,TUBE

€ 4.00

92043

920431002
ref: 92043

PIN,FLOAT

€ 3.50

92055

920551002
ref: 92055

O RING,PILOT ADJUST

€ 2.50

92055A

920551053
ref: 92055A

O RING,DRAIN SCREW

€ 3.00

92059

920591001
ref: 92059

HOSE, FUEL INLET

€ 13.50

92059A

920591046
ref: 92059A

TUBE,3.5X6.5X270

€ 9.50

92062

920621001
ref: 92062

NOZZLE,MAIN

€ 15.50

92063

920631001
ref: 92063
(RACING USE ONLY)

JET-MAIN,#95

€ 10.00

92063A

920631004
ref: 92063A
(RACING USE ONLY)

JET-MAIN,#92

€ 10.00

92063B

920631005
ref: 92063B

JET-MAIN,#98

€ 10.00

92063C

920631008
ref: 92063C
(RACING USE ONLY)

JET-MAIN,#100

€ 9.00

92063D

920631050
ref: 92063D

JET-MAIN,PRI,#68

€ 10.00

92063E

920631090
ref: 92063E
(RACING USE ONLY)

MAIN JET,2ND,#102

€ 10.00

92064

920641001
ref: 92064

JET-PILOT,#35

€ 14.00

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811001
ref: 92081

SPRING

€ 10.00

92081A

920811002
ref: 92081A

SPRING,PIROT ADJ SCRW

€ 3.50

92081B

920811004
ref: 92081B

SPRING

€ 3.00

92081C

920811062
ref: 92081C

SPRING,STOP SCREW

€ 4.50

220

220B0408
ref: 220

SCREW-PAN-CROS

€ 0.50

220A

220B0412
ref: 220A

SCREW-PAN CROS 4X12

€ 0.50

220B

220B0520
ref: 220B

SCREW-PAN-CROS

€ 0.50

220C

220B0614
ref: 220C

SCREW-PAN HEAD,6X14

€ 2.00

311

311B0500
ref: 311

NUT-HEX

€ 0.50

461

461F0400
ref: 461

WASHER-SPRING,4MM

€ 0.50

461A

461F0500
ref: 461A

WASHER-SPRING,5MM

€ 0.50

600

600A0400
ref: 600

BALL-STEEL,1/8

€ 2.00
