GEAR CHANGE MECHANISM ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

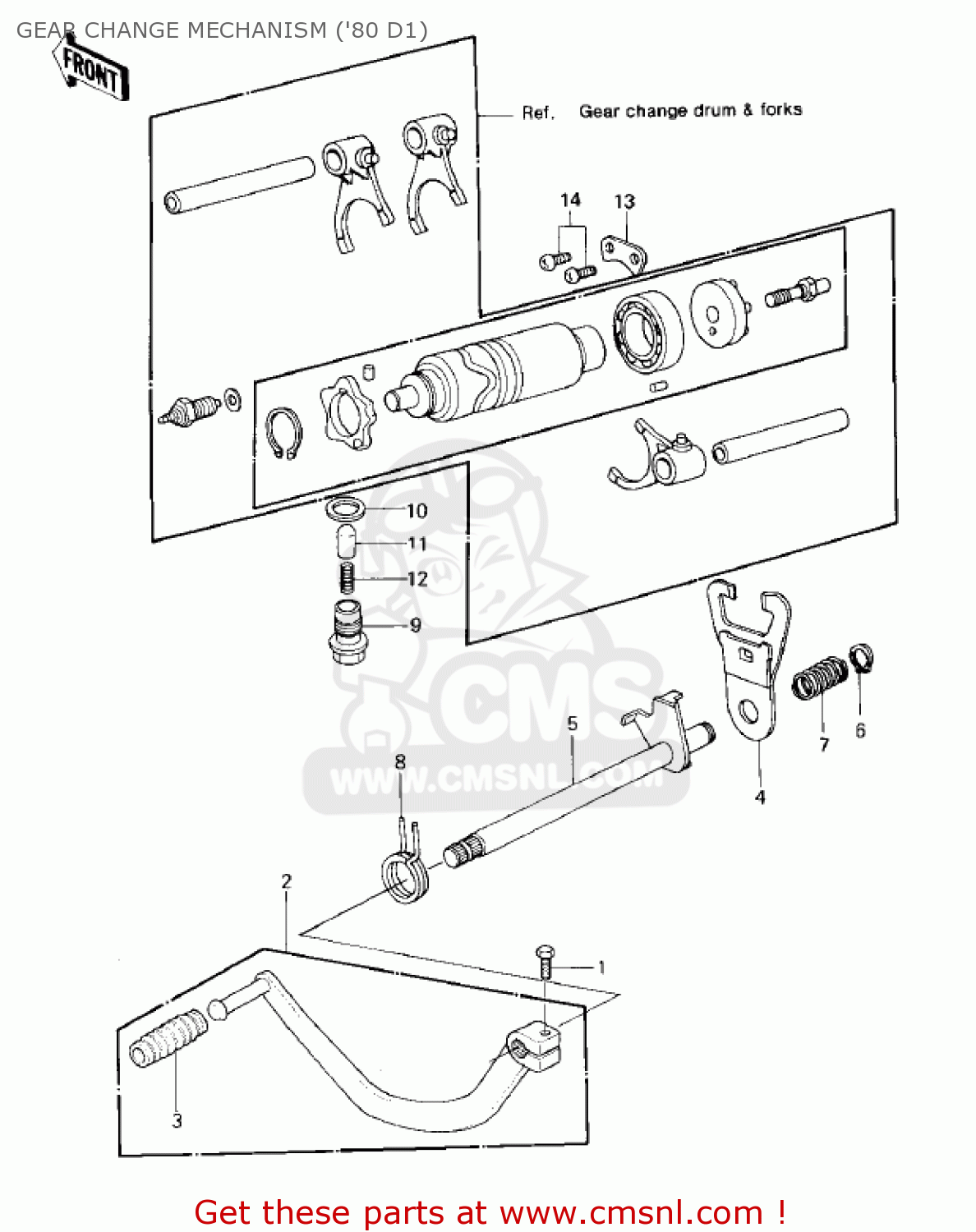

Gear change mechanism ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

112G0620
ref: 1

BOLT 6X20

€ 1.00

132421020
ref: 2

LEVER ASSY,GEAR SHIFT

€ 43.50

921601036
ref: 3

DAMPER,CHANGE PEDAL

€ 3.50

13161044
ref: 4

LEVER-COMP-CHANGE SHA

€ 40.50

131611013
ref: 5

LEVER-COMP-CHANGE SHA

€ 58.00

480J1300
ref: 6

CIRCLIP-TYPE-C,13MM

€ 2.50

92081149
ref: 7

SPRING, COIL

€ 3.00

92083028
ref: 8

SPRING,CHG PEDL RTRN

€ 9.50

92001182
ref: 9

BOLT,NEUTRAL POSITION

€ 12.00

92022324
ref: 10

WASHER,16.5X23X2

€ 3.00

92043131
ref: 11

PIN,NEUTRAL POSITIONG

€ 5.00

92081112
ref: 12

SPRING

€ 4.00

13169014
ref: 13

PLATE,GEAR CHANGE DRU

€ 3.00

220B0614
ref: 14

SCREW-PAN HEAD,6X14

€ 2.00
