FENDERS ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

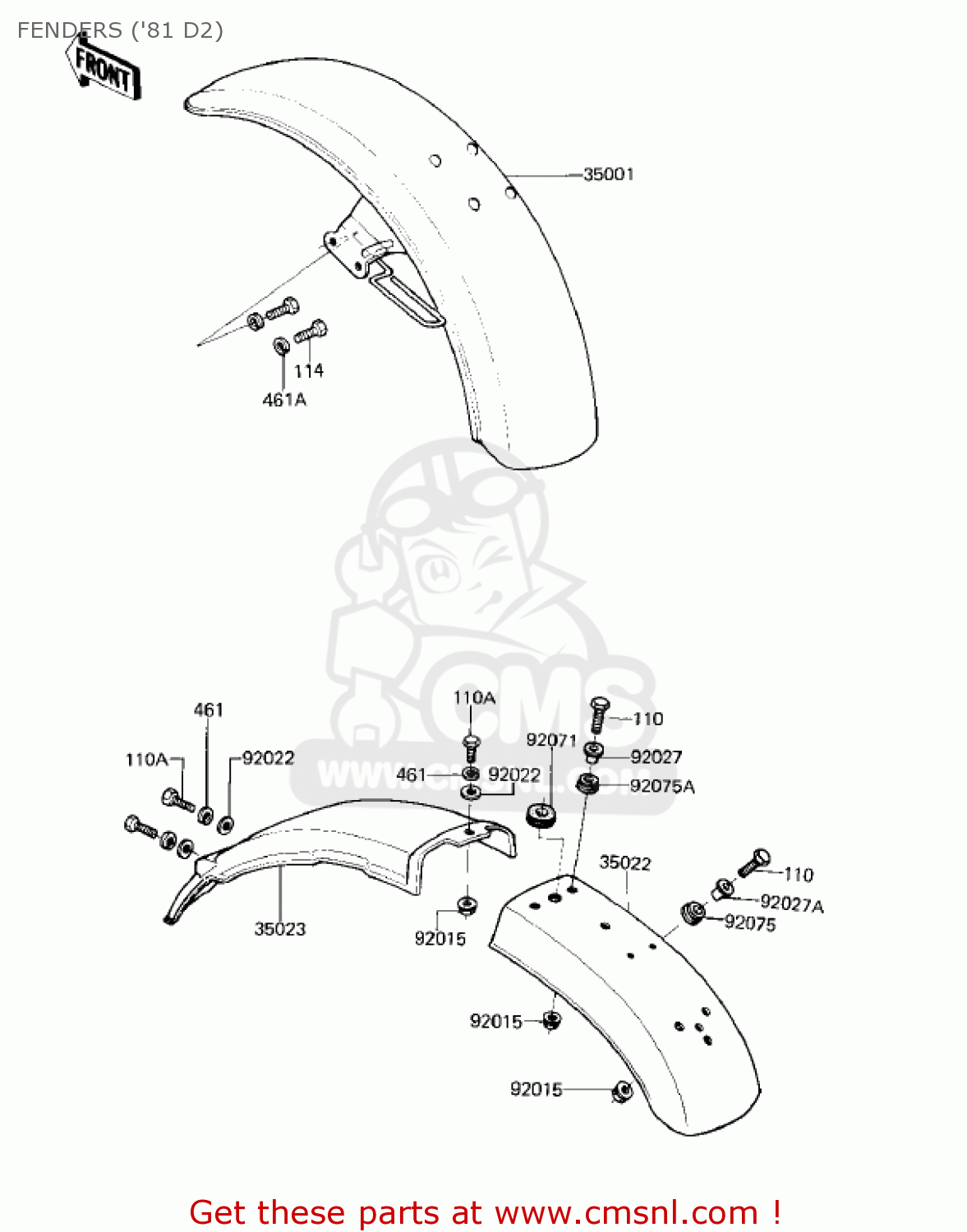

Fenders ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

35001

350011026
ref: 35001

FRONT FENDER

€ 135.50

35022

350221051
ref: 35022

FENDER-COMP-REAR,RR

€ 133.50

35023

350231041
ref: 35023

FENDER-REAR,FR

€ 47.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92022

92022125
ref: 92022

WASHER,6.5X20X1.6

€ 1.00

92027

92027194
ref: 92027

COLLAR

€ 3.50

92027A

92027251
ref: 92027A

COLLAR,L=13.1

€ 1.00

92071

92071099
ref: 92071

GROMMET, REAR FENDER

€ 3.00

92075

92075209
ref: 92075

DAMPER RUBBER

€ 3.00

92075A

92075277
ref: 92075A

DAMPER

€ 1.00

110

112B0622
ref: 110

BOLT, 6X22

€ 2.50

110A

112G0616
ref: 110A

BOLT UPSET,6X16

€ 1.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

461

461F0600
ref: 461

WASHER-SPRING,6MM

€ 0.50

461A

461F0800
ref: 461A

WASHER-SPRING,8MM

€ 0.50
