CYLINDER HEAD/CYLINDER ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

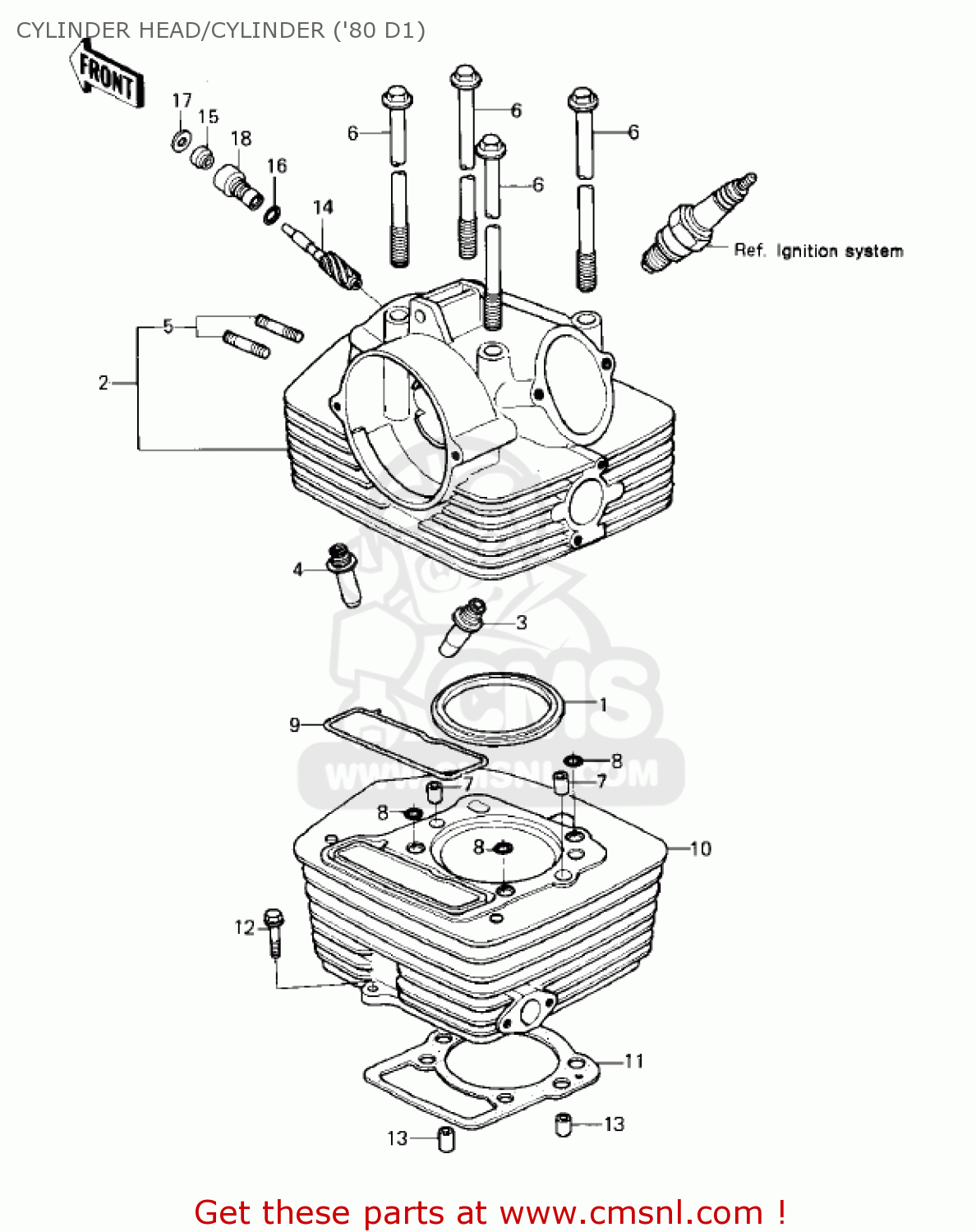

Cylinder head/cylinder ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

CYLINDER HEAD/CYLINDER ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

CYLINDER HEAD/CYLINDER ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

110041002
ref: 1

GASKET,CYLINDER HEAD (MCA)

€ 30.00

2

110025013
ref: 2

CYLINDER HEAD

€ 429.00

3

12013003
ref: 3

GUIDE-VALVE,INTAKE

€ 24.00

4

490021010
ref: 4

GUIDE-VALVE,EXHAUST

€ 20.50

5

920041069
ref: 5

STUD,8X30

€ 4.50

6

92003220
ref: 6

BOLT, 8X233

€ 12.00

7

920431037
ref: 7

PIN,DOWEL,10X8.2X14

€ 0.50

8

920551149
ref: 8

RING-O,10MM

€ 4.00

9

92055105
ref: 9

RING-O,CHAIN TUNNEL

€ 23.50

10

110061005
ref: 10

CYLINDER

€ 270.00

11

11009043
ref: 11

GASKET, CYLINDER BASE (MCA)

€ 9.00

12

92003202
ref: 12

BOLT

€ 4.00

13

920431037
ref: 13

PIN,DOWEL,10X8.2X14

€ 0.50

14

13223012
ref: 14

GEAR, TACHOMETER

€ 30.50

15

92050075
ref: 15

OIL SEAL,TACHOMETER

€ 7.50

16

920551149
ref: 16

RING-O,10MM

€ 4.00

17

92065104
ref: 17

GASKET,TACHO GEAR (NAS)

€ 3.50

18

92087011
ref: 18

BUSHING-METER GEAR,TA

€ 12.50
