SWING ARM/SHOCK ABSORBERS ('81 D

KZ250D2 CSR 1981 USA CANADA / MPH KPH

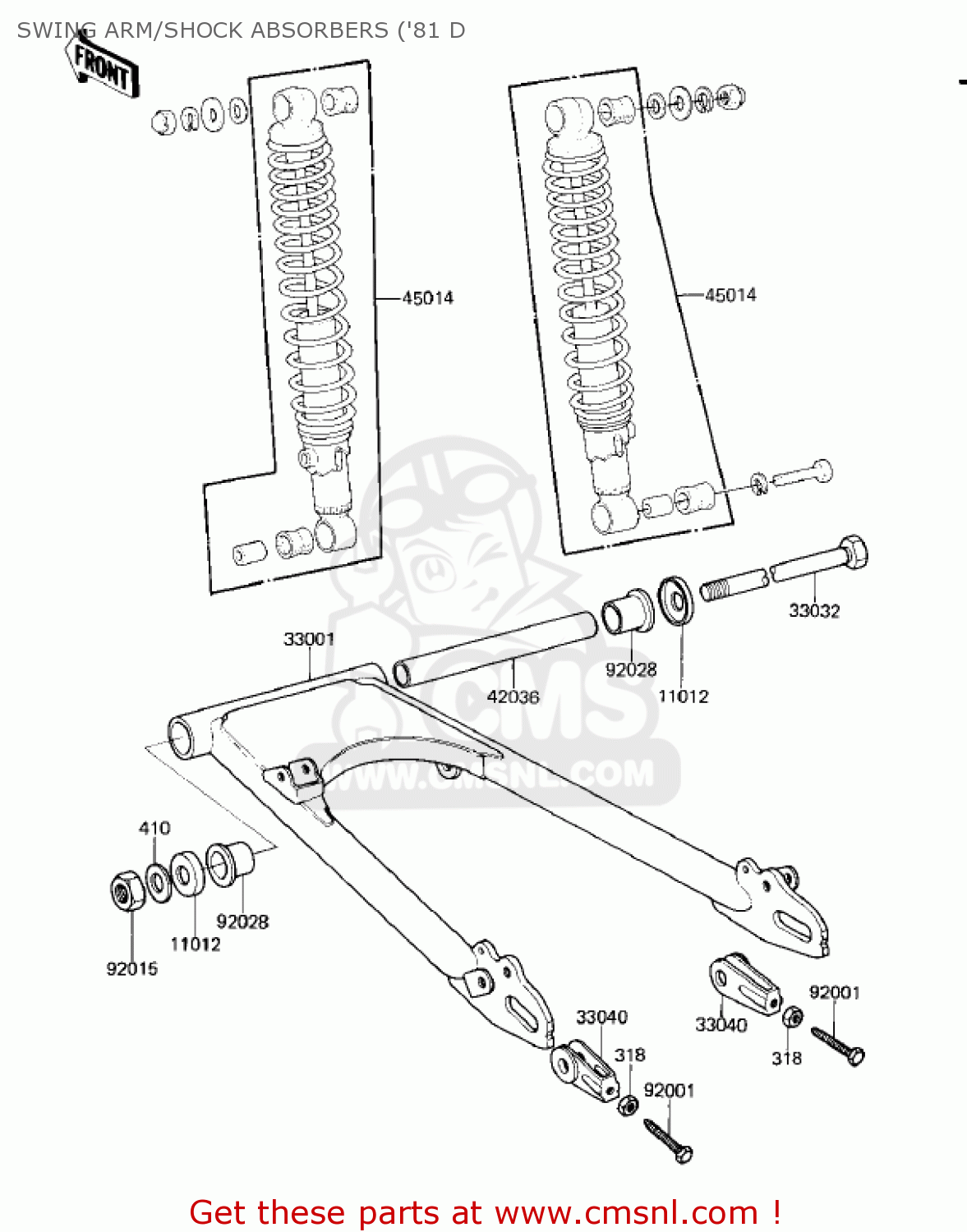

Swing arm/shock absorbers ('81 d diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

SWING ARM/SHOCK ABSORBERS ('81 D KZ250D2 CSR 1981 USA CANADA / MPH KPH

SWING ARM/SHOCK ABSORBERS ('81 D KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

11012

33035010
ref: 11012

CAP,SWING ARM

€ 9.00

33001

330011049
ref: 33001

SWING ARM

€ 199.00

33032

33032037
ref: 33032

SHAFT-SWING ARM,L=237

€ 33.50

33040

330401001
ref: 33040

ADJUSTER-CHAIN

€ 15.50

42036

420361004
ref: 42036

SLEEVE,SWING ARM

€ 36.00

45014

450141090
ref: 45014

SHOCK ABSORBER,REAR

€ 271.00

92001

920011399
ref: 92001

BOLT,8X50

€ 6.00

92015

92019011
ref: 92015

NUT,LOCK,14MM

€ 6.00

92015A

92020003
ref: 92015A

NUT-SHOCK ABSORBER

€ 4.00

92022

92022176
ref: 92022

WASHER,10X22X3.2

€ 3.00

92027

45016008
ref: 92027

BUSHING,SHOCK ABSORB

€ 6.50

92028

33033009
ref: 92028

BUSHING,SWING ARM

€ 57.00

92075

45017012
ref: 92075

BUSHING A,SHOK AB RUB

€ 10.50

92075A

45017015
ref: 92075A

BUSHING,SHCK ABS RUB

€ 6.50

113

113N1035
ref: 113

BOLT-HEX HEAD,10X35

€ 6.00

318

318B0800
ref: 318

NUT,8MM

€ 0.50

410

410B1400
ref: 410

410B1400

411

411B1000
ref: 411

WASHER-PLAIN,10MM

€ 0.50

461

461F1000
ref: 461

WASHER-SPRING,10MM

€ 0.50
