IGNITION SWITCH/LOCK ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

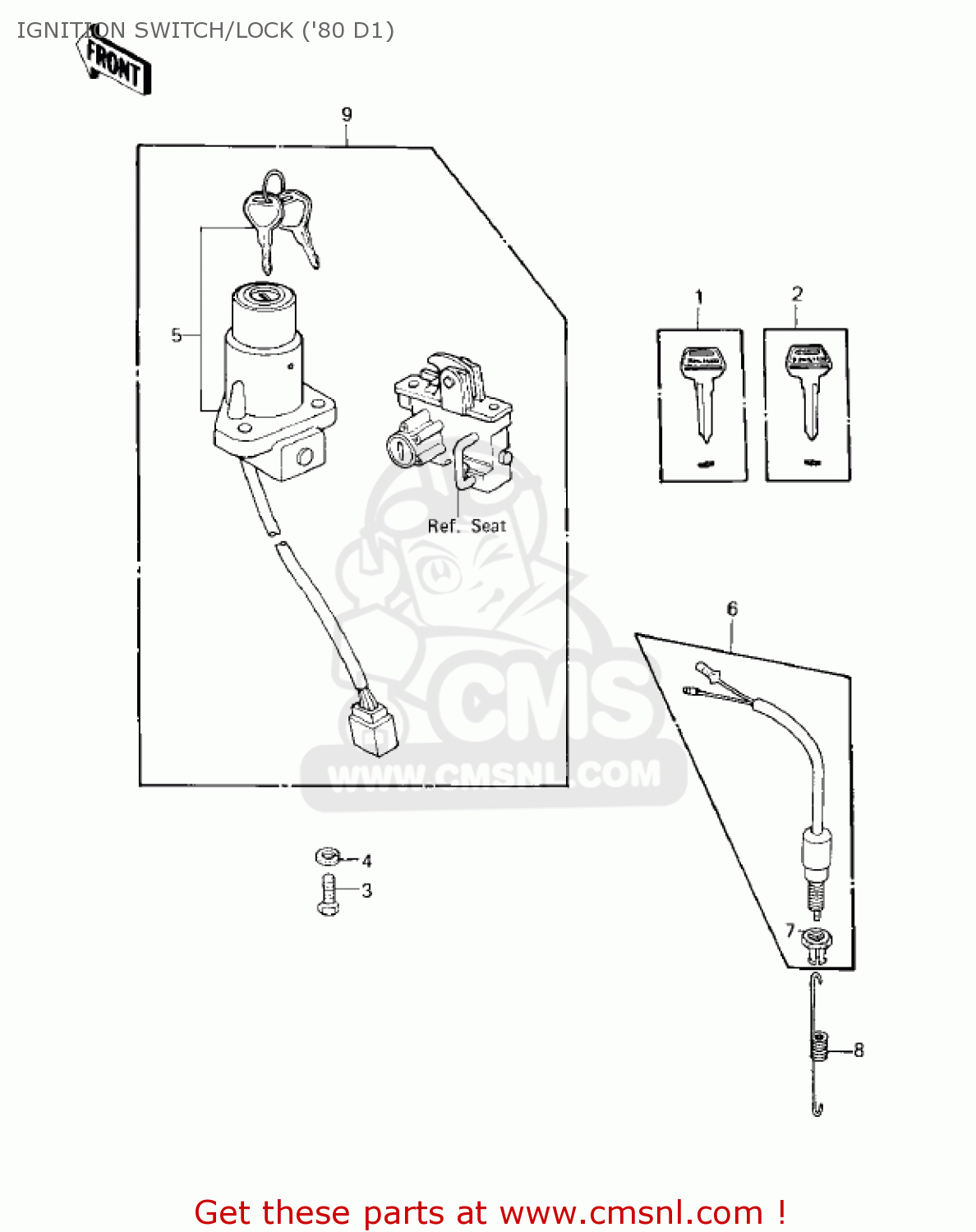

Ignition switch/lock ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

IGNITION SWITCH/LOCK ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

IGNITION SWITCH/LOCK ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

270081034
ref: 1

KEY,BLANK

€ 13.00

2

270081035
ref: 2

KEY,BLANK

€ 12.50

3

112G0616
ref: 3

BOLT UPSET,6X16

€ 1.00

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

270051031
ref: 5

SWITCH ASSY,IGNITION

€ 178.00

6

27010025
ref: 6

SWITCH,BRAKE LAMP

€ 18.50

7

27037001
ref: 7

NUT,BRAKE LAMP SWICH

€ 18.50

8

27011017
ref: 8

SPRING,BRK LIGHT SW

€ 6.50

9

270045068
ref: 9

LOCK ASSY

€ 176.00
