ENGINE COVERS ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

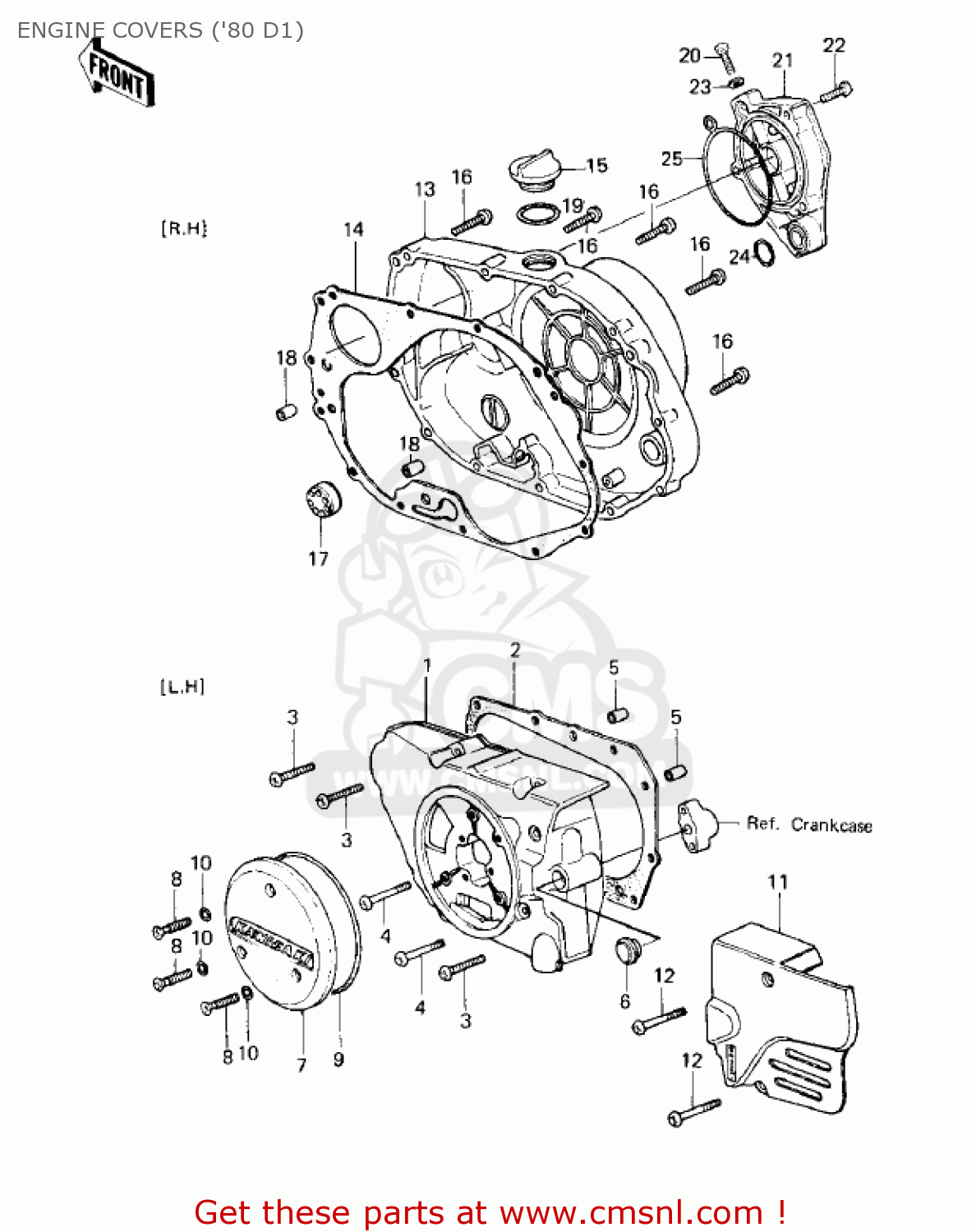

Engine covers ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

ENGINE COVERS ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

ENGINE COVERS ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

140310972H
ref: 1

COVER, L.H ENGINE

€ 106.00

2

14045031
ref: 2

GASKET,L.H ENGINE COV (MCA)

€ 19.00

3

220B0630
ref: 3

SCREW-PAN HEAD,6X30

€ 2.50

4

220B0655
ref: 4

SCREW-PAN HEAD,6X55

€ 2.50

5

92042007
ref: 5

PIN-DOWEL

€ 4.00

6

92066065
ref: 6

PLUG,CLUTCH PUSH ROD,

€ 2.50

7

140251107
ref: 7

COVER,GENERATOR

€ 27.00

8

222E0625
ref: 8

SCREW,OVL CNTSK,6X25

€ 1.50

9

92055108
ref: 9

RING-O,GENERATOR COVE

€ 7.00

10

92055109
ref: 10

RING-O,5.28X1.78

€ 2.50

11

140260372H
ref: 11

COVER, CHAIN

€ 45.00

12

220B0655
ref: 12

SCREW-PAN HEAD,6X55

€ 2.50

13

140321030
ref: 13

COVER,R.H ENGINE

€ 34.00

14

110091235
ref: 14

GASKET,ENGINE COV,RH (MCA)

€ 20.50

15

16115013
ref: 15

PLUG-OIL FILLER

€ 13.50

16

220B0630
ref: 16

SCREW-PAN HEAD,6X30

€ 2.50

17

52015004
ref: 17

GAUGE,OIL LEVEL

€ 27.00

18

92042007
ref: 18

PIN-DOWEL

€ 4.00

19

92055049
ref: 19

'0'RING,31MM

€ 2.50

20

110B0608
ref: 20

BOLT-HEX HEAD,6X8

€ 0.50

21

140251190
ref: 21

COVER,OIL FILTER

€ 29.00

22

220B0625
ref: 22

SCREW-PAN HEAD,6X25

€ 1.50

23

92022304
ref: 23
ALUMINUM

WASHER,PLAIN

€ 2.50

24

92055098
ref: 24

RING-O

€ 5.50

25

920551048
ref: 25

RING-O,FILTER COVER

€ 9.50
