HANDLEBAR ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

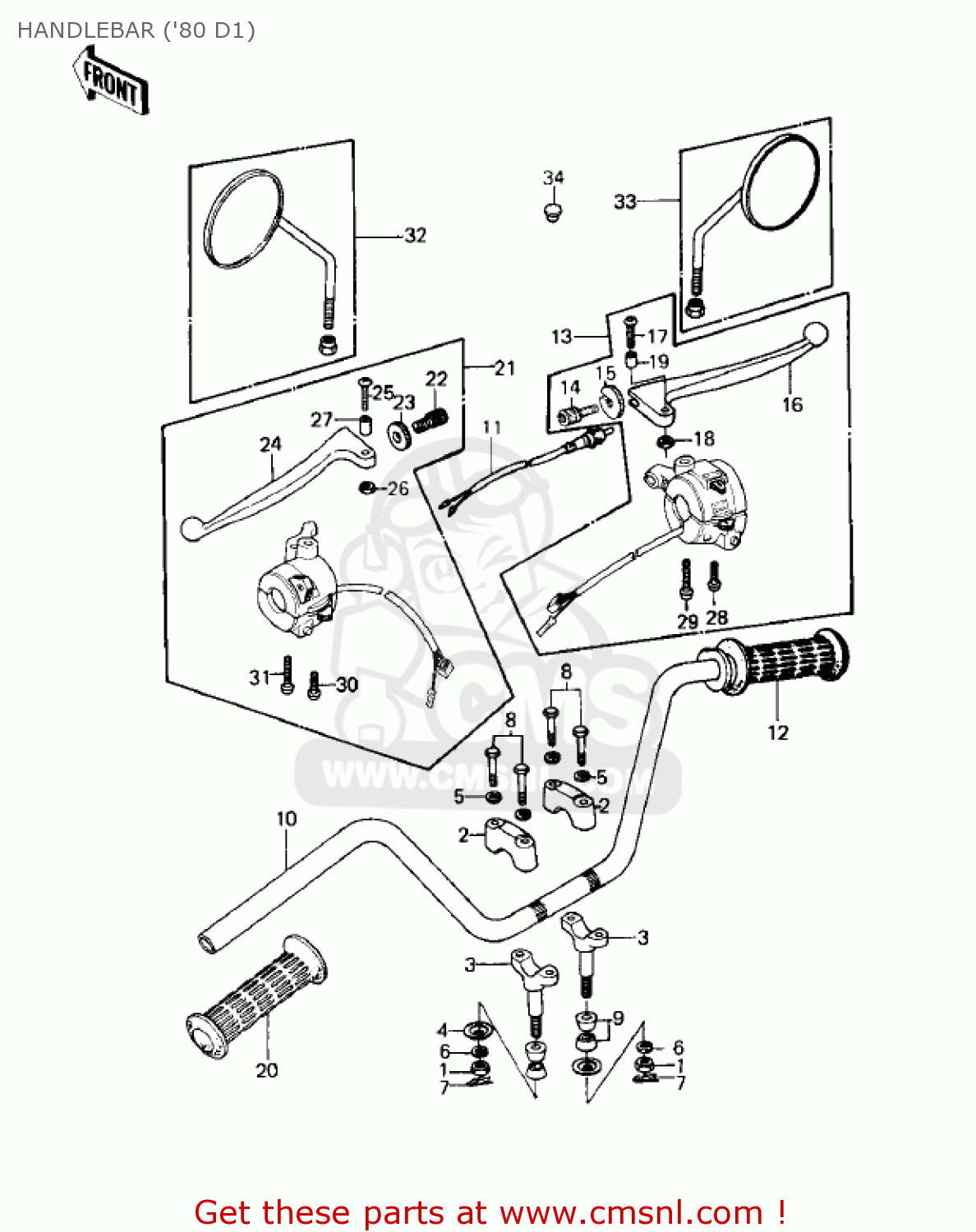

Handlebar ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

HANDLEBAR ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

HANDLEBAR ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

314B1000
ref: 1

NUT,10MM

€ 0.50

2

46012008
ref: 2

HOLDER-HANDLE,UPP

€ 23.00

3

46012010
ref: 3

HOLDER-HANDLE,LWR

€ 20.00

4

46016003
ref: 4

PLATE,HANDLE HOLDER

€ 3.50

5

461F0800
ref: 5

WASHER-SPRING,8MM

€ 0.50

6

461F1000
ref: 6

WASHER-SPRING,10MM

€ 0.50

7

554A0800
ref: 7

PIN-SNAP,8MM

€ 1.00

8

920011405
ref: 8

BOLT,8X38

€ 10.00

9

92075039
ref: 9

DAMPER RUBBER-HANDLE

€ 3.00

10

460031045
ref: 10

HANDLE

€ 109.50

11

27021004
ref: 11

SWITCH,FR BRAKE LAMP

€ 23.00

12

46019041
ref: 12

GRIP-ASSY,THROTTLE

€ 28.00

13

460911084
ref: 13

HOUSING ASSEMBLY,RH

€ 88.50

14

46055003
ref: 14

SCREW-CABLE ADJUST

€ 11.50

15

46056005
ref: 15

NUT-LOCK

€ 6.00

16

46058019
ref: 16

LEVER-GRIP,FRONT BRAK

€ 16.50

17

220B0522
ref: 17

SCREW-PAN-CROS

€ 0.50

18

92019014
ref: 18

NUT-LOCK,5M/M

€ 2.50

19

920271042
ref: 19

COLLAR, LEVER

€ 2.00

20

46075028
ref: 20

GRIP,LH

€ 32.00

21

460911085
ref: 21

HOUSING ASSEMBLY,LH

€ 89.00

22

46055003
ref: 22

SCREW-CABLE ADJUST

€ 11.50

23

46056005
ref: 23

NUT-LOCK

€ 6.00

24

46092024
ref: 24

LEVER-GRIP,CLUTCH

€ 10.50

25

220B0522
ref: 25

SCREW-PAN-CROS

€ 0.50

26

92019014
ref: 26

NUT-LOCK,5M/M

€ 2.50

27

920271042
ref: 27

COLLAR, LEVER

€ 2.00

28

220B0530
ref: 28

SCREW-PAN-CROS

€ 2.00

29

920091017
ref: 29

SCREW,PAN HEAD,5X48

€ 2.50

30

220B0525
ref: 30

SCREW-PAN-CROS,5X25

€ 2.50

31

920091018
ref: 31

SCREW,PAN HEAD,5X38

€ 2.00

32

560011055
ref: 32

MIRROR-ASSY,LH

€ 61.50

33

560011054
ref: 33

REAR VIEW MIRROR,RH

€ 43.50

34

92102009
ref: 34

CAP-RR VIEW MIRROR

€ 3.00
