SEAT ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

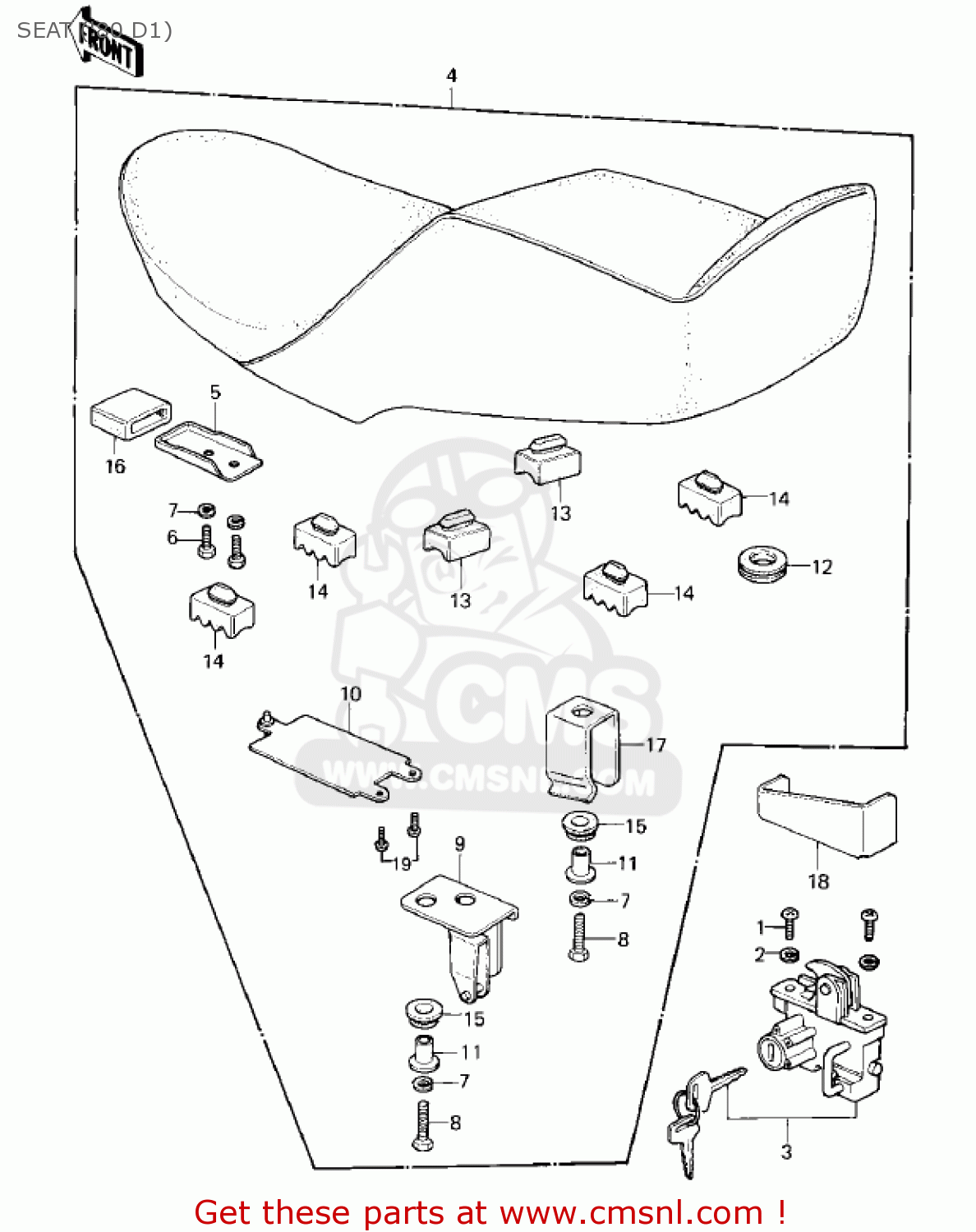

Seat ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

SEAT ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

SEAT ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

220B0614
ref: 1

SCREW-PAN HEAD,6X14

€ 2.00

2

461F0600
ref: 2

WASHER-SPRING,6MM

€ 0.50

3

270165028
ref: 3

LOCK-ASSY,SEAT&HELMET

€ 60.00

4

530011121
ref: 4

SEAT ASSEMBLY

€ 304.00

5

110341135
ref: 5

BRACKET,SEAT

€ 14.00

6

112G0612
ref: 6

BOLT-UPSET

€ 2.50

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

112G0625
ref: 8

BOLT-UPSET,6X25

€ 4.00

9

270121015
ref: 9

HOOK,SEAT

€ 10.00

10

32099011
ref: 10

CASE,MANUAL

€ 11.50

11

920271062
ref: 11

COLLAR,SEAT

€ 4.50

12

92071056
ref: 12

GROMMET

€ 2.50

13

92075099
ref: 13

DAMPER RUBBER

€ 3.50

14

920751007
ref: 14

DAMPER

€ 5.00

15

920751123
ref: 15

DAMPER,RUBBER

€ 3.00

16

92075219
ref: 16

DAMPER,SEAT

€ 4.50

17

920811205
ref: 17

SPRING,SEAT

€ 12.50

18

550201042
ref: 18

GUARD,SEAT

€ 6.50

19

920091043
ref: 19

SCREW,TAPPING,5X8

€ 3.00
