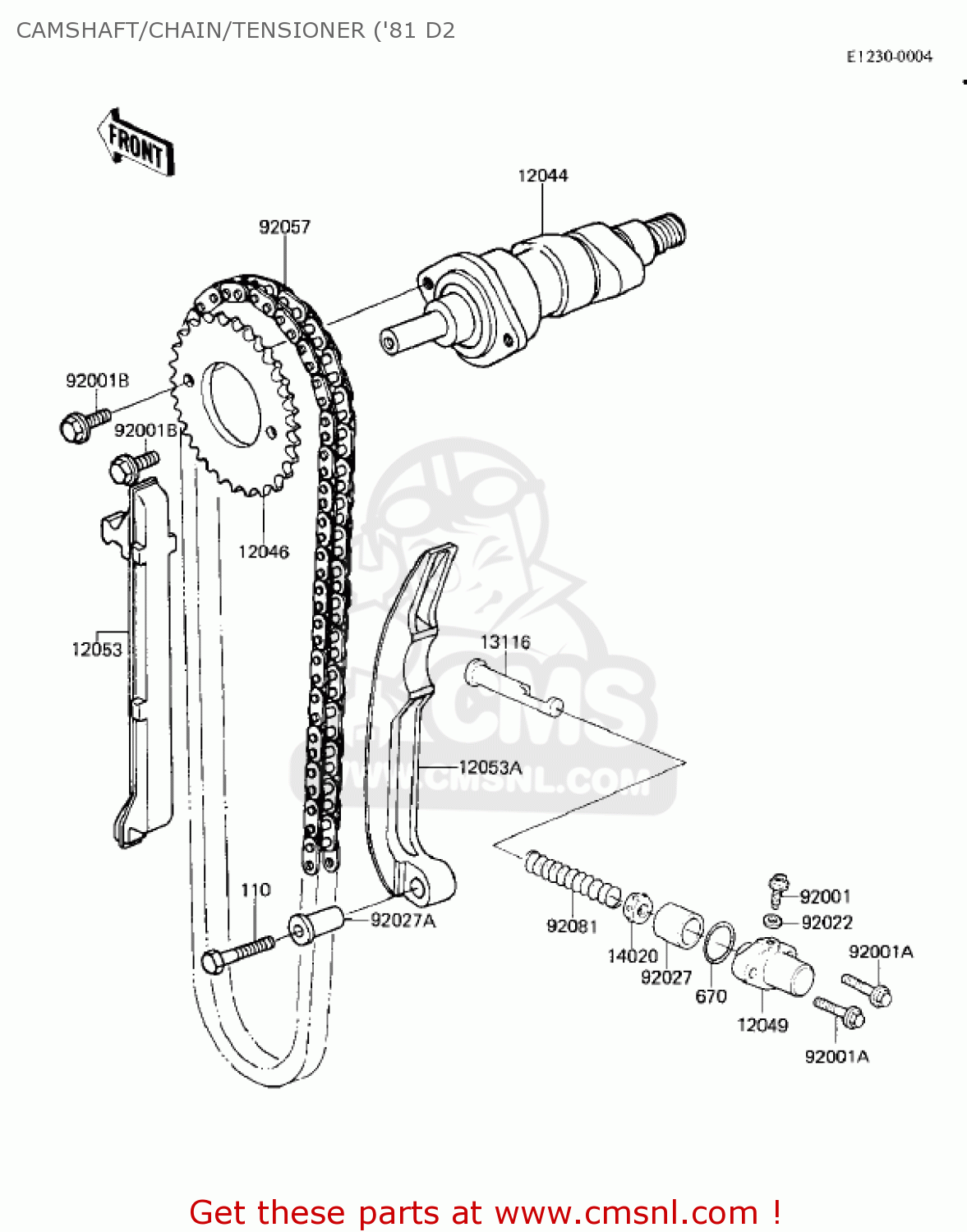

CAMSHAFT/CHAIN/TENSIONER ('81 D2

KZ250D2 CSR 1981 USA CANADA / MPH KPH

Camshaft/chain/tensioner ('81 d2 diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

CAMSHAFT/CHAIN/TENSIONER ('81 D2 KZ250D2 CSR 1981 USA CANADA / MPH KPH

CAMSHAFT/CHAIN/TENSIONER ('81 D2 KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

12044

120441028
ref: 12044

CAMSHAFT-VALVE

€ 206.00

12046

120461007
ref: 12046

SPROCKET,CAM SHAFT

€ 64.00

12049

120491055
ref: 12049

TENSIONER,CAM CHAIN

€ 32.50

12053

12053023
ref: 12053

GUIDE-CHAIN,CAM

€ 22.00

12053A

12053024
ref: 12053A

GUIDE-CHAIN,CAM

€ 33.00

13116

131161019
ref: 13116

ROD-PUSH,TENSIONER

€ 10.00

14020

140201002
ref: 14020

RETAINER,TENSIONER

€ 10.50

92001

920011155
ref: 92001

BOLT,TENSIONER ADJUST

€ 3.50

92001A

920011352
ref: 92001A

BOLT,FLANGED,6X22

€ 2.50

92001B

92003208
ref: 92001B

BOLT,SPROCKET FITTING

€ 2.50

92022

92022077
ref: 92022

WASHER,6.1X12X1

€ 0.50

92027

920271273
ref: 92027

COLLAR,TENSIONER

€ 20.50

92027A

92027155
ref: 92027A

COLLAR,L=17.6

€ 4.50

92057

21070013
ref: 92057

CHAIN,CAMSHAFT,BF05TX

€ 118.50

92081

920811005
ref: 92081

SPRING,THR.STOP SCREW

€ 8.50

110

112G0630
ref: 110

BOLT-UPSET

€ 1.00

670

670B2022
ref: 670

O RING,22MM

€ 3.00
