FOOTRESTS ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

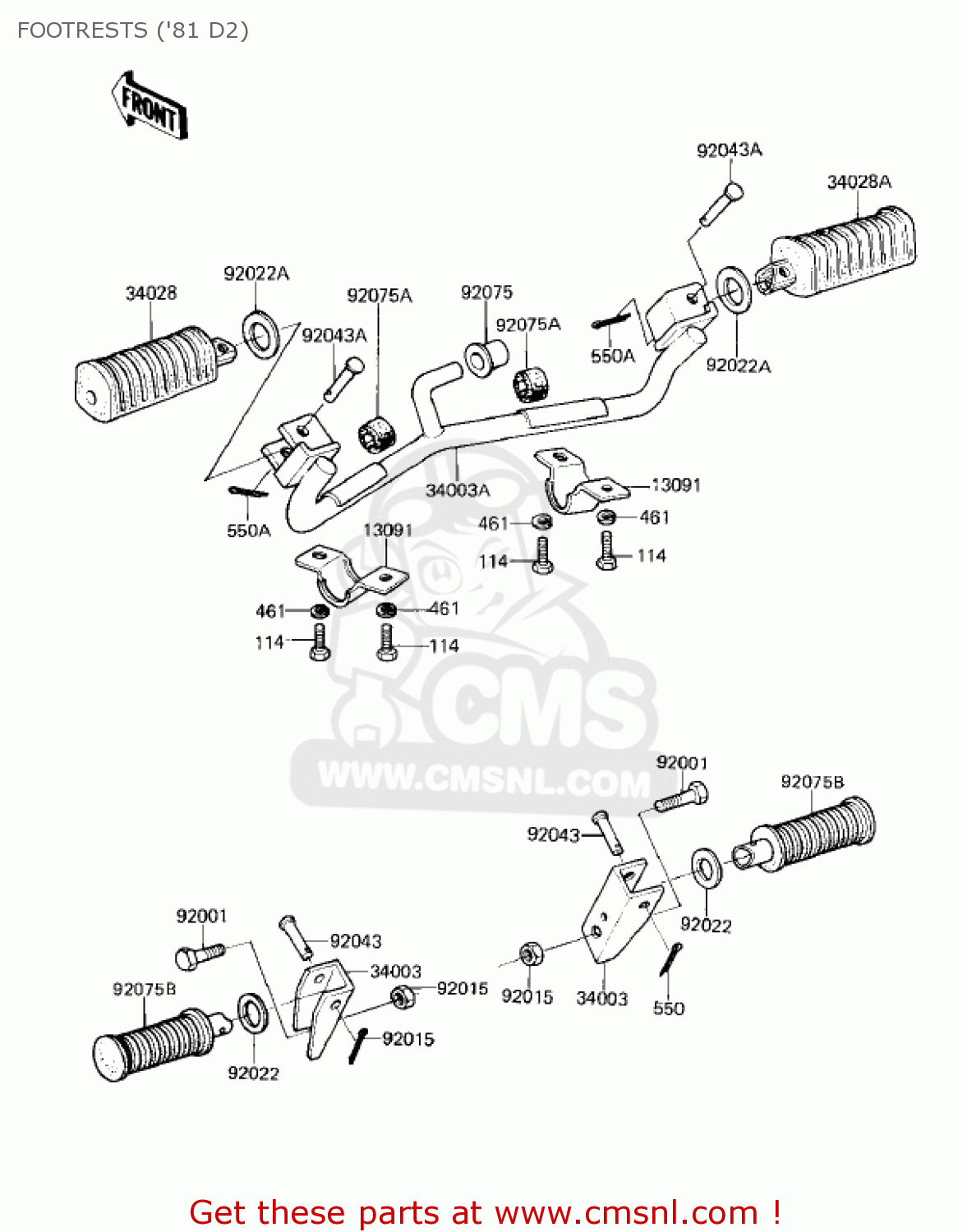

Footrests ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

FOOTRESTS ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

FOOTRESTS ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

13091

130911003
ref: 13091

HOLDER,FOOTREST

€ 10.50

34003

340031025
ref: 34003

HOLDER-STEP,RR

€ 18.00

34003A

340031058
ref: 34003A

BAR,FOOT REST

€ 28.50

34028

340271106
ref: 34028

STEP-ASSY,FR,LH

€ 29.00

34028A

340271107
ref: 34028A

STEP-ASSY,FR,RH

€ 29.00

92001

92003213
ref: 92001

BOLT, HEX HEAD, 10X40

€ 3.00

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92022

92022199
ref: 92022

WASHER,20X30X2.3

€ 5.00

92022A

92022250
ref: 92022A

WASHER,PLAIN

€ 3.00

92043

920431464
ref: 92043

PIN

€ 5.50

92043A

92043115
ref: 92043A

PIN,FOOTREST BAR FIT

€ 6.50

92075

920751029
ref: 92075

DAMPER

€ 3.50

92075A

92075306
ref: 92075A

DAMPER

€ 3.50

92075B

92076027
ref: 92075B

DAMPER,STEP,RR

€ 19.00

114

115G0816
ref: 114

BOLT-HEX,HEAD 8X16

€ 0.50

461

461F0800
ref: 461

WASHER-SPRING,8MM

€ 0.50

550

550D2012
ref: 550

PIN,COTTER,2.0X12

€ 0.50

550A

550D2515
ref: 550A

PIN COTTER,295X15

€ 0.50
