OIL PUMP/OIL FILTER ('80 D1)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

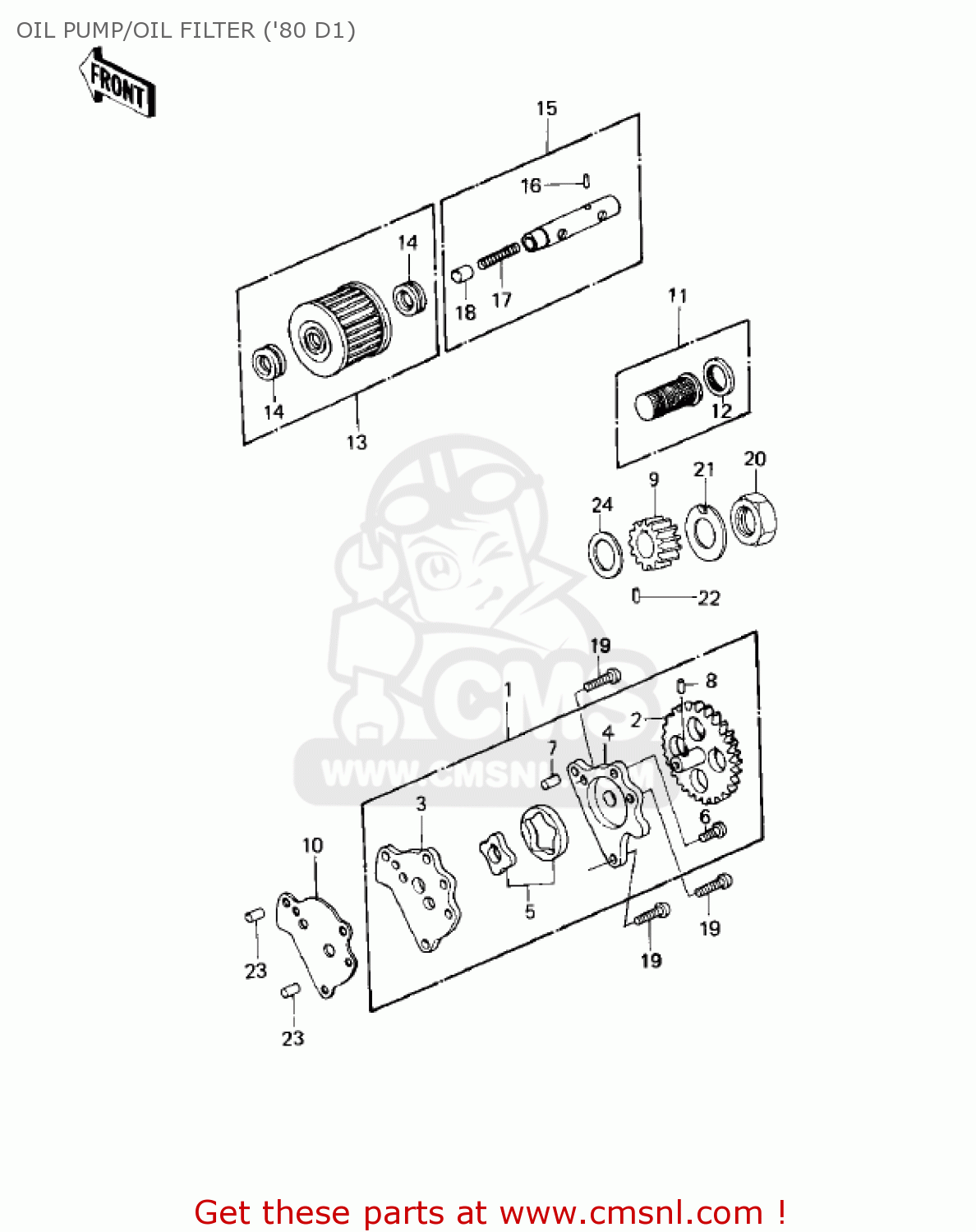

Oil pump/oil filter ('80 d1) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

OIL PUMP/OIL FILTER ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

OIL PUMP/OIL FILTER ('80 D1) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

1

16082066
ref: 1

PUMP-ASSY-OIL

€ 184.50

2

16085026
ref: 2

GEAR, OIL PUMP

€ 18.00

3

16141006
ref: 3

CASE,OIL PUMP

€ 18.50

4

16142006
ref: 4

COVER-PUMP,OIL

€ 16.50

5

161545001
ref: 5

ROTOR, OIL PUMP

€ 19.00

6

220B0614
ref: 6

SCREW-PAN HEAD,6X14

€ 2.00

7

551A0608
ref: 7

PIN,DOWEL,6X8

€ 2.50

8

92042041
ref: 8

PIN,DOWEL

€ 4.50

9

16084018
ref: 9

GEAR, OIL PUMP

€ 8.00

10

110601115
ref: 10

GASKET,OIL PUMP (NAS)

€ 3.00

11

160971001
ref: 11

STRAINER ASSY,OIL

€ 5.00

12

92071100
ref: 12

GROMMET OIL STRAINER

€ 3.50

13

16099004
ref: 13

FILTER, OIL

€ 5.50

14

92071101
ref: 14

GROMMET, OIL FILTER

€ 3.50

15

16156002
ref: 15

PISTON-ASSY,VALVE,BY-

€ 15.50

16

92043123
ref: 16

SPRING PIN

€ 3.00

17

92081043
ref: 17

SPRING, PISTON

€ 3.50

18

92136002
ref: 18

PISTON

€ 3.00

19

220B0625
ref: 19

SCREW-PAN HEAD,6X25

€ 1.50

20

315B1600
ref: 20

NUT-HEX-FINE,16MM

€ 2.50

21

420B1611
ref: 21

WASHER-CLAW,16MM

€ 2.50

22

551A0312
ref: 22

PIN-DOWEL,3X12

€ 0.50

23

551A0608
ref: 23

PIN,DOWEL,6X8

€ 2.50

2

92022170
ref: 2

WASHER-THRUST

€ 6.00
