REAR HUB/BRAKE/CHAIN ('81 D2)

KZ250D2 CSR 1981 USA CANADA / MPH KPH

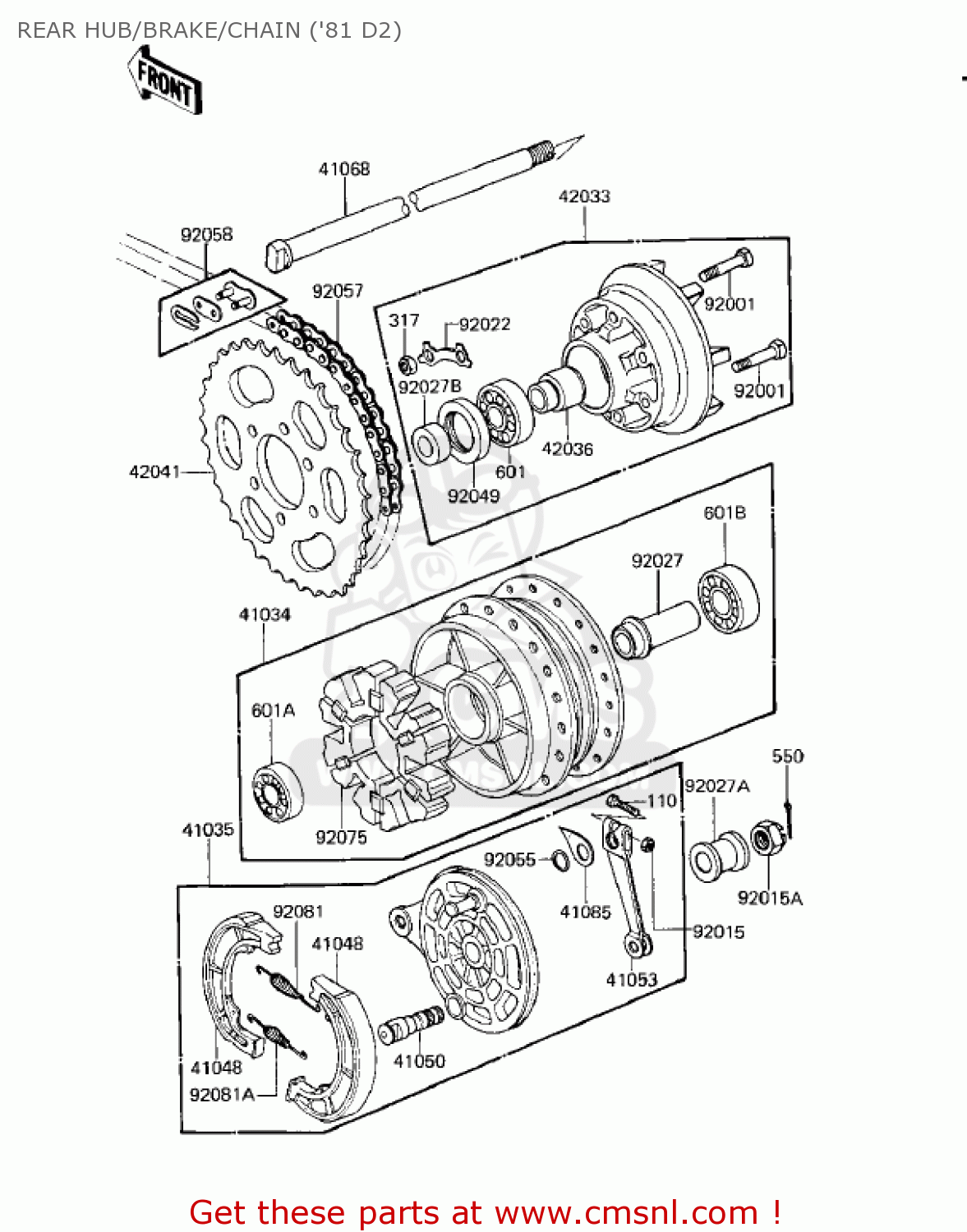

Rear hub/brake/chain ('81 d2) diagram KZ250D2 CSR 1981 USA CANADA / MPH KPH

REAR HUB/BRAKE/CHAIN ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

REAR HUB/BRAKE/CHAIN ('81 D2) KZ250D2 CSR 1981 USA CANADA / MPH KPH

prices are in EUR

ref

part #

description

quantity

41034

42005057
ref: 41034

DRUM-ASSY,RR

€ 454.00

41035

410351090
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 278.00

41048

42019010
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

42026026
ref: 41050

CAM-BRAKE

€ 16.00

41053

41053002
ref: 41053

LEVER-BRAKE CAM

€ 11.50

41068

42031059
ref: 41068

AXLE, REAR

€ 45.00

41085

41085013
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42033

420331029
ref: 42033

COUPLING-ASSY,RR HUB

€ 112.50

42036

42036031
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 16.00

42041

420411042
ref: 42041

SPROCKET-HUB,37T

€ 41.00

92001

92001021
ref: 92001

BOLT-REAR SPROCKET

€ 3.50

92015

41072007
ref: 92015

NUT,6MM

€ 2.50

92015A

42045020
ref: 92015A

NUT,14MM

€ 6.50

92022

92088019
ref: 92022

WASHER,SPROCKET LOCK

€ 4.00

92027

42010037
ref: 92027

COLLAR,L=57

€ 9.00

92027A

42032076
ref: 92027A

COLLAR, REAR AXLE

€ 11.50

92027B

42037029
ref: 92027B

COLLAR,REAR HUB COUPR

€ 12.00

92049

92050060
ref: 92049

OIL SEAL,RR HUB BRNK

€ 12.00

92055

92055004
ref: 92055

RING-O,BRAKE CAM

€ 3.00

92057

920571034
ref: 92057

CHAIN,DRIVE,EK520SH-G

€ 55.00

92058

920581001
ref: 92058

JOINT-CHAIN

€ 4.50

92075

42014030
ref: 92075

DAMPER,REAR HUB SHOCK

€ 7.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92081A

920811550
ref: 92081A

SPRING,BRAKE SHOE

€ 6.00

110

112G0630
ref: 110

BOLT-UPSET

€ 1.00

317

317B0800
ref: 317

NUT,8M/M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

601

601B6004
ref: 601

BEARING-BALL,#6004C3

€ 10.50

601A

601B6202
ref: 601A

BEARING-BALL,#6202C3

€ 14.50

601B

601B6302Z
ref: 601B

BEARING-BALL,#6302ZC3

€ 22.50
