TAILLIGHT ('78 D1)
KZ1000D3 Z1R 1980 CANADA

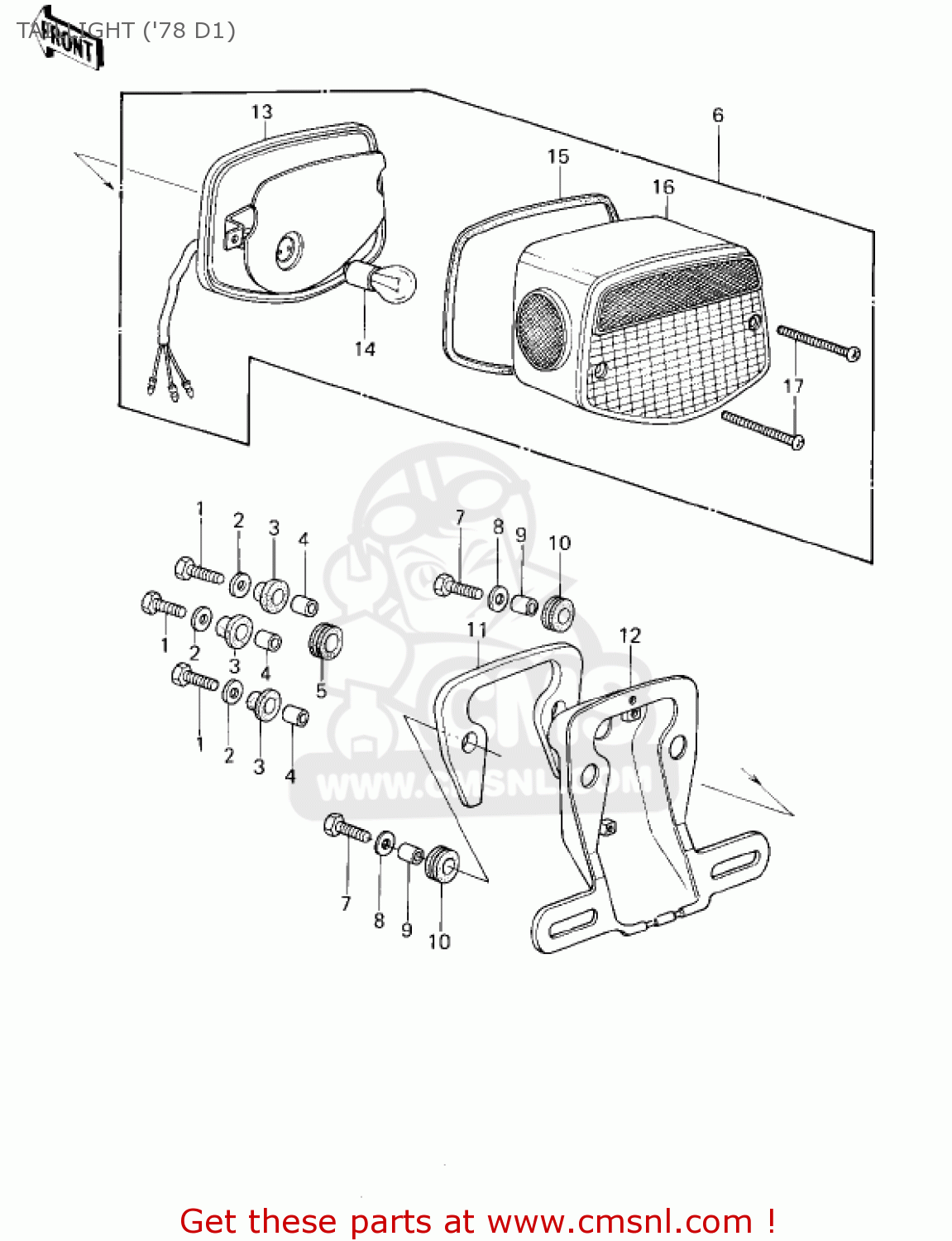

Taillight ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA
TAILLIGHT ('78 D1) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
112G0620
ref: 1
BOLT 6X20
€ 1.00
2
92022125
ref: 2
WASHER,6.5X20X1.6
€ 1.00
3
92075112
ref: 3
DAMPER RUBBER
€ 2.50
4
92027120
ref: 4
COLLAR
€ 3.00
5
92071019
ref: 5
GROMMET,10MM
€ 2.50
6
23025064
ref: 6
LAMP-TAIL,220-40781MA
€ 139.00
7
112B0622
ref: 7
BOLT, 6X22
€ 2.50
8
92022125
ref: 8
WASHER,6.5X20X1.6
€ 1.00
9
92027129
ref: 9
COLLAR,6.8X10X8.5
€ 3.00
10
23066020
ref: 10
DAMPER
€ 10.00
11
23066019
ref: 11
DAMPER RUBBER,L.B
€ 9.00
12
23036045
ref: 12
LICENSE PLATE BRACKET
€ 233.50
13
23027041
ref: 13
BODY-COMP-TAIL LAMP
€ 96.00
14
92069059
ref: 14
BULB,12V 32/3CP
€ 5.50
15
23028021
ref: 15
GASKET,TAIL LAMP LENS (NAS)
€ 8.00
16
23026034
ref: 16
LENS,TAIL LAMP
€ 64.50
17
220R0460
ref: 17
SCREW-PAN-CROS
€ 3.00
