FRONT WHEEL/TIRE/HUB ('80 D3)
KZ1000D3 Z1R 1980 CANADA

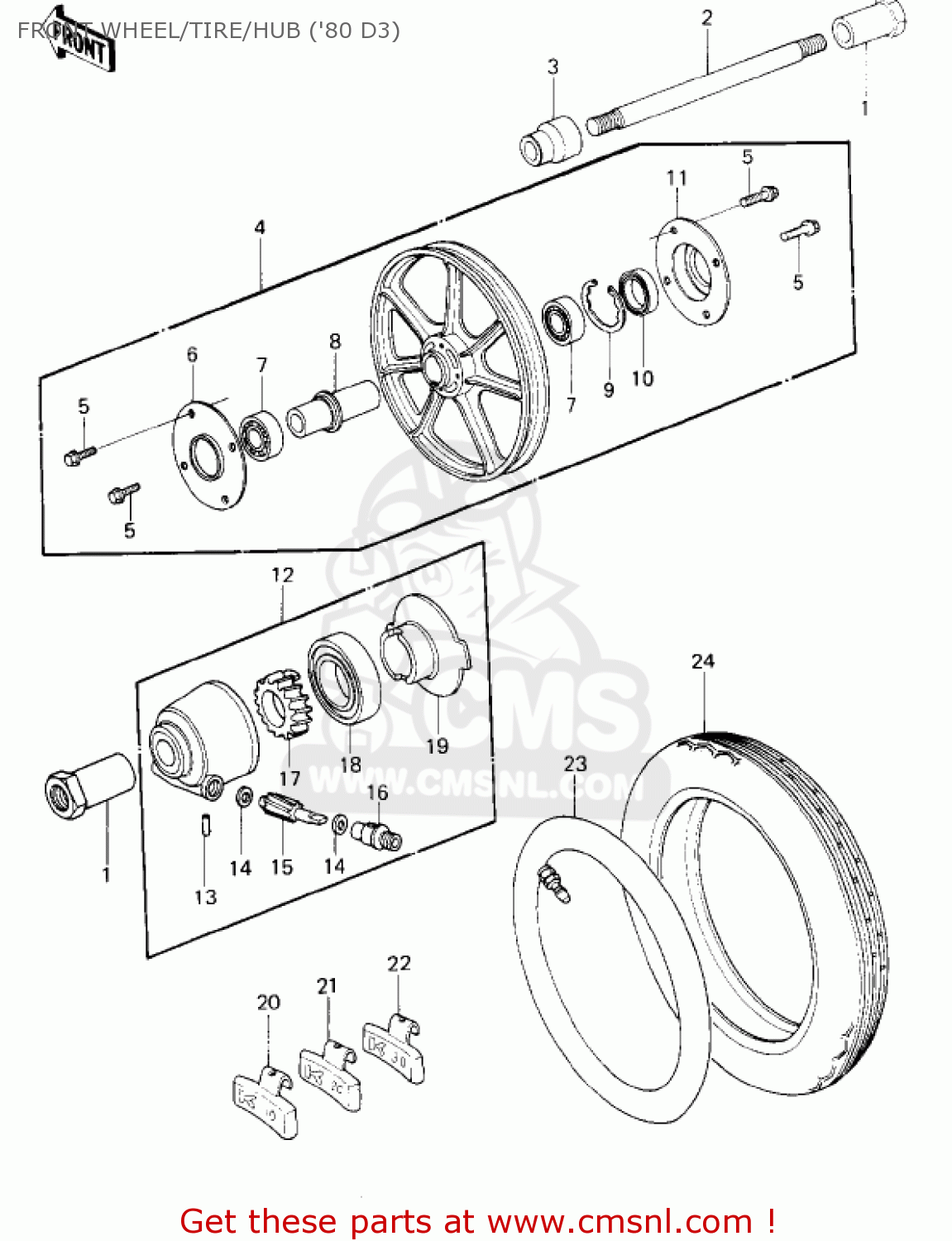

Front wheel/tire/hub ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
FRONT WHEEL/TIRE/HUB ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41069033
ref: 1
COLLAR,FRONT AXLE
€ 22.00
2
41068049
ref: 2
AXLE,FR
€ 71.00
3
41069032
ref: 3
COLLAR,FRONT AXLE
€ 13.50
4
410731068
ref: 4
SOLID WHEEL ASSY,FR
€ 637.00
5
920011173
ref: 5
BOLT,HEX HEAD,10X30
€ 6.00
6
41042014
ref: 6
DUST COVER
€ 20.00
7
601B6203Z
ref: 7
BEARING-BALL,#6203ZC3
€ 24.00
8
41039028
ref: 8
COLLAR,BEARING
€ 19.50
9
920331040
ref: 9
RING,SNAP,40M/M
€ 4.00
10
654A254008
ref: 10
OIL SEAL
€ 13.00
11
41042015
ref: 11
DUST COVER
€ 15.00
12
410781012
ref: 12
CASE-ASSY-METER GEAR
€ 116.50
13
41082001
ref: 13
PIN-SPRING
€ 2.50
14
41063001
ref: 14
WASHER-THRST SPD PINI
€ 3.00
15
41060017
ref: 15
9T
PINION,SPEEDOMETER
€ 33.50
16
920281066
ref: 16
BUSHING,SPEEDOMET CAB
€ 7.50
17
41059026
ref: 17
26T
GEAR,SPEEDOMETER
€ 27.00
18
920491057
ref: 18
OIL SEAL,BJN30427-C3
€ 7.50
19
41064013
ref: 19
RECEIVER-SPEEDOMETER
€ 11.50
20
410751011
ref: 20
BALANCER WHEEL 10G
€ 7.50
21
410751012
ref: 21
BALANCER WHEEL 20G
€ 7.50
22
410751013
ref: 22
BALANCER WHEEL 30G
€ 7.50
23
41022030
ref: 23
TR6
TUBE,3.25/3.50-19
€ 46.50
24
410021072
ref: 24
DUNLOP F6B
TIRE,325V-19 F6B F
€ 111.50
