ENGINE COVERS ('80 D3)

KZ1000D3 Z1R 1980 CANADA

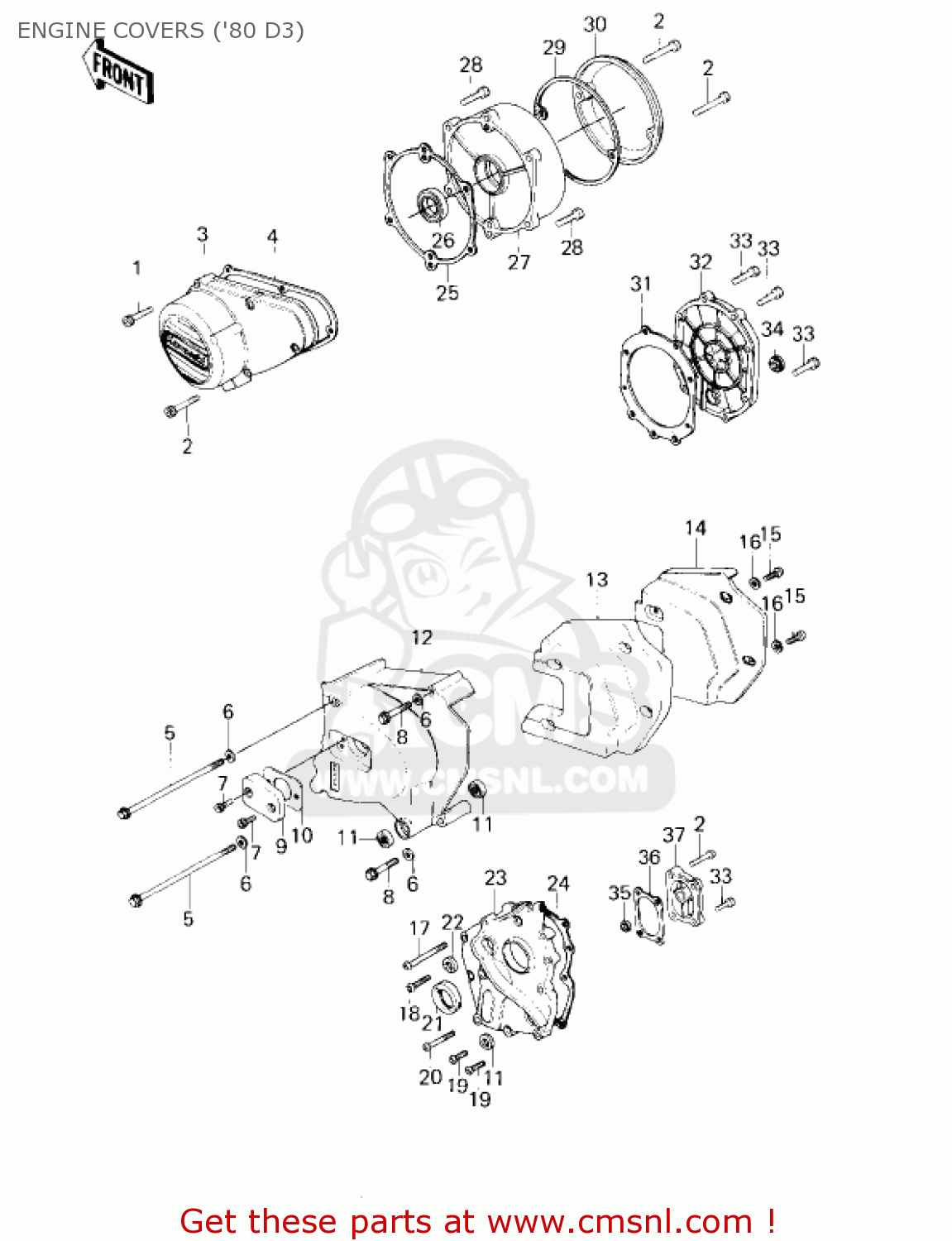

Engine covers ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA

ENGINE COVERS ('80 D3) KZ1000D3 Z1R 1980 CANADA

ENGINE COVERS ('80 D3) KZ1000D3 Z1R 1980 CANADA

prices are in EUR

ref

part #

description

quantity

1

120P0630
ref: 1

BOLT,SOCKET,6X30

€ 4.50

2

120P0640
ref: 2

BOLT,SOCKET,6X40

€ 1.50

3

140311015
ref: 3

COVER-GENERATOR,F.BLA

€ 454.00

4

110601075
ref: 4

GASKET,GENERATOR COVE (NAS)

€ 15.00

5

112G06125
ref: 5

BOLT-UPSET,6X125

€ 3.50

6

410B0600
ref: 6

WASHER-PLAIN-SMALL,6M

€ 0.50

7

120P0616
ref: 7

BOLT,SOCKET,6X16

€ 1.50

8

110G0670
ref: 8

BOLT,HEX HEAD,6X70

€ 3.00

9

140251038
ref: 9

COVER,CLUTCH ADJUSTNG

€ 14.00

10

110091126
ref: 10

GASKET,CLTH ADJST COV (MCA)

€ 3.50

11

92049004
ref: 11

OIL SEAL SB12205

€ 6.00

12

140261017
ref: 12

COVER,FRNT CHAIN

€ 136.50

13

920751064
ref: 13

ARRESTER,SOUND

€ 35.50

14

140251044
ref: 14

COVER,SOUND AREST RET

€ 18.50

15

220B0612
ref: 15

SCREW-PAN HEAD,6X12

€ 1.00

16

410B0600
ref: 16

WASHER-PLAIN-SMALL,6M

€ 0.50

17

220B0660
ref: 17

SCREW-PAN HEAD,6X60

€ 2.50

18

220B0628
ref: 18

SCREW-PAN HEAD,6X28

€ 2.50

19

220B0622
ref: 19

SCREW-PAN HEAD,6X22

€ 2.50

20

220B0640
ref: 20

SCREW-PAN HEAD,6X40

€ 2.00

21

92050024
ref: 21

OIL SEAL SC325210

€ 5.00

22

92050048
ref: 22

OIL SEAL,TC7187

€ 15.00

23

140255028
ref: 23

TRANSMISSION COVER

€ 50.00

24

110601069
ref: 24

GASKET,TRANSMISSION C (NAS)

€ 12.00

25

110601071
ref: 25

GASKET,RH ENGINE COVE (NAS)

€ 10.50

26

92050047
ref: 26

OIL SEAL,S25407R

€ 19.50

27

14032083
ref: 27

COVER-R.H ENGINE

€ 337.50

28

120P0622
ref: 28

BOLT,SOCKET,6X22

€ 1.50

29

14050006
ref: 29

GASKET-POINT CAP (MCA)

€ 16.50

30

140251037
ref: 30

COVER,PLUSING COIL

€ 70.00

31

14046024
ref: 31

GASKET-CLUTCH COVER (MCA)

€ 30.50

32

140321006
ref: 32

COVER,CLUTCH,F.BLACK

€ 53.00

33

120P0625
ref: 33

BOLT,6X25

€ 1.50

34

52015004
ref: 34

GAUGE,OIL LEVEL

€ 27.00

35

920491048
ref: 35

OIL SEAL,SC22325

€ 6.00

36

14046025
ref: 36

CASKET-KICK COVER (MCA)

€ 6.00

37

1403207521
ref: 37

COVER,KICKSTARTER,BLK

€ 71.00
