IGNITION/GENERATOR/REGULATOR ('8
KZ1000D3 Z1R 1980 CANADA

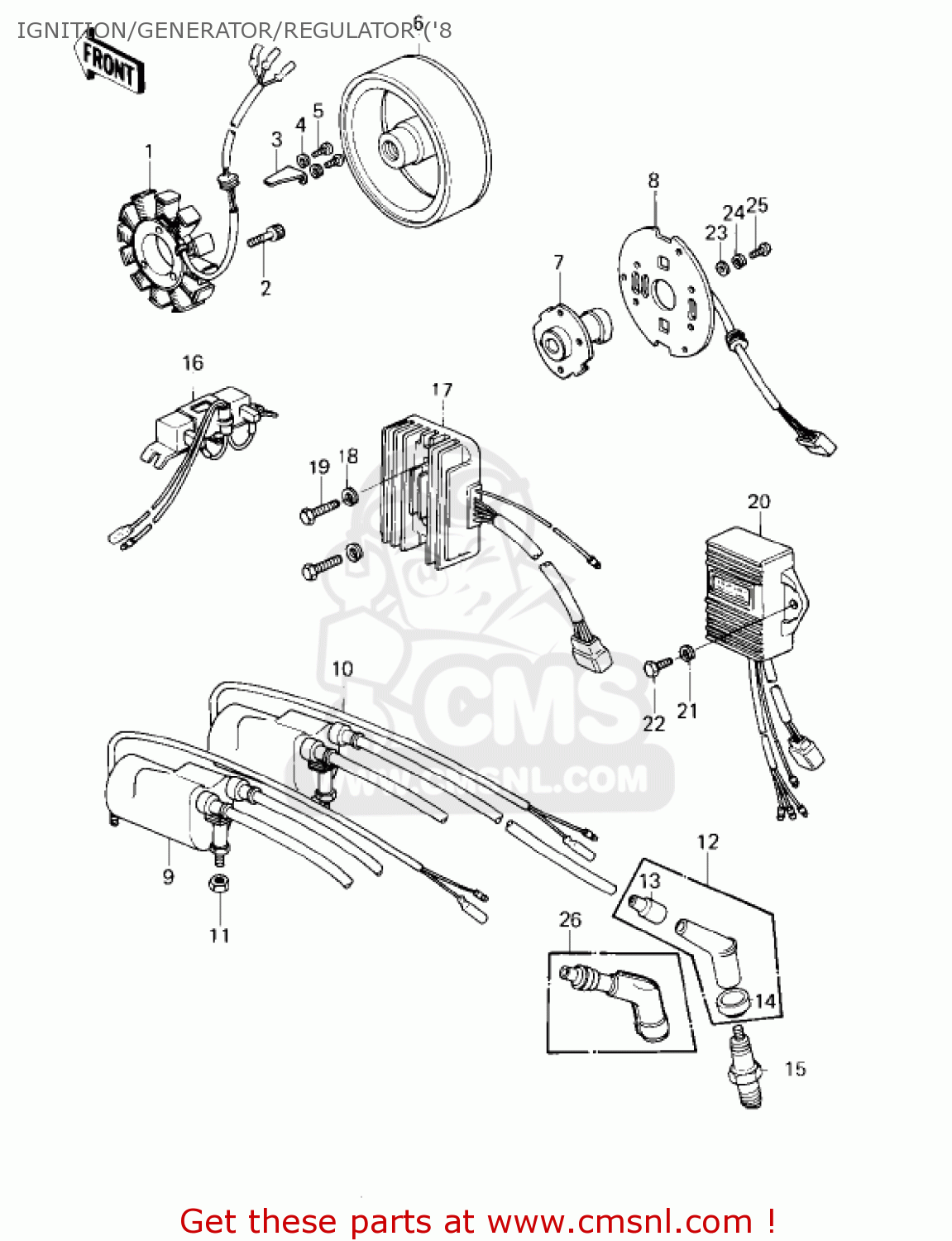

Ignition/generator/regulator ('8 diagram KZ1000D3 Z1R 1980 CANADA
IGNITION/GENERATOR/REGULATOR ('8 KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
210031015
ref: 1
STATOR
€ 568.50
2
120P0525A
ref: 2
BOLT,SOCKET,5X25
€ 1.50
3
920371122
ref: 3
CLAMP,GENERATOR LEAD
€ 3.00
4
461F0500
ref: 4
WASHER-SPRING,5MM
€ 0.50
5
220B0512
ref: 5
SCREW-PAN-CROS
€ 0.50
6
210071011
ref: 6
ROTOR
€ 668.50
7
211481009
ref: 7
SPARK ADVANCER ASSEMBLY
€ 134.00
7
211481006
ref: 7
USE FOR CANADIAN MAR
GOVERNOR-BREAKER
€ 128.00
8
590261012
ref: 8
COIL-PULSING
€ 203.50
9
211211013
ref: 9
NO. 1 OF 4
COIL-IGNITION,#1&4
€ 188.50
10
211211014
ref: 10
NO. 2 OF 3
COIL-IGNITION,#2&3
€ 219.00
11
92017014
ref: 11
NUT,LOCK,6MM
€ 4.00
12
211601014
ref: 12
CAP-ASSY-PLUG
€ 27.00
13
21132005
ref: 13
GROMMET,SPARK PLUG CP
€ 2.50
14
21131004
ref: 14
GROMMET,PLUG CAP
€ 7.00
15
B8ES11
ref: 15
SPARK PLUG,B8ES11,B8ES
€ 1.50
16
280181018
ref: 16
RESISTOR
€ 79.00
17
210661008
ref: 17
REGULATOR-VOLTAGE
€ 164.50
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
112G0625
ref: 19
BOLT-UPSET,6X25
€ 4.00
20
211195001
ref: 20
LEAD WIRE (RED) = 70
IGNITER
€ 753.00
20
211195001
ref: 20
LEAD WIRE (RED) = 75
IGNITER
€ 753.00
21
461F0600
ref: 21
WASHER-SPRING,6MM
€ 0.50
22
112G0616
ref: 22
BOLT UPSET,6X16
€ 1.00
23
410B0500
ref: 23
WASHER-PLAIN-SMALL,5M
€ 0.50
24
461F0500
ref: 24
WASHER-SPRING,5MM
€ 0.50
25
220B0512
ref: 25
SCREW-PAN-CROS
€ 0.50
26
21160005
ref: 26
USE FOR CANADIAN MAR
CAP-ASSY-PLUG
€ 29.00
