OWNER TOOLS ('78 D1)

KZ1000D3 Z1R 1980 CANADA

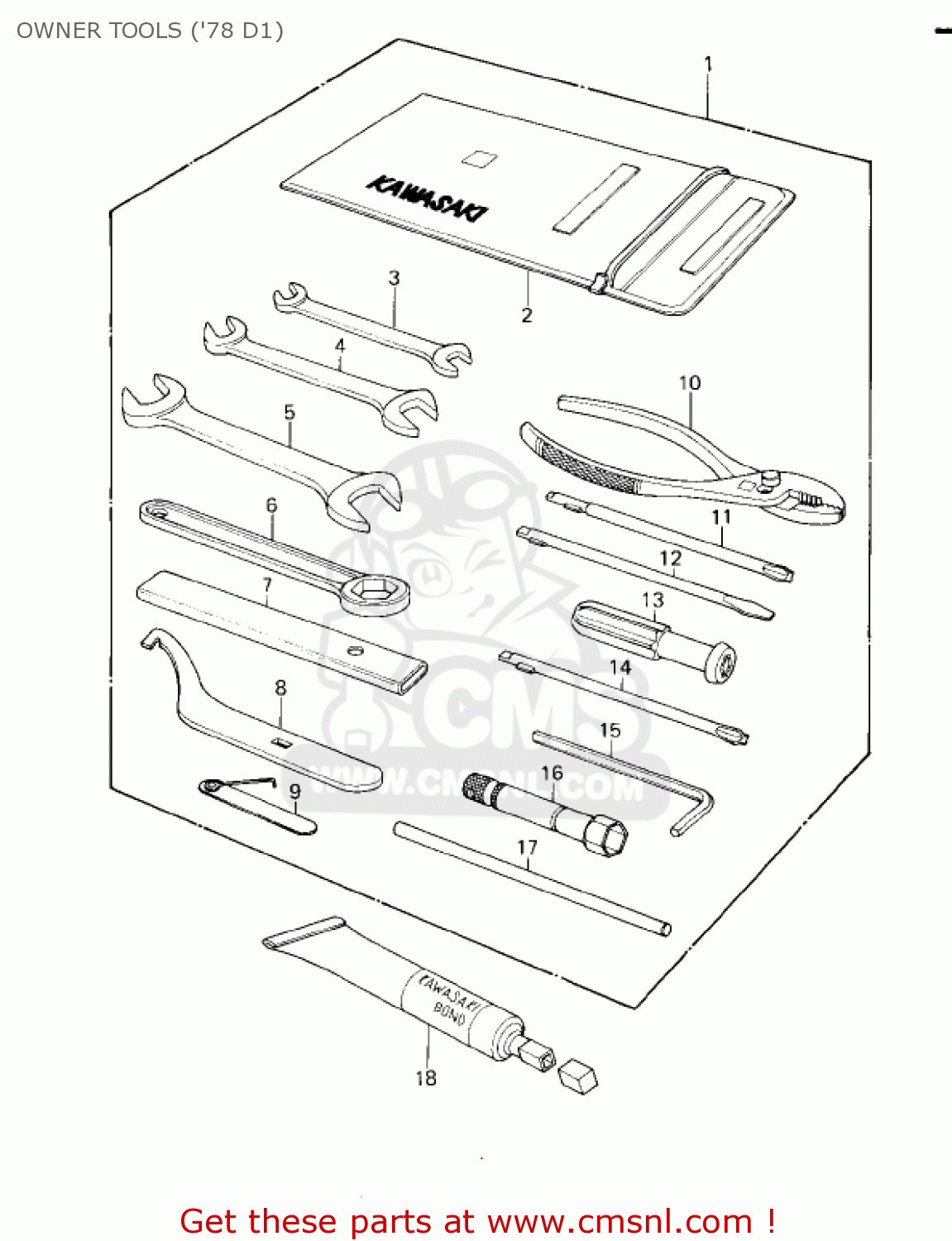

Owner tools ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA

OWNER TOOLS ('78 D1) KZ1000D3 Z1R 1980 CANADA

OWNER TOOLS ('78 D1) KZ1000D3 Z1R 1980 CANADA

prices are in EUR

ref

part #

description

quantity

1

560071018
ref: 1

TOOL KIT

€ 36.00

2

56008006
ref: 2

BAG,TOOL

€ 16.50

3

92126001
ref: 3

TOOL-WRENCH,OPEN END,

€ 9.00

4

92126002
ref: 4

WRENCH-OPEN END,12X13

€ 7.50

5

921101153
ref: 5

TOOL-WRENCH,OPEN END,

€ 12.50

6

921101147
ref: 6

TOOL-WRENCH,BOX END,2

€ 15.00

7

92111004
ref: 7

BAR-BOX WRENCH

€ 8.00

8

921101014
ref: 8

WRENCH,HOOK

€ 6.00

9

92128001
ref: 9

GAUGE,FILLER

€ 3.00

10

92112003
ref: 10

PLIERS,150MM

€ 18.00

11

921071052
ref: 11

TOOL-DRIVER

€ 6.50

12

92107007
ref: 12

SCREW DRIVER-#3 SLOT

€ 6.50

13

92106004
ref: 13

GRIP-SCREW DRIVER

€ 7.00

14

92107008
ref: 14

SCREW DRIVER-#3 PHILL

€ 7.00

15

921101015
ref: 15

WRENCH,ALLEN

€ 7.50

16

92108008
ref: 16

WRENCH-SPARK PLUG

€ 12.50

17

92111005
ref: 17

TOOL-BAR,SPARK PLUG W

€ 3.50

18

92104002
ref: 18

LIQUID GASKET

€ 69.50
