CARBURETOR ASSY (USA) ('80 D3)
KZ1000D3 Z1R 1980 CANADA

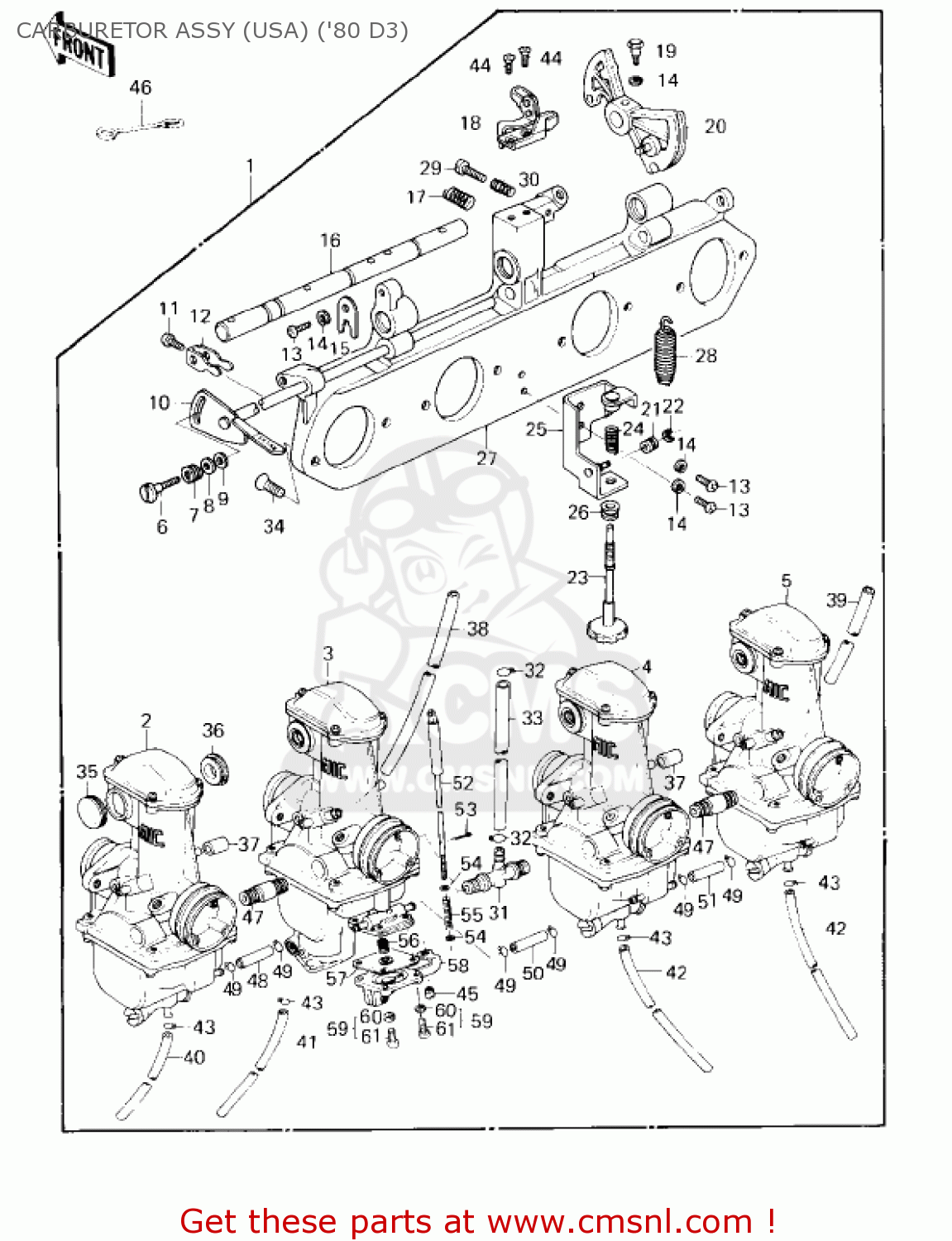

Carburetor assy (usa) ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
CARBURETOR ASSY (USA) ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
160011204
ref: 1
CARBURETOR ASSEMBLY
€ 863.50
2
160011227
ref: 2
CARBURETOR,OUTSIDE,LH
€ 326.50
3 & 56
160011228
ref: 3 & 56
CARBURETOR,INSIDE,LH
€ 310.50
4
160011233
ref: 4
CARBURETOR,INSIDE,RH
€ 266.50
5
160011230
ref: 5
CARBURETOR,OUTSIDE,RH
€ 253.50
6
16046005
ref: 6
SCREW
€ 4.50
7
16040009
ref: 7
SPRING,F
€ 6.50
8
16039020
ref: 8
STEEL
WASHER,PLAIN
€ 3.50
8
410B0500
ref: 8
STEEL
WASHER-PLAIN-SMALL,5M
€ 0.50
9
16039019
ref: 9
NYLON
WASHER-PLAIN
€ 3.00
10
16041021
ref: 10
SHAFT,STARTER PLUNGER
€ 37.50
11
16046007
ref: 11
SCREW,PAN HEAD,5X7
€ 6.50
12
131681026
ref: 12
LEVER,STARTER PLUNGER
€ 13.50
13
220B0514
ref: 13
ACREW-PAN HEAD,5X14
€ 2.50
14
461F0500
ref: 14
WASHER-SPRING,5MM
€ 0.50
15
16055012
ref: 15
PLATE,SHAFT STOPPER
€ 7.00
16
16041017
ref: 16
SHAFT,CARB CONNECTION
€ 47.50
17
16040022
ref: 17
SPRING,CABLE PLY BKT
€ 6.00
18
16077017
ref: 18
BRACKET,THROTTLE CABL
€ 41.00
19
16067006
ref: 19
BOLT-HEX HEAD,5X14
€ 10.50
20
132361015
ref: 20
THROTTLE CABLE PULLEY
€ 36.50
21
16073016
ref: 21
RING
€ 8.00
22
482K3000
ref: 22
CIRCLIP-TYPE-E,3MM
€ 2.00
23
160211020
ref: 23
SCREW,THROTTLE STOP
€ 17.50
24
920811200
ref: 24
SPRING,THROTT STP SCR
€ 5.50
25
110341667
ref: 25
BRACKET,THROTT CBL PL
€ 23.00
26
920281071
ref: 26
BUSHING,IDLING ADJUST
€ 4.50
27
160651009
ref: 27
HOLDER,CARBURETOR MOT
€ 103.00
28
920811028
ref: 28
SPRING,THORTTLE PULLY
€ 41.00
29
160211011
ref: 29
SCREW,ADJUSTER
€ 7.00
30
16022010
ref: 30
SPRING,THROTTLE ADJST
€ 4.50
31
920051010
ref: 31
NIPPLE,FUEL HOSE
€ 19.50
32
920371184
ref: 32
CLAMP,HOSE
€ 1.00
33
920591123
ref: 33
ACTUAL L = 140 M/R
TUBE,7.5X12.5X225
€ 17.00
34
16033029
ref: 34
SCREW,PAN HEAD,6X14
€ 3.00
34
221B0614
ref: 34
SCREW-CNTSNK HD,6X14
€ 2.50
35
16039042
ref: 35
CAP,RUBBER
€ 9.00
36
92071104
ref: 36
GROMMET,CARBURETOR
€ 16.00
37
92059141
ref: 37
HOSE, 6X11.5X16
€ 9.00
38
920591028
ref: 38
HOSE,AIR VENT,5X8X550
€ 13.00
39
920591028
ref: 39
HOSE,AIR VENT,5X8X550
€ 13.00
40
92059147
ref: 40
HOSE,FUEL OVERFLOW
€ 17.50
41
92059134
ref: 41
HOSE,OVERFLOW
€ 17.50
42
92059134
ref: 42
HOSE,OVERFLOW
€ 17.50
43
92037178
ref: 43
CLAMP
€ 7.00
44
221B0510A
ref: 44
SCREW-CNTSNK HD,5X10
€ 2.50
45
920151075
ref: 45
NUT, PUMP ROD
€ 5.50
46
92037134
ref: 46
CLAMP,OVER FLOW PIPE
€ 7.50
47
920051009
ref: 47
FITTING,FUEL TUBE
€ 36.50
48
920591072
ref: 48
TUBE,3.5X7.5X47.5
€ 7.00
49
920371124
ref: 49
CLAMP,TUBE
€ 4.00
50
920591071
ref: 50
TUBE,
€ 14.00
51
920591072
ref: 51
TUBE,3.5X7.5X47.5
€ 7.00
52 & 5
461021013
ref: 52 & 5
PUMP ROD ASSEMBLY
€ 24.00
53
550D1006
ref: 53
COTTER PIN,1.0X6
€ 2.00
54
920221138
ref: 54
PUMP ROD WASHER
€ 2.00
55
920811138
ref: 55
SPRING, PUMP ROD
€ 4.50
56
920811139
ref: 56
PUMP DIAPHRAGM SPRING
€ 2.00
57
430281012
ref: 57
DIAPHRAGM,PUMP
€ 64.50
58
140251139
ref: 58
PUMP COVER ASSEMBLY
€ 40.50
59
223B0414
ref: 59
SCREW PAN-WS-CROS
€ 2.50
60
461F0400
ref: 60
WASHER-SPRING,4MM
€ 0.50
61
220B0414
ref: 61
SCREW-PAN-CROS
€ 2.00
