FRAME/FRAME FITTINGS ('80 D3)
KZ1000D3 Z1R 1980 CANADA

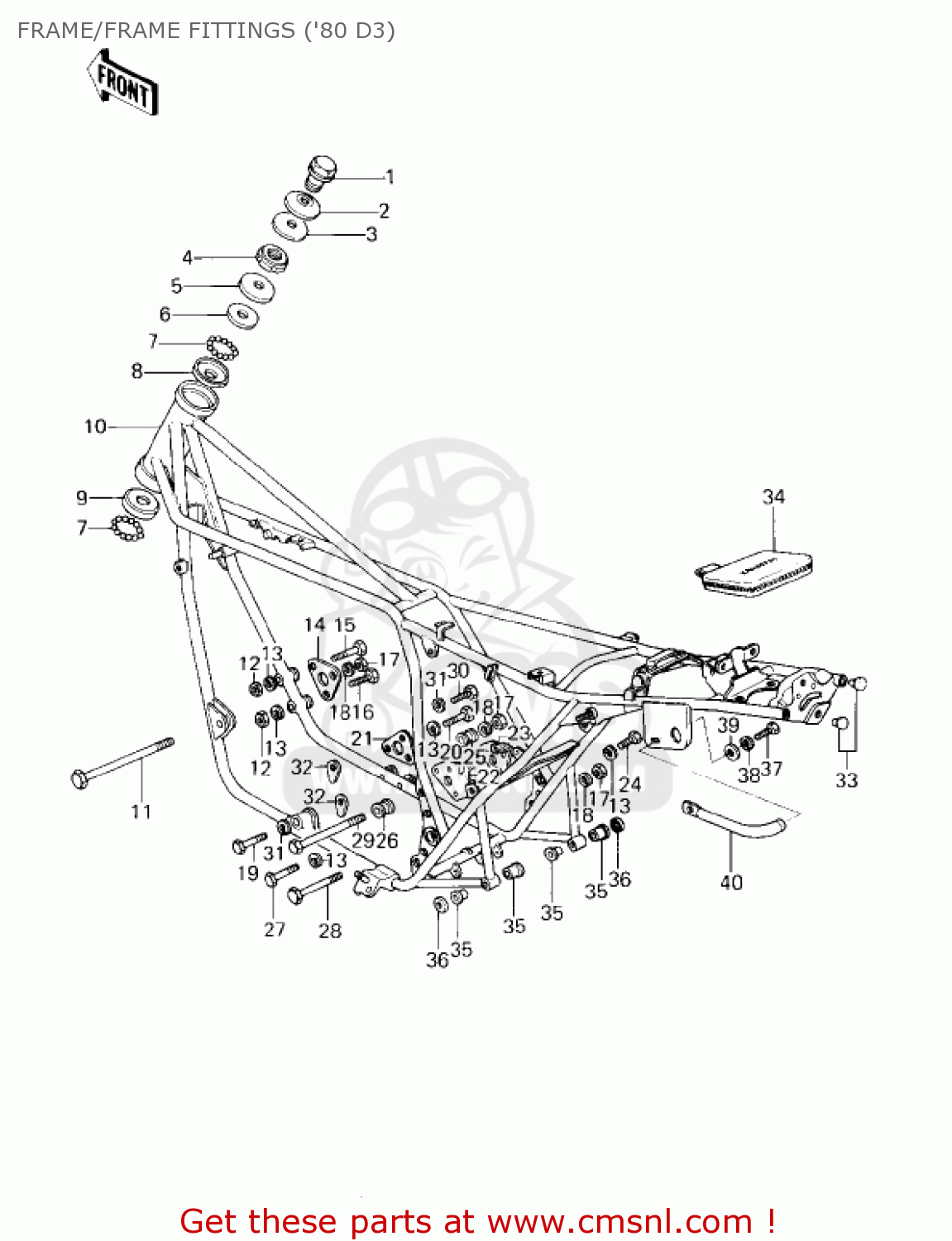

Frame/frame fittings ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
FRAME/FRAME FITTINGS ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92007031
ref: 1
BOLT-STEERG STEM HEAD
€ 17.50
2
92022230
ref: 2
WASHER-STEERG STM HD
€ 7.50
3
46100003
ref: 3
WASHER,WAVE
€ 6.50
4
92090007
ref: 4
NUT-STEERING STEM LCK
€ 8.00
5
46098016
ref: 5
CAP,STEERING STEM
€ 4.00
6
92047011
ref: 6
CONE-STRNG STM BRNG
€ 14.50
7
600A0800
ref: 7
BALL-STEEL,1/4
€ 0.50
8
92048006
ref: 8
RACE-STRNG BEARIN-STE
€ 11.50
9
92048008
ref: 9
RACE-STRNG STM BRNG
€ 16.00
10
320021103
ref: 10
FRAME
€ 750.50
11
92091022
ref: 11
L=310 MM
BOLT-ENGINE MOUNTING
€ 18.50
12
311B0800
ref: 12
NUT,8MM
€ 0.50
13
461F0800
ref: 13
WASHER-SPRING,8MM
€ 0.50
14
32030025
ref: 14
BRACKET-ENGINE,FR
€ 11.50
15
920011236
ref: 15
BOLT,HEX HEAD,8X65
€ 1.00
15
920011582
ref: 15
BOLT,FLANGED,8X65
€ 3.50
16
920011581
ref: 16
BOLT,FLANGED,8X60
€ 3.50
17
92019021
ref: 17
NUT,LOCK,10M/M
€ 2.00
18
461F1000
ref: 18
WASHER-SPRING,10MM
€ 0.50
19
920011262
ref: 19
BOLT,HEX HEAD,12X55
€ 6.00
20
115G0818
ref: 20
BOLT SMALL-UPSET
€ 2.50
21
32030026
ref: 21
BRACKET-ENGINE,LWR
€ 11.50
22
320291023
ref: 22
BRACKET,REAR ENG.MOUT
€ 9.50
23
320291024
ref: 23
BRACKET,REAR ENG.MOUT
€ 10.50
24
920011230
ref: 24
BOLT,HEX HEAD,8X40
€ 4.00
24
920011578
ref: 24
BOLT,FLANGED,8X40
€ 4.00
25
92027160
ref: 25
L = 31 MM
COLLAR,L=30.5
€ 7.00
26
92027159
ref: 26
L = 52 MM
COLLAR-ENG MOUNTING
€ 21.00
27
920011577
ref: 27
BOLT,FLANGED,8X35
€ 2.50
28
92003099
ref: 28
L = 165 MM
BOLT-ENGINE MOUNTING
€ 16.50
29
92091023
ref: 29
L = 250 MM
BOLT-ENGINE MOUNTING
€ 15.50
30
920011265
ref: 30
BOLT,HEX HEAD,12X70
€ 4.50
31
461F1200
ref: 31
WASHER-SPRING,12MM
€ 0.50
32
92016045
ref: 32
NUT,12MM
€ 13.50
33
920661018
ref: 33
PLUG,END,17.5MM
€ 2.50
34
560081008
ref: 34
BAG,MANUAL
€ 18.00
35
92092010
ref: 35
BUSHING-MUFFLER FITT
€ 11.00
36
92022328
ref: 36
WASHER,PLAIN
€ 2.50
37
115G0816
ref: 37
BOLT-HEX,HEAD 8X16
€ 0.50
38
461F0800
ref: 38
WASHER-SPRING,8MM
€ 0.50
39
410B0800
ref: 39
WASHER-PLAIN-SMALL,8M
€ 0.50
40
321091004
ref: 40
GRIP-FRAME
€ 36.50
