MUFFLERS ('80 D3)
KZ1000D3 Z1R 1980 CANADA

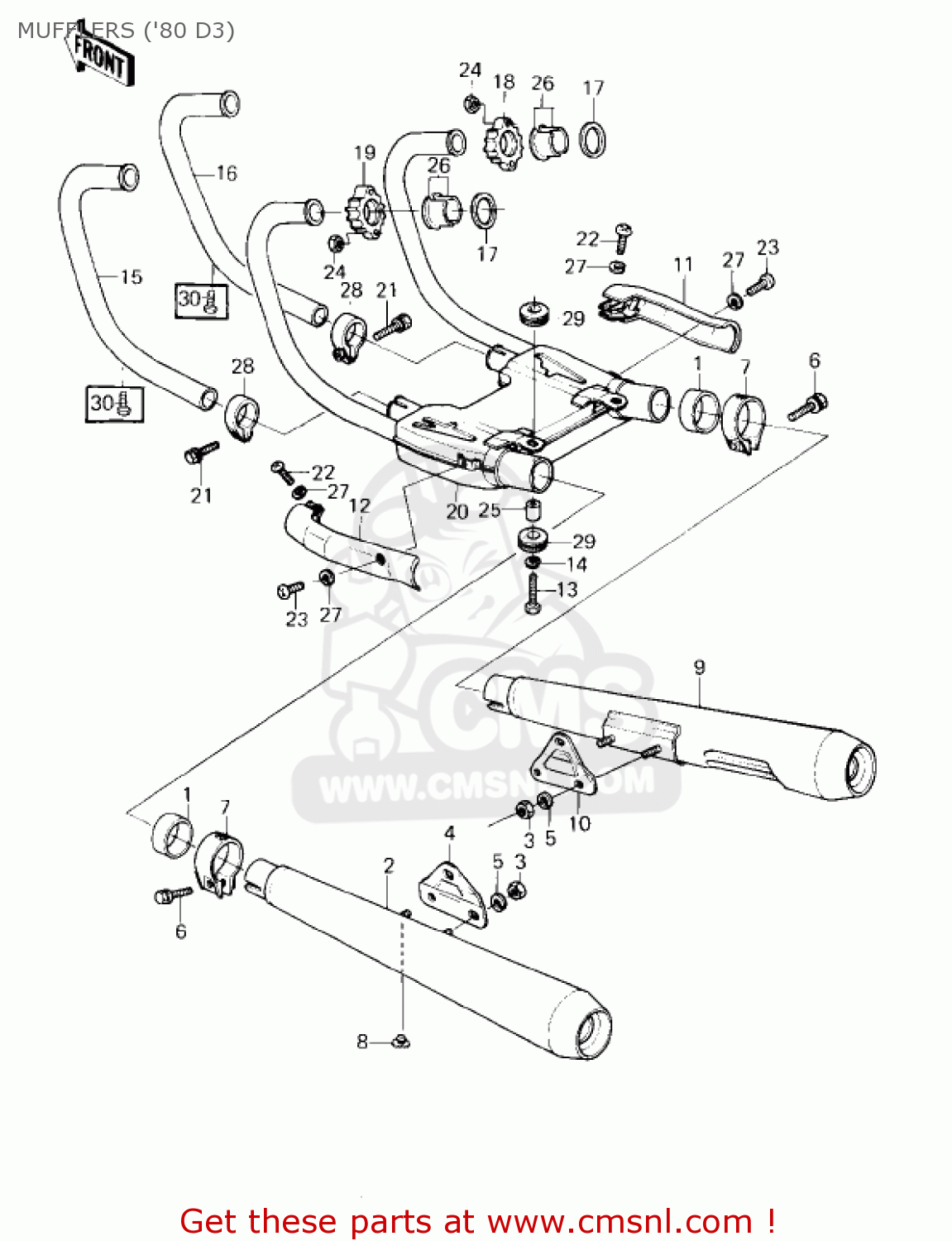

Mufflers ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
MUFFLERS ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110091035
ref: 1
GASKET,MUFFLER (MCA)
€ 20.00
2
180021044
ref: 2
MUFFLER L.H
€ 232.00
3
311B0800
ref: 3
NUT,8MM
€ 0.50
4
320691037
ref: 4
MUFFLER BRACKET,LH
€ 16.50
5
461F0800
ref: 5
WASHER-SPRING,8MM
€ 0.50
6
920011094
ref: 6
BOLT,HEX HEAD,8X35
€ 2.50
7
920371055
ref: 7
CLAMP,MUFFLER
€ 16.00
8
92075015
ref: 8
DAMPER RUBB-MAIN STND
€ 3.00
9
180021034
ref: 9
MUFFLER
€ 377.50
10
320691038
ref: 10
MUFFLER BRACKET,RH
€ 16.50
11
140251017
ref: 11
COVER,MUFFLER,R.H
€ 15.50
12
140251120
ref: 12
MUFFLER COVER,LH
€ 37.00
13
920011577
ref: 13
BOLT,FLANGED,8X35
€ 2.50
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
180491030
ref: 15
PIPE,EXH.L.H,INSIDE
€ 138.00
15
180491030
ref: 15
PIPE,EXH.L.H,INSIDE
€ 138.00
16
180491031
ref: 16
PIPE,EXH,R.H,INSIDE
€ 86.00
16
180491031
ref: 16
PIPE,EXH,R.H,INSIDE
€ 86.00
17
110091906
ref: 17
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
18
180691004
ref: 18
HOLDER,EXHAUST PIPE,R
€ 33.00
19
180691005
ref: 19
HOLDER,EXHAUST PIPE,L
€ 41.00
20
490701018
ref: 20
MUFFLER CONNECTING BOX
€ 350.50
20
490701018
ref: 20
MUFFLER CONNECTING BOX
€ 350.50
21
920011067
ref: 21
BOLT,HEX HEAD,8X30
€ 2.50
22
920091019
ref: 22
SCREW,PAN HEAD,6X20
€ 3.00
23
220C0608
ref: 23
SCREW-PAN-CROS,6X8
€ 1.00
24
92017013
ref: 24
NUT,LOCK,8MM
€ 5.50
25
920271064
ref: 25
COLLAR,9X13X17.2
€ 9.50
26
92027170
ref: 26
COLLAR,EXHAUST PIPE
€ 8.00
27
461K0600
ref: 27
WASHER-SPRING
€ 0.50
28
920371056
ref: 28
EXHAUST PIPE CLAMP
€ 6.00
29
920751042
ref: 29
DAMPER,MUFFLER
€ 7.00
30
110R0610
ref: 30
BOLT,6X10
€ 5.00
