AIR CLEANER ('78 D1)
KZ1000D3 Z1R 1980 CANADA

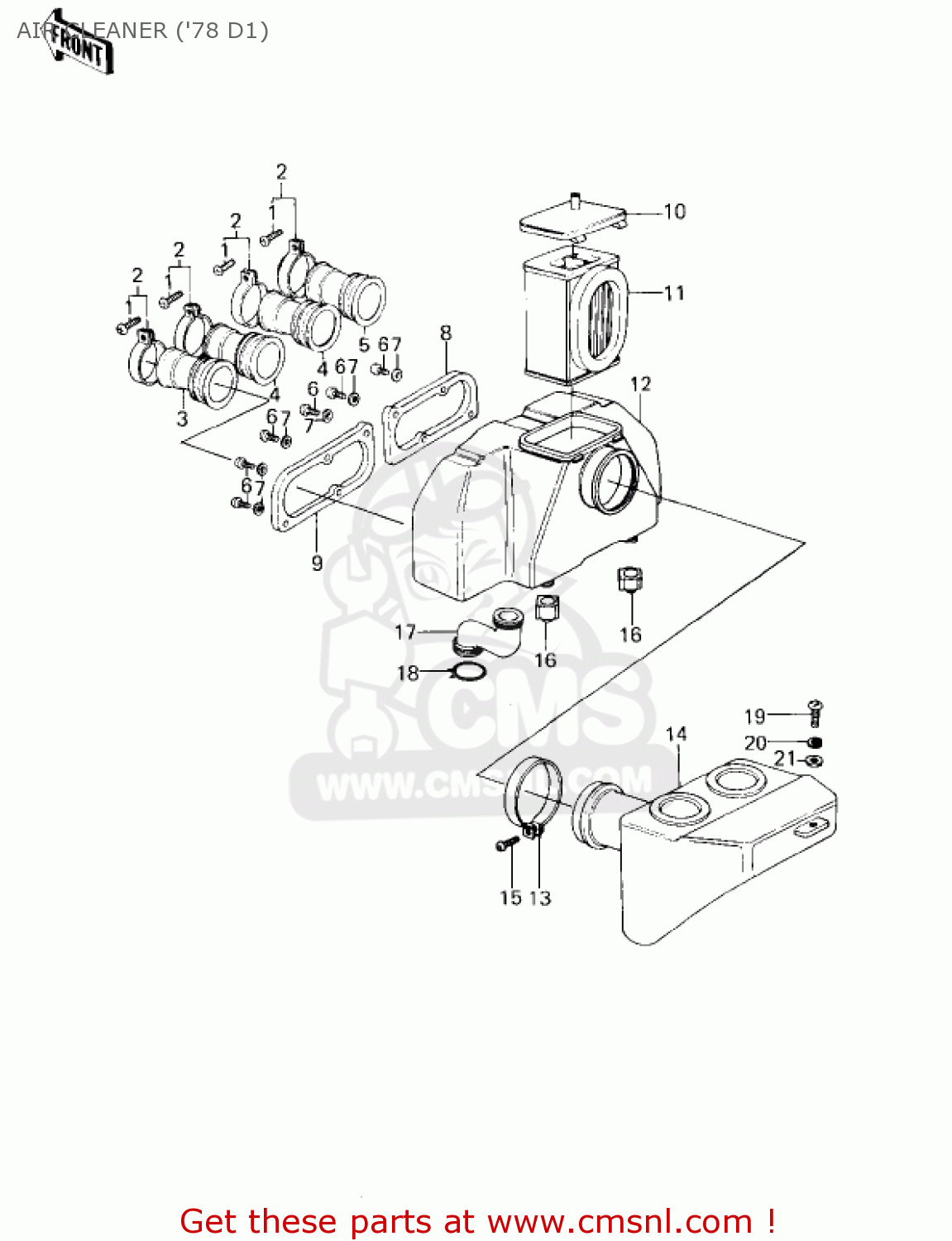

Air cleaner ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA
AIR CLEANER ('78 D1) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92011037
ref: 1
SCREW,PAN HEAD 5X25
€ 2.50
2
92037061
ref: 2
CLAMP
€ 10.50
3
140731022
ref: 3
DUCT,AIR FILTER
€ 29.00
4
140731023
ref: 4
DUCT,AIR FILTER
€ 29.00
5
140731024
ref: 5
DUCT,AIR FILTER
€ 29.00
6
220B0412
ref: 6
SCREW-PAN CROS 4X12
€ 0.50
7
410B0400
ref: 7
WASHER-PLAIN-SMALL,4M
€ 0.50
8
11040003
ref: 8
PLATE,CARBURETOR HOLD
€ 18.50
9
11040002
ref: 9
PLATE,CARBURETOR HOLD
€ 128.00
10
11012075
ref: 10
CAP,AIR FILTER
€ 16.50
11
11013063
ref: 11
ELEMENT-AIR FILTER
€ 27.50
12
110111025
ref: 12
BODY,AIR CLEANER
€ 100.50
13
92037106
ref: 13
CLAMP
€ 9.00
14
11016009
ref: 14
SILENCER
€ 50.50
15
92011036
ref: 15
BOLT,5X50
€ 1.00
16
110121083
ref: 16
CAP,DRAIN
€ 7.50
17
92059124
ref: 17
TUBE,DRIN
€ 15.50
18
92037028
ref: 18
CLAMP,TUBE
€ 2.50
19
220B0616
ref: 19
SCREW-PAN HEAD,6X16
€ 2.50
20
461F0600
ref: 20
WASHER-SPRING,6MM
€ 0.50
21
410B0600
ref: 21
WASHER-PLAIN-SMALL,6M
€ 0.50
