METERS ('80 D3)
KZ1000D3 Z1R 1980 CANADA

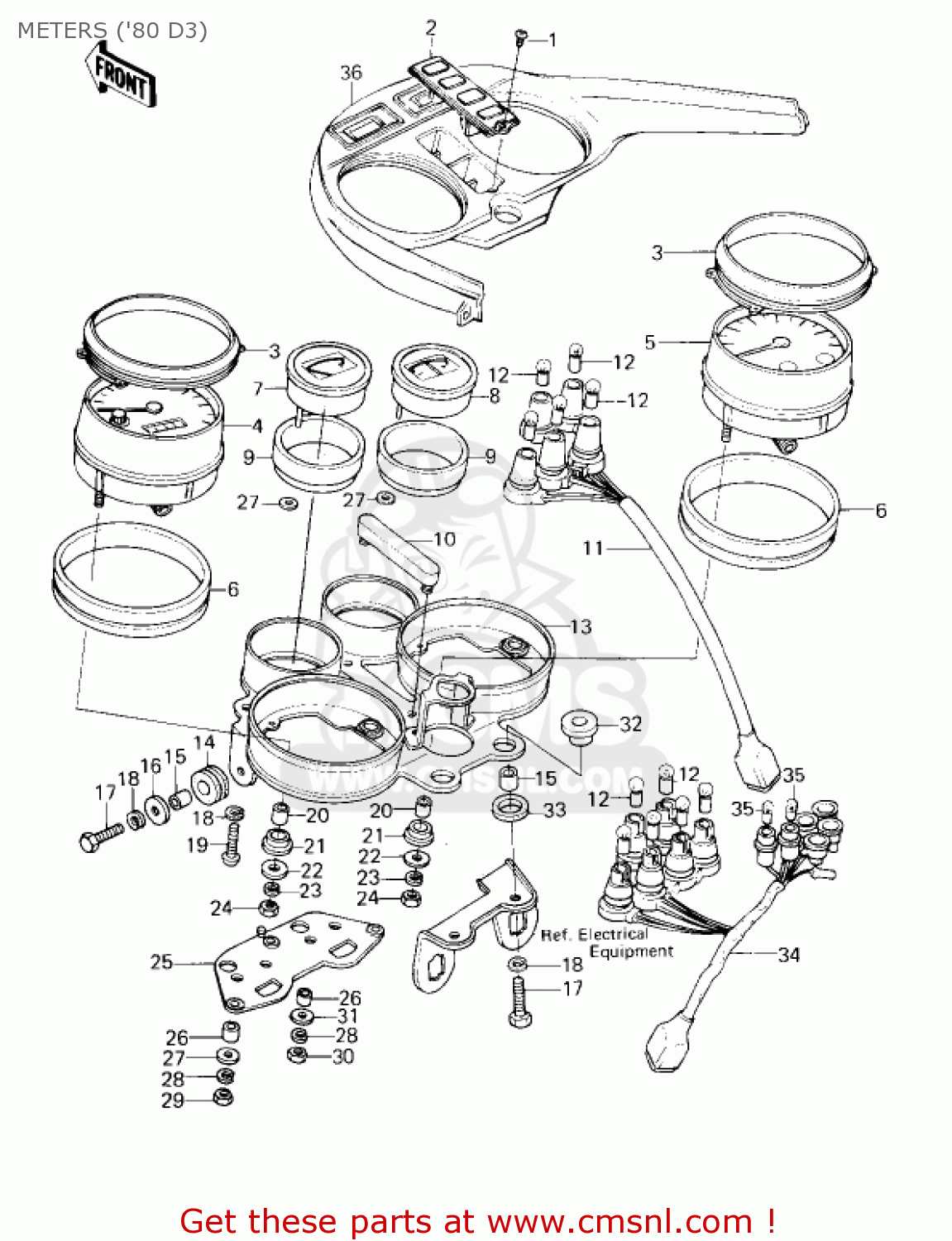

Meters ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
METERS ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
920091028
ref: 1
SCREW,COUNTERSUNK,3X8
€ 2.00
2
250231004
ref: 2
COVER-METER CASE
€ 73.50
3
920751049
ref: 3
DAMPER,METER
€ 24.00
4
250051070
ref: 4
SPEEDOMETER ASSEMBLY,MPH
€ 405.00
4
250051023
ref: 4
SPEEDOMETER,KPH
€ 722.50
5
250151014
ref: 5
TACHOMETER ASSEMBLY
€ 312.50
6
920751050
ref: 6
DAMPER RUBBER,METER
€ 15.00
7
280111001
ref: 7
METER,FUEL GAUGE
€ 166.00
8
280111002
ref: 8
METER,AMMETER
€ 162.50
9
920751051
ref: 9
DAMPER RUBBER,METER
€ 9.00
10
920751053
ref: 10
DAMPER RUBBER,METER
€ 12.00
11
230081021
ref: 11
SOCKET ASY,METER INDC
€ 69.00
12
92069018
ref: 12
BULB 12V 3W
€ 4.00
13
250081008
ref: 13
BRACKET,METER
€ 121.00
14
920751035
ref: 14
DAMPER RUBBER
€ 3.50
15
92027156
ref: 15
COLLAR-BATTERY CASE
€ 3.00
16
92022125
ref: 16
WASHER,6.5X20X1.6
€ 1.00
17
112G0625
ref: 17
BOLT-UPSET,6X25
€ 4.00
18
461F0600
ref: 18
WASHER-SPRING,6MM
€ 0.50
19
220B0612
ref: 19
SCREW-PAN HEAD,6X12
€ 1.00
20
92027211
ref: 20
COLLAR,5.6X8X13.8
€ 8.50
21
92075172
ref: 21
DAMPER
€ 12.50
22
92022241
ref: 22
WASHER,5.2X15X1.6
€ 2.50
23
461F0500
ref: 23
WASHER-SPRING,5MM
€ 0.50
24
312B0500
ref: 24
NUT-HEX,5MM
€ 0.50
25
920751052
ref: 25
DAMPER,METER
€ 24.00
26
920271075
ref: 26
COLLAR
€ 3.50
27
920221052
ref: 27
WASHER,PLAIN
€ 1.50
28
461F0400
ref: 28
WASHER-SPRING,4MM
€ 0.50
29
312B0400
ref: 29
NUT-HEX
€ 0.50
30
311B0400
ref: 30
NUT-HEX,4MM
€ 0.50
31
920221051
ref: 31
WASHER,PLAIN
€ 3.50
32
920751036
ref: 32
DAMPER RUBBER
€ 2.50
33
920751037
ref: 33
DAMPER RUBBER
€ 2.00
34
230081020
ref: 34
METER SOCKET ASSEMBLY
€ 83.50
35
920691003
ref: 35
BULB,12V2W
€ 3.50
36
250231002
ref: 36
COVER-METER CASE
€ 177.00
