STANDS ('80 D3)

KZ1000D3 Z1R 1980 CANADA

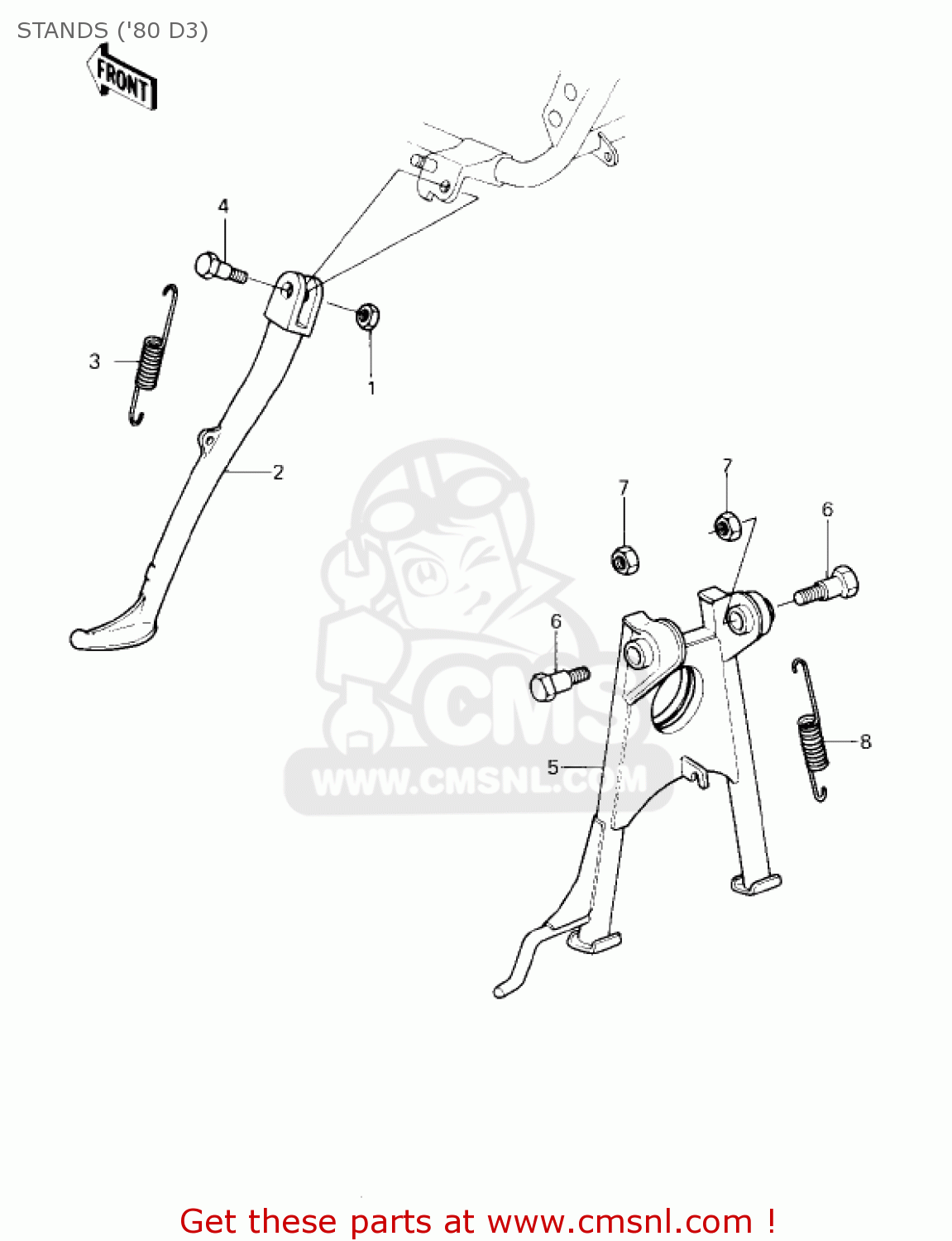

Stands ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA

STANDS ('80 D3) KZ1000D3 Z1R 1980 CANADA

STANDS ('80 D3) KZ1000D3 Z1R 1980 CANADA

prices are in EUR

ref

part #

description

quantity

1

92019021
ref: 1

NUT,LOCK,10M/M

€ 2.00

2

340241031
ref: 2

SIDE STAND

€ 63.00

3

34025005
ref: 3

SPRING-SIDE STAND

€ 5.00

4

92003079
ref: 4

BOLT-SIDE STAND

€ 7.50

5

340111015
ref: 5

STAND-CENTER

€ 192.00

6

34019014
ref: 6

SHAFT-STAND,CNT

€ 16.00

7

92016044
ref: 7

NUT,14MM

€ 4.50

8

34023012
ref: 8

SPRING,MAIN STAND

€ 10.00
