KICKSTARTER MECHANISM ('80 D3)

KZ1000D3 Z1R 1980 CANADA

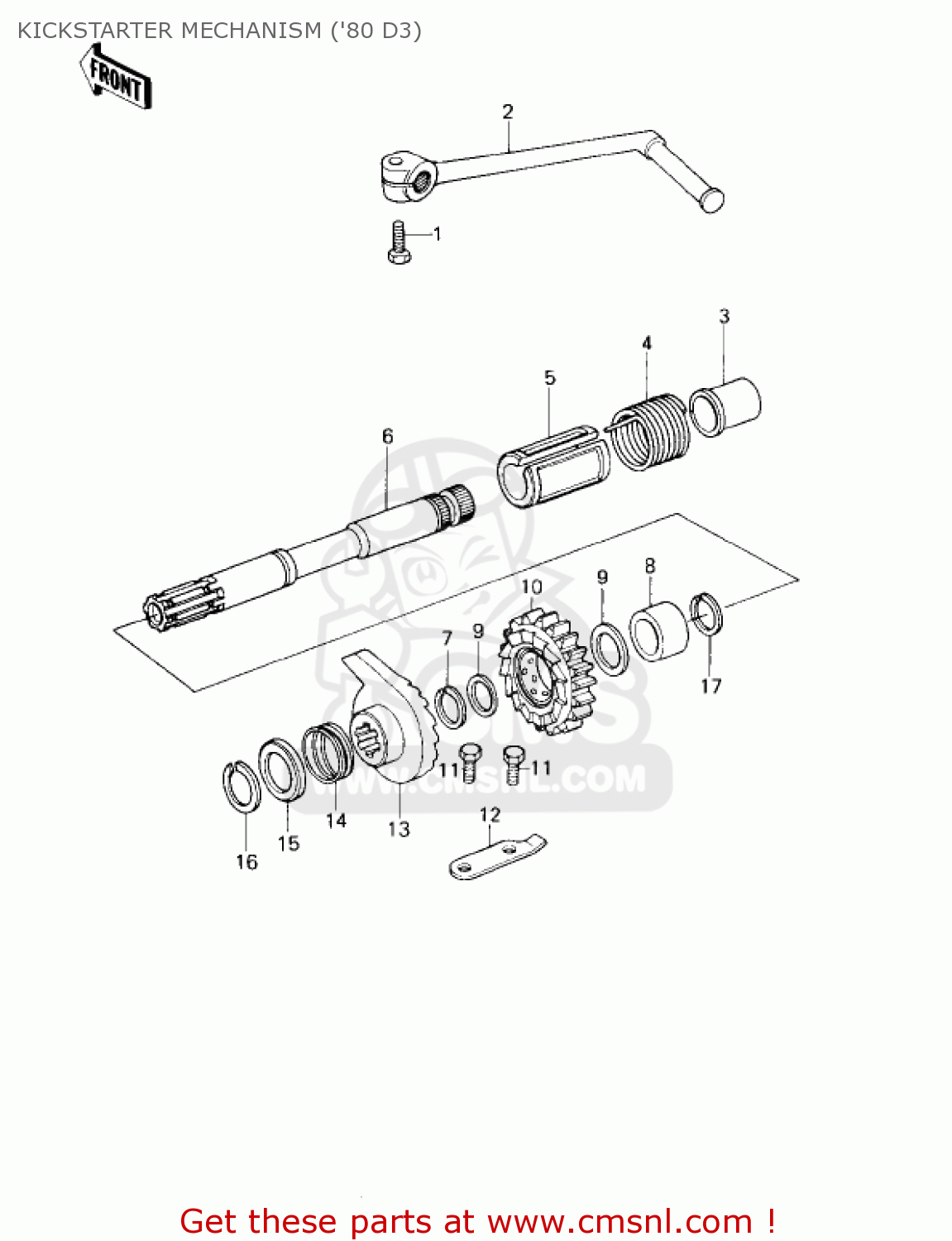

Kickstarter mechanism ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA

KICKSTARTER MECHANISM ('80 D3) KZ1000D3 Z1R 1980 CANADA

KICKSTARTER MECHANISM ('80 D3) KZ1000D3 Z1R 1980 CANADA

prices are in EUR

ref

part #

description

quantity

1

113G1025
ref: 1

BOLT-SMALL-FINE,10X25

€ 2.50

2

130591006
ref: 2

LEVER ASSY,KICK

€ 70.50

3

92074037
ref: 3

PLUG

€ 2.50

4

92082004
ref: 4

SPRING-KICKSTARTER

€ 12.50

5

130701008
ref: 5

GUIDE,KICK SPRING

€ 7.00

6

130661004
ref: 6

SHAFT-KICK

€ 85.00

7

92033025
ref: 7

CIRCLIP,25MM

€ 3.00

8

92028126
ref: 8

COLLAR,KICKSHAFT

€ 20.00

9

92022207
ref: 9

WASHER-PLAIN,22MM

€ 2.50

10

590511006
ref: 10

GEAR,KICKSTARTER

€ 61.50

11

112G0614
ref: 11

BOLT-UPSET,6X14

€ 2.50

12

13072012
ref: 12

STOPPER,KICKSTARTER

€ 7.00

13

13078011
ref: 13

RATCHET

€ 58.50

14

92081104
ref: 14

SPRING-RATCHET

€ 6.50

15

92102008
ref: 15

CAP-KICKSTARTER

€ 4.00

16

480J1900
ref: 16

CIRCLIP-TYPE-C,19MM

€ 1.00

17

480J2200
ref: 17

CIRCLIP-TYPE-C,22MM

€ 3.00
