CYLINDERS/PISTONS/CRANKSHAFT ('8
KZ1000D3 Z1R 1980 CANADA

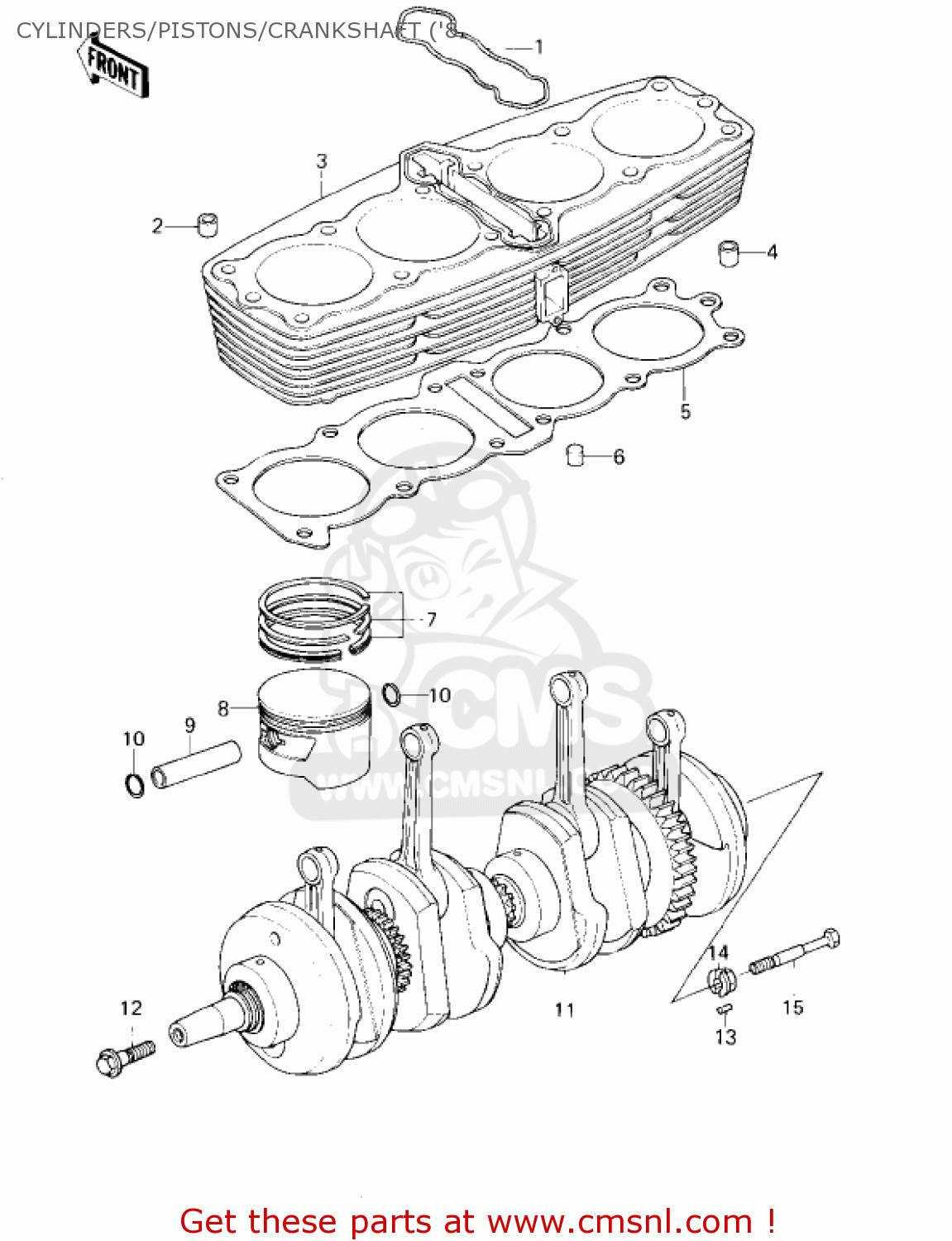

Cylinders/pistons/crankshaft ('8 diagram KZ1000D3 Z1R 1980 CANADA
CYLINDERS/PISTONS/CRANKSHAFT ('8 KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92055062
ref: 1
RING-O,CYLINDER RUBER (NAS)
€ 102.00
2
920431037
ref: 2
PIN,DOWEL,10X8.2X14
€ 0.50
3
11005100921
ref: 3
FLAT BLACK
CYLINDER,FLAT BLACK
€ 1,143.50
4
920431266
ref: 4
PIN,11X14X12.3
€ 1.00
5
11009030
ref: 5
GASKET-CYLINDER BASE (MCA)
€ 43.00
6
92074030
ref: 6
PLUG,CYLINDER,16.3X8
€ 4.50
7
130085012
ref: 7
RING-SET-PISTON,STD
€ 110.50
7
130255007
ref: 7
RING-SET-PISTON L,O/S
€ 125.50
7
130245008
ref: 7
RING-SET-PISTON LL,O/
€ 91.00
8
130011005
ref: 8
PISTON-ENGINE,STD
€ 78.00
8
130291003
ref: 8
PISTON-ENGINE-L,O/S 0
€ 165.00
8
130271005
ref: 8
PISTON-ENGINE-LL,O/S
€ 81.50
9
13002022
ref: 9
PIN-PISTON
€ 37.00
10
92036021
ref: 10
CIRCLIP-PISTON PIN
€ 0.50
11
130311040
ref: 11
CRANKSHAFT ASSY
€ 973.00
12
920011146
ref: 12
BOLT,12X40
€ 6.50
13
555A0408
ref: 13
PIN-SPRING,4X8
€ 2.50
14
92022244
ref: 14
WASHER,BREAKER GOVERN
€ 9.50
15
92001113
ref: 15
BOLT,SPARK ADVANCER
€ 19.50
