FRONT BRAKE ('78 D1)
KZ1000D3 Z1R 1980 CANADA

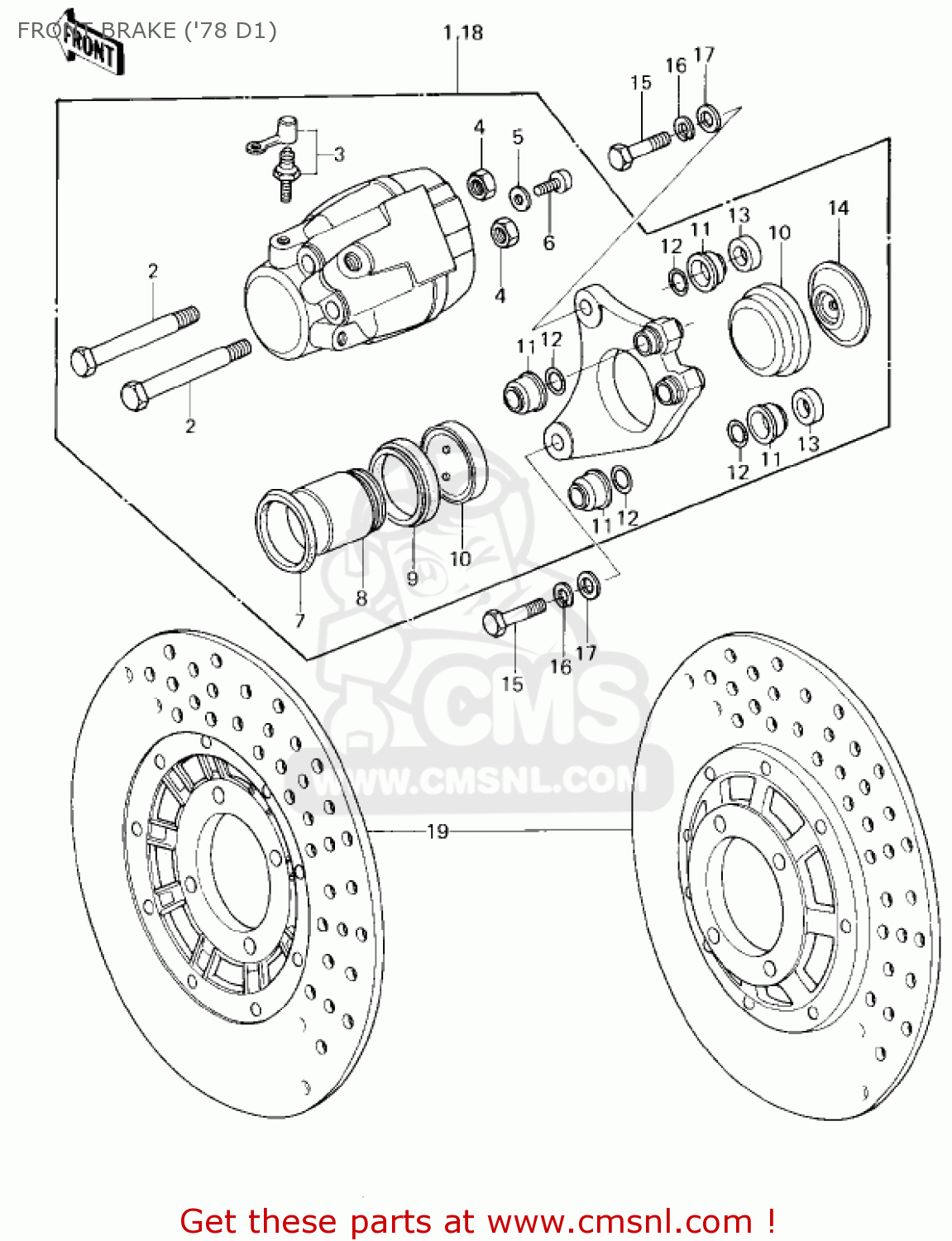

Front brake ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA
FRONT BRAKE ('78 D1) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
430411010
ref: 1
CALIPER ASSY,L.H.FRNT
€ 442.00
2
43045006
ref: 2
BOLT
€ 18.00
3
43085001
ref: 3
BREEDER SET
€ 16.50
4
315B1000
ref: 4
NUT,10MM
€ 0.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
220B0612
ref: 6
SCREW-PAN HEAD,6X12
€ 1.00
7
43049001
ref: 7
RING-PISTON SEAL
€ 7.50
8
430481002
ref: 8
PISTON-CALIPER
€ 80.50
9
43054003
ref: 9
BOOT,PISTON
€ 10.00
10
430505003
ref: 10
PAD SET
€ 82.00
11
43052005
ref: 11
BOOT,SHAFT
€ 7.50
12
43053006
ref: 12
RING-O
€ 7.00
13
43088002
ref: 13
PLUG
€ 6.50
14
43040004
ref: 14
SPACER
€ 8.00
15
92007032
ref: 15
BOLT,10X41.5
€ 8.50
16
461F1000
ref: 16
WASHER-SPRING,10MM
€ 0.50
17
410B1000
ref: 17
WASHER-PLAIN-SMALL,10
€ 0.50
18
430411011
ref: 18
CALIPER ASSY,R.H.FRNT
€ 358.50
19
410801003
ref: 19
DISC PLATE,FRONT
€ 291.00
