SEAT ('78 D1)
KZ1000D3 Z1R 1980 CANADA

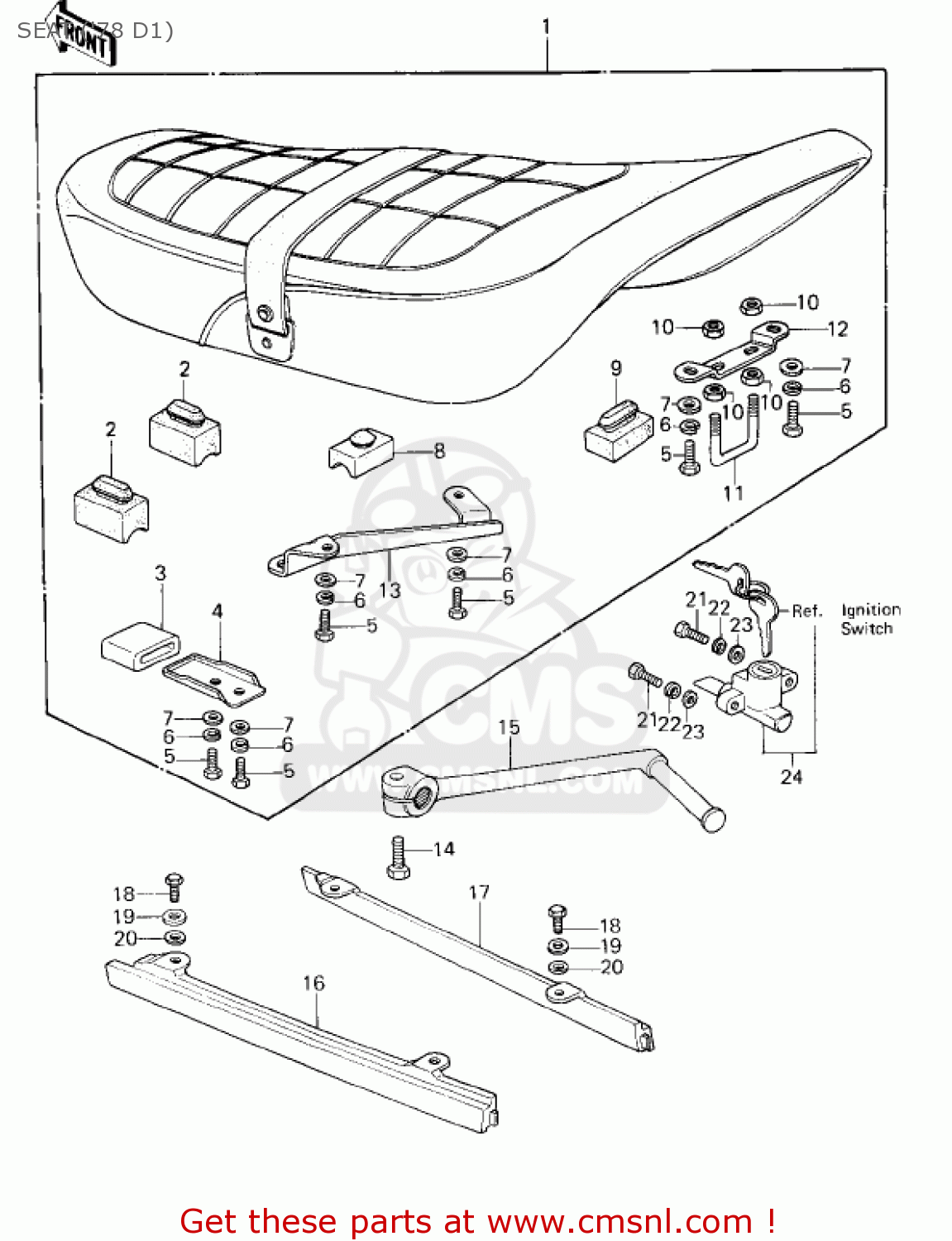

Seat ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA
SEAT ('78 D1) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
530011015
ref: 1
SEAT-ASSY,DUAL
€ 779.50
2
92075139
ref: 2
DAMPER,SEAT
€ 7.00
3
92075219
ref: 3
DAMPER,SEAT
€ 4.50
4
110341135
ref: 4
BRACKET,SEAT
€ 14.00
5
112G0616
ref: 5
BOLT UPSET,6X16
€ 1.00
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
411B0600
ref: 7
WASHER-PLAIN,6MM
€ 0.50
8
920751041
ref: 8
DAMPER RUBBER
€ 3.00
9
92075099
ref: 9
DAMPER RUBBER
€ 3.50
10
312B0600
ref: 10
NUT,6MM
€ 0.50
11
53056002
ref: 11
HOOK,SEAT
€ 11.50
12
53058001
ref: 12
BRACKET,SEAT CATCH
€ 6.00
13
110341132
ref: 13
BRACKET,SEAT
€ 6.50
14
113G1025
ref: 14
BOLT-SMALL-FINE,10X25
€ 2.50
15
130591006
ref: 15
LEVER ASSY,KICK
€ 70.50
16
1402510237W
ref: 16
M. S. SILVER
COVER,FRONT SEAT,L.H
€ 41.50
17
1402510247W
ref: 17
M. S. SILVER
COVER,FRONT SEAT,R.H
€ 34.00
18
92003069
ref: 18
BOLT,6MM
€ 5.50
19
410B0800
ref: 19
WASHER-PLAIN-SMALL,8M
€ 0.50
20
92075251
ref: 20
DAMPER,COVER
€ 3.50
21
112G0516
ref: 21
BOLT-UPSET
€ 0.50
22
461F0500
ref: 22
WASHER-SPRING,5MM
€ 0.50
23
411B0500
ref: 23
WASHER-PLAIN,5MM
€ 0.50
24
270165008
ref: 24
LOCK ASSY,SEAT
€ 52.50
