REAR WHEEL/TIRE/HUB/CHAIN ('80 D
KZ1000D3 Z1R 1980 CANADA

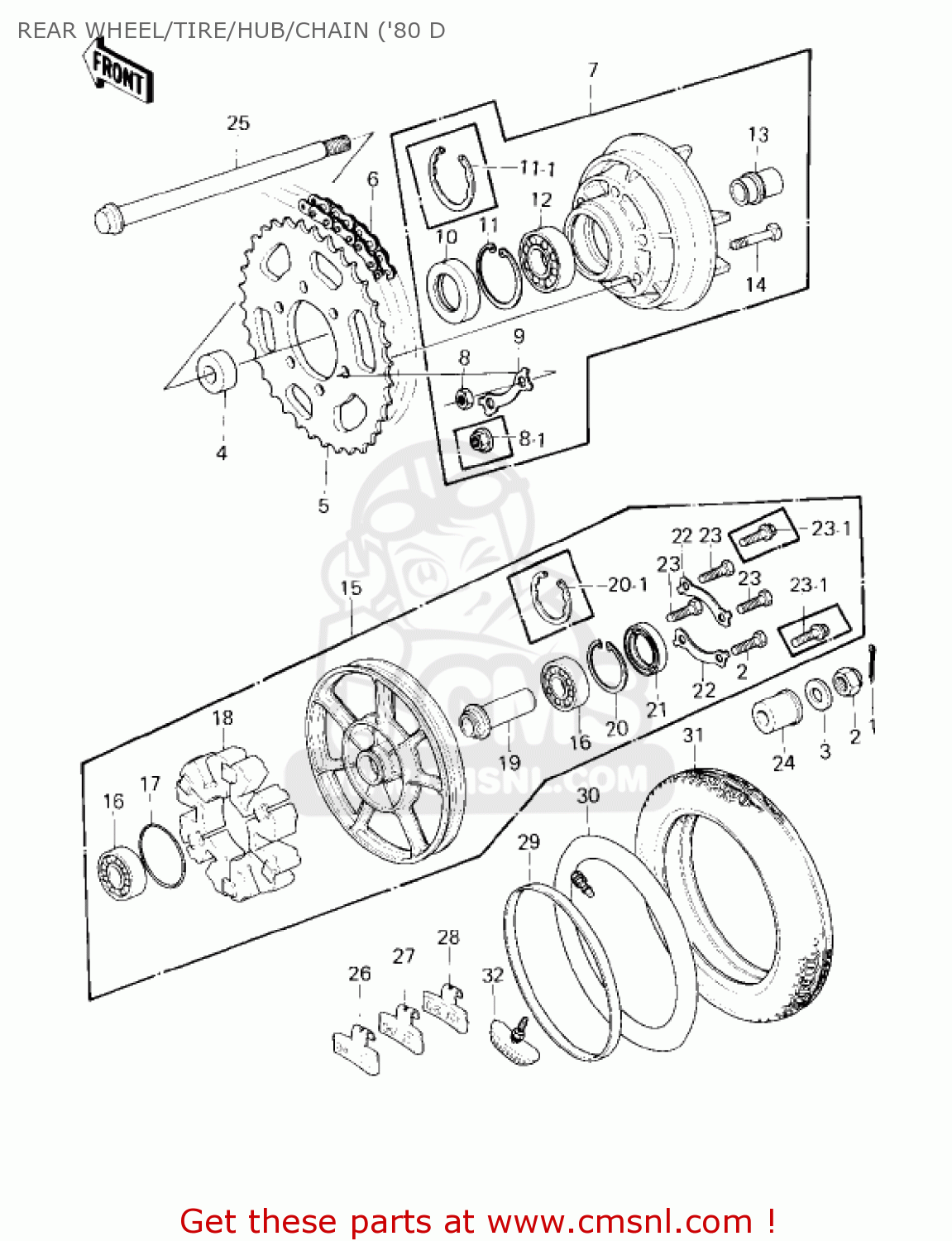

Rear wheel/tire/hub/chain ('80 d diagram KZ1000D3 Z1R 1980 CANADA
REAR WHEEL/TIRE/HUB/CHAIN ('80 D KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
550D4035
ref: 1
PIN-COTTER,4.0X35
€ 1.00
2
42045018
ref: 2
NUT,18MM
€ 7.50
3
92022248
ref: 3
WASHER,20.3X34X4.5
€ 7.50
4
42032071
ref: 4
COLLAR, REAR AXLE
€ 8.00
5
420411031
ref: 5
BLACK
REAR SPROCKET,35T
€ 55.00
6
92057107
ref: 6
EK630S
CHAIN ASSY, DRIVE
€ 168.00
7
420331005
ref: 7
COUPLING ASSY,REAR HB
€ 216.50
8
42045005
ref: 8
NUT,10MM
€ 5.00
8-1
920151415
ref: 8-1
NUT,10MM
€ 3.00
9
92088007
ref: 9
NOT REQUIRED FOR
WASHER,LOCK
€ 8.00
10
92050027
ref: 10
OIL SEAL
€ 13.50
11
920331044
ref: 11
CIRCLIP 62 M/M
€ 7.50
11-1
920331044
ref: 11-1
CIRCLIP 62 M/M
€ 7.50
12
601B6206
ref: 12
BEARING-BALL,#6206C3
€ 19.50
13
42036033
ref: 13
SLEEVE,REAR COUPLING
€ 25.50
14
92003087
ref: 14
BOLT-RR SPRCKT 10X49
€ 4.00
15
410731035
ref: 15
SOLID WHEEL ASSY,REAR
€ 634.50
16
601B6304Z
ref: 16
BEARING-BALL,#6304ZC3
€ 20.50
17
671B2565
ref: 17
O RING,65MM
€ 6.00
18
42014033
ref: 18
DAMPER,RR HUB SHOCK,1
€ 85.50
19
42010039
ref: 19
COLLAR,FRONT HUB BEAR
€ 10.50
20
920331043
ref: 20
RING,SNAP,56.2M/M
€ 6.00
20-1
920331043
ref: 20-1
RING,SNAP,56.2M/M
€ 6.00
21
92052006
ref: 21
OIL SEAL WTC35527
€ 6.50
22
92088023
ref: 22
NOT REQUIRED FOR
WASHER,LOCK
€ 6.00
23
92001158
ref: 23
BOLT
€ 2.00
23-1
920011173
ref: 23-1
BOLT,HEX HEAD,10X30
€ 6.00
24
42032080
ref: 24
COLLAR,L=6
€ 53.50
25
42031034
ref: 25
AXLE,RR
€ 87.50
26
410751011
ref: 26
BALANCER WHEEL 10G
€ 7.50
27
410751012
ref: 27
BALANCER WHEEL 20G
€ 7.50
28
410751013
ref: 28
BALANCER WHEEL 30G
€ 7.50
29
410231006
ref: 29
BAND,RIM,4.00/5.10-18
€ 7.00
30
41022031
ref: 30
TR6
TUBE,3.75/4.00-18
€ 33.00
31
410021069
ref: 31
DUNLOP K8
TIRE,400V-18 K87 R
€ 129.00
32
410241001
ref: 32
STOPPER-RIM,2.15-RL(D
€ 93.50
