CARBURETOR PARTS (USA) ('80 D3)
KZ1000D3 Z1R 1980 CANADA

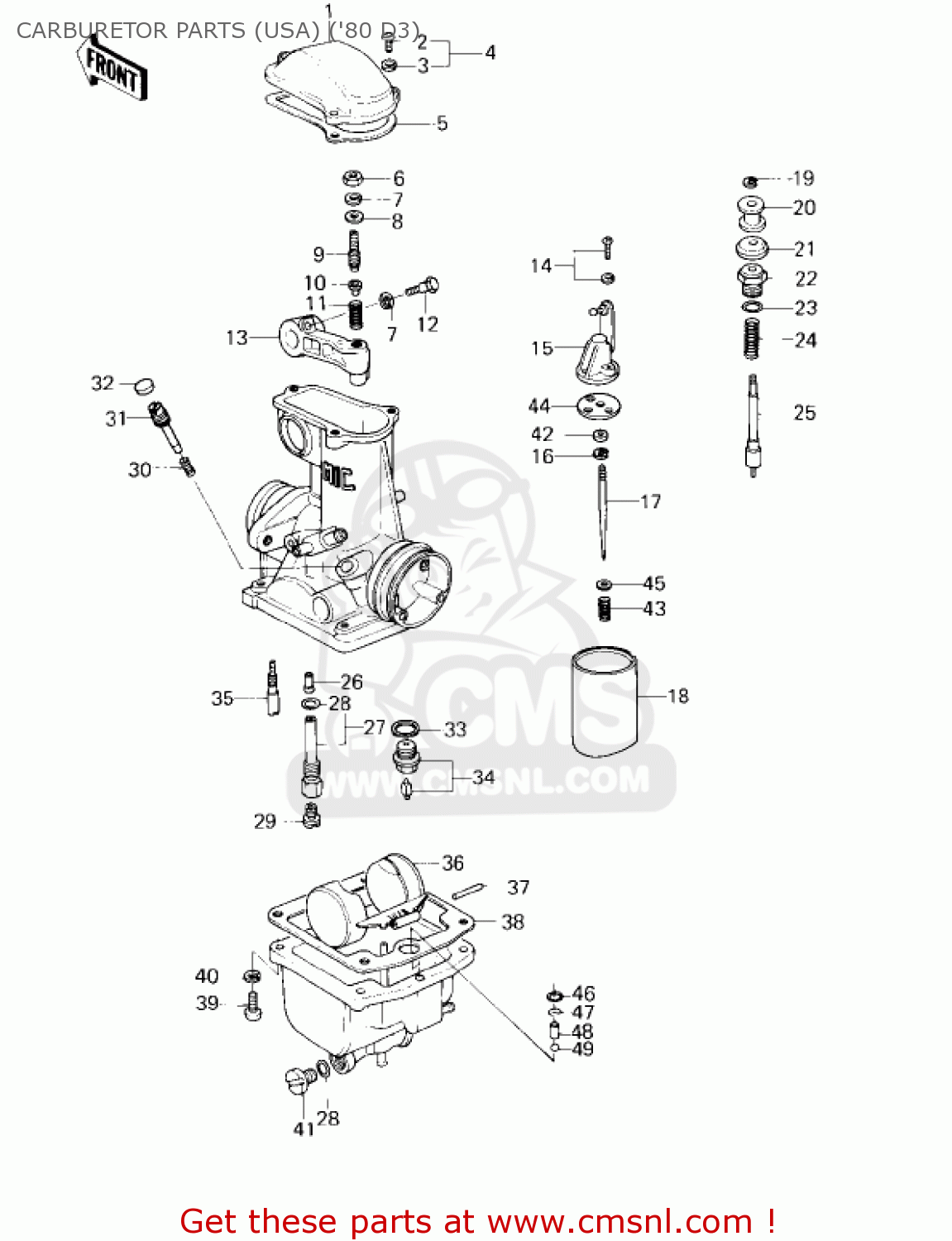

Carburetor parts (usa) ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
CARBURETOR PARTS (USA) ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16005027
ref: 1
TOP,MIXING CHAMBER
€ 15.50
2
220B0414
ref: 2
SCREW-PAN-CROS
€ 2.00
3
461F0400
ref: 3
WASHER-SPRING,4MM
€ 0.50
4
223B0414
ref: 4
SCREW PAN-WS-CROS
€ 2.50
5
16019031
ref: 5
GASKET,CHAMBER,TOP (NAS)
€ 24.50
6
16003013
ref: 6
NUT,5M/M
€ 6.00
6
312B0500
ref: 6
NUT-HEX,5MM
€ 0.50
7
461F0500
ref: 7
WASHER-SPRING,5MM
€ 0.50
8
16039016
ref: 8
WASHER,PLAIN
€ 3.50
9
16046012
ref: 9
SCREW, SLOTTED
€ 13.50
10
16057002
ref: 10
SEAT-SPRING
€ 6.00
11
16040026
ref: 11
SPRING
€ 3.50
12
16067006
ref: 12
BOLT-HEX HEAD,5X14
€ 10.50
13
390751001
ref: 13
LEVER,THROTTLE
€ 25.00
14
16033031
ref: 14
SCREW, PAN HEAD, 3X14
€ 3.50
15
110341238
ref: 15
THROTTLE VALVE BRACKET
€ 29.00
16
16008010
ref: 16
CLAMP,E-TYPE
€ 5.00
17
160091046
ref: 17
JET,NEEDLE,5CN29
€ 21.00
18
160251026
ref: 18
THROTTLE VALVE,CA2.0
€ 57.50
19
16076003
ref: 19
CLAMP
€ 4.50
20
16073014
ref: 20
COLLAR,STARTER PLUNGE
€ 5.50
21
16039015
ref: 21
CAP,STARTER PLUNGER
€ 4.50
22
16012015
ref: 22
CAP-STARTER PLUNGER
€ 8.50
23
670B1509
ref: 23
O RING,9MM
€ 1.00
24
16013008
ref: 24
SPRING-STARTER PLUNG
€ 4.50
25
16016021
ref: 25
PLUNGER,STARTER
€ 26.00
26
160171035
ref: 26
NEEDLE-JET A0-4
€ 24.50
27
491221001
ref: 27
PIPE-BLEEDER
€ 37.50
28
16038016
ref: 28
GASKET,O-RING
€ 2.50
29
920631028
ref: 29
JET-MAIN,#A102.5R
€ 10.00
29
920631033
ref: 29
RACING USE ON
JET-MAIN,#A100R
€ 17.00
29
920631042
ref: 29
RACING USE ON
JET-MAIN,#A105R
€ 10.50
29
92063073
ref: 29
RACING USE ON
JET-MAIN,#107.5R
€ 9.50
30
16022007
ref: 30
SPRING-THR STOP SCREW
€ 5.50
31
160141020
ref: 31
PILOT ADJUSTING SCREW
€ 9.00
32
920661051
ref: 32
PLUG,PILOT AIR SCREW,
€ 3.00
33
16029004
ref: 33
WASHER-FLOAT VLV SEAT
€ 2.50
34
16030027
ref: 34
VALVE-FLOAT
€ 85.00
35
920641017
ref: 35
PILOT JET #A15
€ 15.00
36
16031031
ref: 36
FLOAT
€ 114.50
37
16032003
ref: 37
FLOAT PIN
€ 4.00
38
110091562
ref: 38
GASKET,FLOAT CHAMBER (NAS)
€ 12.50
39
220B0416
ref: 39
SCREW-PAN-CROS
€ 2.00
40
461F0400
ref: 40
WASHER-SPRING,4MM
€ 0.50
41
16049007
ref: 41
SCREW, GUIDE
€ 9.50
42
920271103
ref: 42
RING,JET NEEDLE
€ 4.50
43
920811072
ref: 43
NEEDLE JET SPRING
€ 2.50
44
131691107
ref: 44
NEEDLE JET PLATE
€ 5.50
45
920221024
ref: 45
WASHER,THROTTLE VALVE
€ 4.50
46
920551059
ref: 46
RING-O,CHECK VALVE
€ 7.50
47
920371123
ref: 47
CLAMP,SPRING,CHECK VA
€ 3.50
48
130421004
ref: 48
WEIGHT,PUMP,CHECK VAL
€ 3.50
49
921401003
ref: 49
BALL,STEEL,5/32
€ 3.50
