IGNITION SWITCH/LOCKS/REFLECTORS
KZ1000D3 Z1R 1980 CANADA

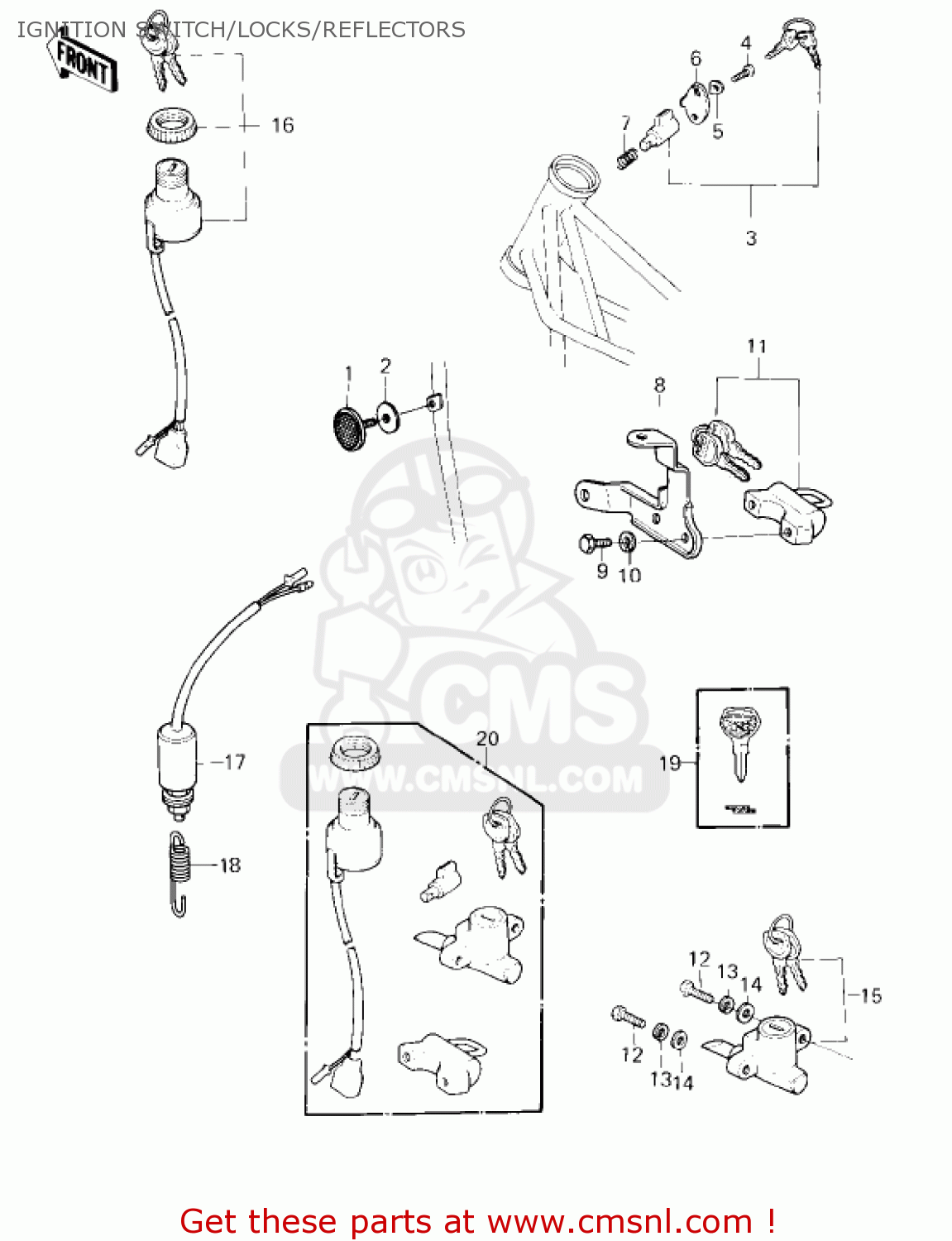

Ignition switch/locks/reflectors diagram KZ1000D3 Z1R 1980 CANADA
IGNITION SWITCH/LOCKS/REFLECTORS KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
28012016
ref: 1
REFLECTOR REFLEX
€ 16.00
2
92094011
ref: 2
DAMPER,REFLECTOR
€ 3.00
3
270165016
ref: 3
LOCK ASSY,STEERING
€ 97.00
4
92008007
ref: 4
SCREW-TAPPING
€ 2.50
5
92097003
ref: 5
WASHER
€ 2.50
6
110121134
ref: 6
CAP,STEERING LOCK
€ 4.50
7
27032001
ref: 7
SPRING-STEERING LOCK
€ 3.50
8
110341134
ref: 8
BRACKET,HELMET LOCK
€ 3.50
9
112G0516
ref: 9
BOLT-UPSET
€ 0.50
10
461F0500
ref: 10
WASHER-SPRING,5MM
€ 0.50
11
270165014
ref: 11
LOCK ASSY,HELMET
€ 59.00
12
112G0516
ref: 12
BOLT-UPSET
€ 0.50
13
461F0500
ref: 13
WASHER-SPRING,5MM
€ 0.50
14
411B0500
ref: 14
WASHER-PLAIN,5MM
€ 0.50
15
270165031
ref: 15
SEAT LOCK ASSEMBLY
€ 59.00
16
270055012
ref: 16
IGNITION SWITCH ASSEMBLY
€ 94.00
17
27010017
ref: 17
SWITCH,BRAKE LAMP
€ 23.50
18
27011009
ref: 18
SPRING-BRAKE LAMP SW
€ 4.50
19
270081103
ref: 19
KEY-LOCK,BLANK
€ 13.50
20
270045019
ref: 20
LOCK ASSEMBLY
€ 163.00
