CAM CHAIN/TENSIONER ('80 D3)
KZ1000D3 Z1R 1980 CANADA

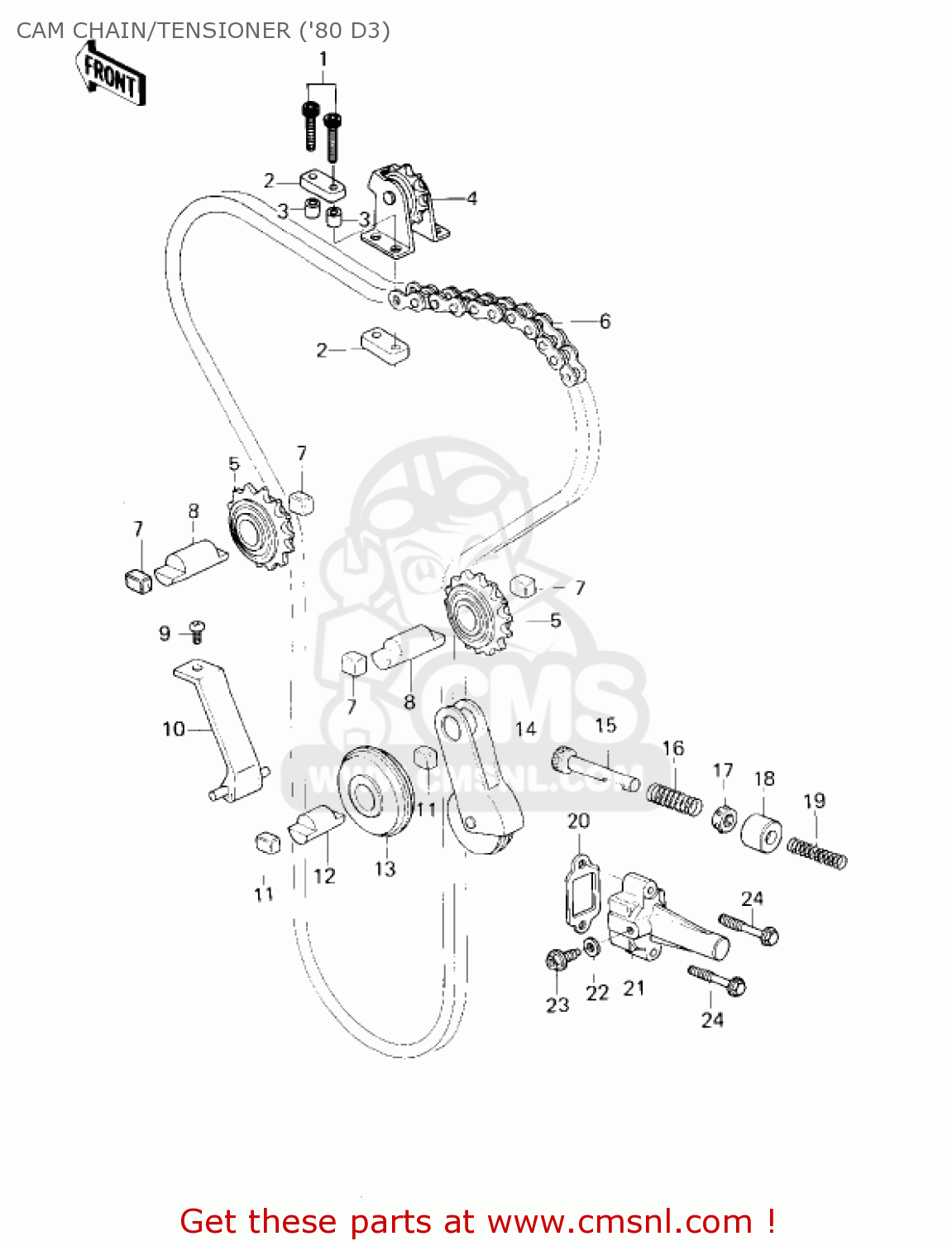

Cam chain/tensioner ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
CAM CHAIN/TENSIONER ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
120Q0632
ref: 1
BOLT,ALLEN,6X32
€ 3.00
2
92075289
ref: 2
DAMPER
€ 13.50
3
920271079
ref: 3
COLLAR,8X15
€ 2.50
4
120531035
ref: 4
GUIDE-CHAIN,CAM
€ 239.00
5
12057002
ref: 5
IDLER ASSY
€ 239.00
6
920571026
ref: 6
DID219T
CHAIN,CAM,124 LINKS
€ 25.00
7
92075232
ref: 7
DAMPER,IDLER SHAFT
€ 3.50
8
12052005
ref: 8
SHAFT-IDLER,GUIDE ROL
€ 18.50
9
220B0610
ref: 9
SCREW-PAN HEAD,6X10
€ 2.00
10
12053019
ref: 10
GUIDE-CHAIN,CAM
€ 27.50
11
92075123
ref: 11
DAMPER
€ 5.00
12
12052003
ref: 12
SHAFT-IDLER,CAM CHAIN
€ 9.50
13
12055002
ref: 13
ROLLER,CAM CHAIN GUID
€ 28.00
14
12048001
ref: 14
TENSIONER-ASSY,CAM CH
€ 177.50
15
131161008
ref: 15
ROD-PUSH
€ 56.00
16
920811068
ref: 16
SPRING,TENSIONER
€ 2.50
17
140201002
ref: 17
RETAINER,TENSIONER
€ 10.50
18
920271102
ref: 18
COLLAR,TENSIONER
€ 14.00
19
92081146
ref: 19
SPRING
€ 7.00
20
110091980
ref: 20
GASKET,TENSIONER (NAS)
€ 3.50
21
999961021
ref: 21
KIT
€ 133.00
22
92022077
ref: 22
WASHER,6.1X12X1
€ 0.50
23
920011155
ref: 23
BOLT,TENSIONER ADJUST
€ 3.50
24
130G0630
ref: 24
BOLT, FLANGED, 6X30
€ 0.50
