FRONT WHEEL/TIRE/HUB ('78 D1)
KZ1000D3 Z1R 1980 CANADA

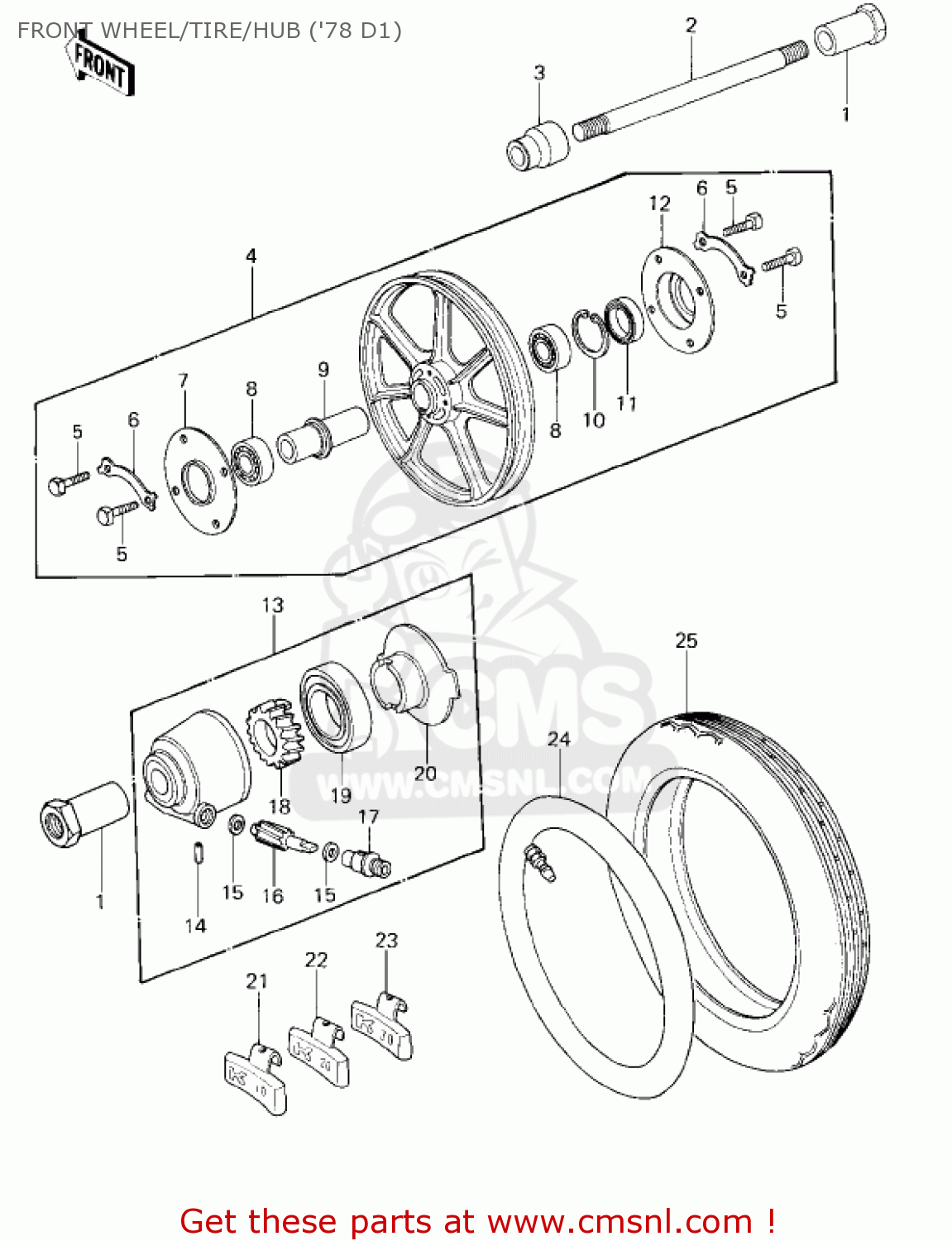

Front wheel/tire/hub ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA
FRONT WHEEL/TIRE/HUB ('78 D1) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
41069033
ref: 1
COLLAR,FRONT AXLE
€ 22.00
2
41068049
ref: 2
AXLE,FR
€ 71.00
3
41069032
ref: 3
COLLAR,FRONT AXLE
€ 13.50
4
410731037
ref: 4
SOLID WHEEL ASSY,FRNT
€ 1,006.50
5
92001158
ref: 5
BOLT
€ 2.00
6
92088023
ref: 6
WASHER,LOCK
€ 6.00
7
41042014
ref: 7
DUST COVER
€ 20.00
8
601B6203
ref: 8
BEARING-BALL,#6203C3
€ 10.50
9
41039028
ref: 9
COLLAR,BEARING
€ 19.50
10
920331040
ref: 10
RING,SNAP,40M/M
€ 4.00
11
654A254008
ref: 11
OIL SEAL
€ 13.00
12
41042015
ref: 12
DUST COVER
€ 15.00
13
410781004
ref: 13
CASE-ASSY-METER GEAR
€ 118.00
14
41082001
ref: 14
PIN-SPRING
€ 2.50
15
41063001
ref: 15
WASHER-THRST SPD PINI
€ 3.00
16
41060017
ref: 16
PINION,SPEEDOMETER
€ 33.50
17
41062005
ref: 17
BUSHING,SPEEDOMETER C
€ 12.00
18
410601010
ref: 18
GEAR,SPEEDOMETER
€ 19.50
19
920491057
ref: 19
OIL SEAL,BJN30427-C3
€ 7.50
20
41064013
ref: 20
RECEIVER-SPEEDOMETER
€ 11.50
21
410751011
ref: 21
BALANCER WHEEL 10G
€ 7.50
22
410751012
ref: 22
BALANCER WHEEL 20G
€ 7.50
23
410751013
ref: 23
BALANCER WHEEL 30G
€ 7.50
24
41022028
ref: 24
TUBE, 3.25/3.50-18
€ 41.00
25
410021027
ref: 25
DUNLOP GOLD SEAL 1 6
TIRE,350H-18 F6 F
€ 80.50
