CAMSHAFTS/VALVES ('80 D3)
KZ1000D3 Z1R 1980 CANADA

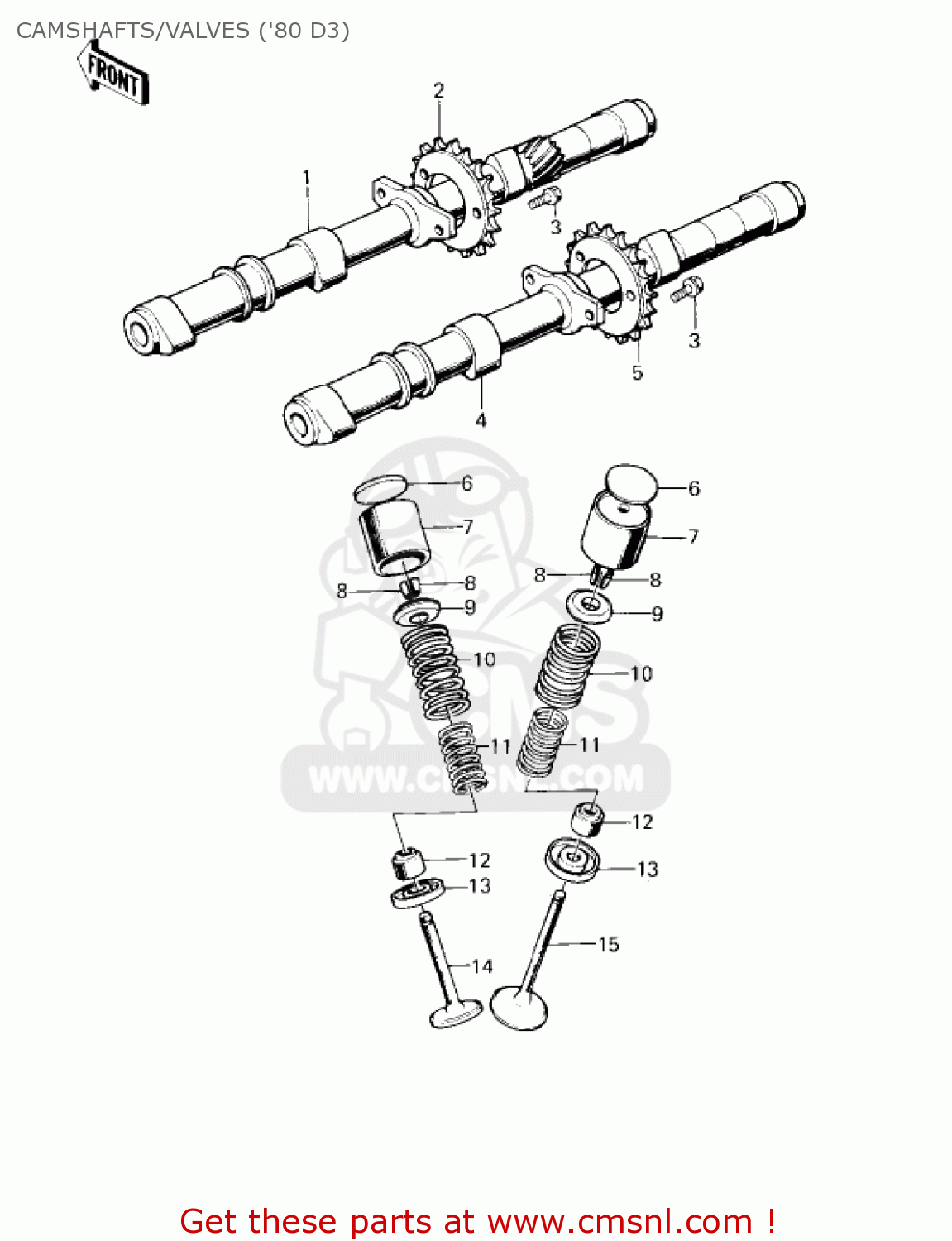

Camshafts/valves ('80 d3) diagram KZ1000D3 Z1R 1980 CANADA
CAMSHAFTS/VALVES ('80 D3) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
12044015
ref: 1
CAMSHAFT-VALVE,EXHAUS
€ 493.00
2
120461018
ref: 2
32T
SPROCKET,EXHUT CAM SF
€ 73.50
3
92003208
ref: 3
BOLT,SPROCKET FITTING
€ 2.50
4
12044014
ref: 4
CAM SHAFT,INLET
€ 500.50
5
120461017
ref: 5
32T
SPROCKET,INLET CAM SF
€ 64.00
6
12037001
ref: 6
SHIM,T=2.00
€ 13.00
6
12037002
ref: 6
SHIM,T=2.05
€ 13.00
6
12037003
ref: 6
SHIM,T=2.10
€ 13.00
6
12037004
ref: 6
SHIM,T=2.15
€ 13.00
6
12037005
ref: 6
SHIM,T=2.20
€ 13.00
6
12037006
ref: 6
SHIM,T=2.25
€ 13.00
6
12037007
ref: 6
SHIM,T=2.30
€ 13.00
6
12037008
ref: 6
SHIM,T=2.35
€ 13.00
6
12037009
ref: 6
SHIM,T=2.40
€ 13.00
6
12037010
ref: 6
SHIM,T=2.45
€ 13.00
6
12037011
ref: 6
SHIM,T=2.50
€ 13.00
6
12037012
ref: 6
SHIM,T=2.55
€ 13.00
6
12037013
ref: 6
SHIM,T=2.60
€ 13.00
6
12037014
ref: 6
SHIM,T=2.65
€ 13.00
6
12037015
ref: 6
SHIM,T=2.70
€ 13.00
6
12037016
ref: 6
SHIM,T=2.75
€ 13.00
6
12037017
ref: 6
SHIM,T=2.80
€ 13.00
6
12037018
ref: 6
SHIM,T=2.85
€ 13.00
6
12037019
ref: 6
SHIM,T=2.90
€ 13.00
6
12037020
ref: 6
SHIM,T=2.95
€ 13.00
6
12037021
ref: 6
SHIM,T=3.00
€ 13.00
6
12037022
ref: 6
SHIM,T=3.05
€ 13.00
6
12037023
ref: 6
SHIM,T=3.10
€ 13.00
6
12037024
ref: 6
SHIM,T=3.15
€ 13.00
6
12037025
ref: 6
SHIM,T=3.20
€ 13.00
7
12032005
ref: 7
TAPPET
€ 52.50
8
12011004
ref: 8
COLLET,RETAINER
€ 3.50
9
12009005
ref: 9
RETAINER-VALVE SPRING
€ 9.00
10
12007012
ref: 10
SPRING1OUTER VALVE
€ 15.00
11
12007011
ref: 11
SPRING-INNER VALVE
€ 15.00
12
92049016
ref: 12
OIL SEAL,RV37129.5
€ 13.50
13
160071024
ref: 13
SEAT-SPRING,VALVE
€ 4.00
14
42005009
ref: 14
DRUM ASSY-REAR BRAKE
€ 331.00
15
120041010
ref: 15
VALVE-INTAKE
€ 73.50
