HANDLEBAR ('78 D1)
KZ1000D3 Z1R 1980 CANADA

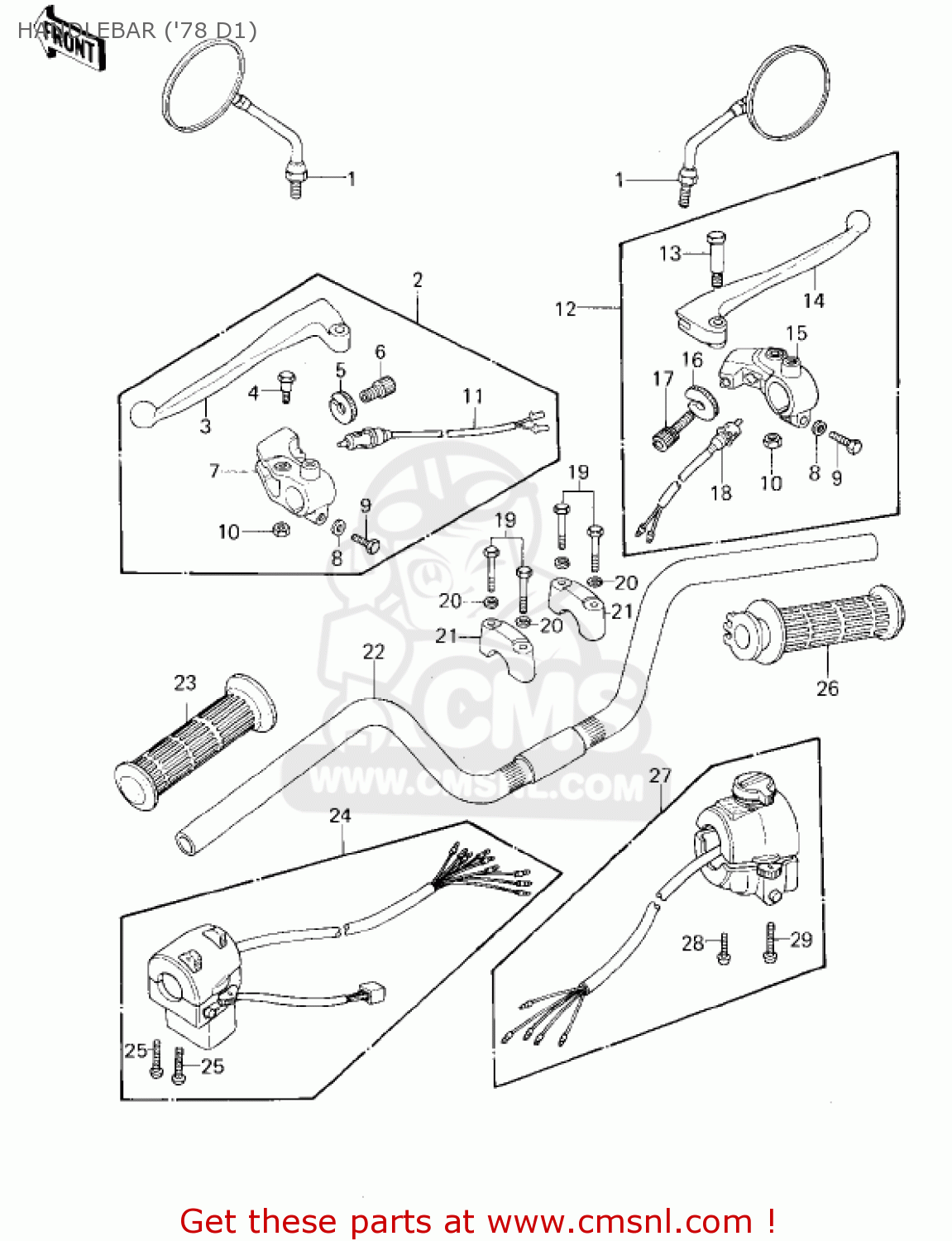

Handlebar ('78 d1) diagram KZ1000D3 Z1R 1980 CANADA
HANDLEBAR ('78 D1) KZ1000D3 Z1R 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
560011011
ref: 1
MIRROR-ASSY
€ 61.50
2
46076054
ref: 2
LEVER-ASSY-GRIP,CLUTC
€ 101.00
3
46092023
ref: 3
LEVER-GRIP,CLUTCH
€ 17.00
4
92007047
ref: 4
BOLT,HEX HEAD
€ 6.50
5
46056007
ref: 5
NUT,CABLE ADJUST LOCK
€ 9.00
6
46055003
ref: 6
SCREW-CABLE ADJUST
€ 11.50
7
46094019
ref: 7
HOLDER,CLUTCH LEVER
€ 55.00
8
410B0600
ref: 8
WASHER-PLAIN-SMALL,6M
€ 0.50
9
110N0625
ref: 9
BOLT-HEX HEAD,6X25
€ 3.50
10
92019008
ref: 10
NUT-LOCK,6MM
€ 3.00
11
27043002
ref: 11
SWITCH,CLUTCH
€ 21.00
12
460761002
ref: 12
LEVER ASSY,FRONT BRKE
€ 48.50
13
920011075
ref: 13
6 X 44
BOLT,CLUTCH LEVER FIT
€ 5.00
14
460921003
ref: 14
LEVER-GRIP,FRONT BRAK
€ 26.00
15
130911010
ref: 15
HOLDER,CLUTCH LEVER
€ 20.50
16
46056005
ref: 16
NUT-LOCK
€ 6.00
17
920091023
ref: 17
SCREW,CABLE ADJUST
€ 3.50
18
27021004
ref: 18
SWITCH,FR BRAKE LAMP
€ 23.00
19
920011405
ref: 19
BOLT,8X38
€ 10.00
20
461F0800
ref: 20
WASHER-SPRING,8MM
€ 0.50
21
46012008
ref: 21
HOLDER-HANDLE,UPP
€ 23.00
22
460031015
ref: 22
HANDLEBAR
€ 106.00
23
460751001
ref: 23
GRIP,LH
€ 13.00
24
460911029
ref: 24
HOUSING ASSEMBLY,LH
€ 156.50
25
220B0525
ref: 25
SCREW-PAN-CROS,5X25
€ 2.50
26
460191004
ref: 26
GRIP-ASSY,THROTTLE
€ 30.00
27
460911028
ref: 27
HOUSING ASSY, R.H.
€ 110.50
27
460911034
ref: 27
USE FOR CANADIAN MAR
HOUSING ASSEMBLY,RH
€ 77.50
28
220B0530
ref: 28
SCREW-PAN-CROS
€ 2.00
29
220B0540
ref: 29
SCREW-PAN-CROS
€ 2.00
