TRANSMISSION ('83 A1)
KX500-A1 KX500 1983 USA CANADA

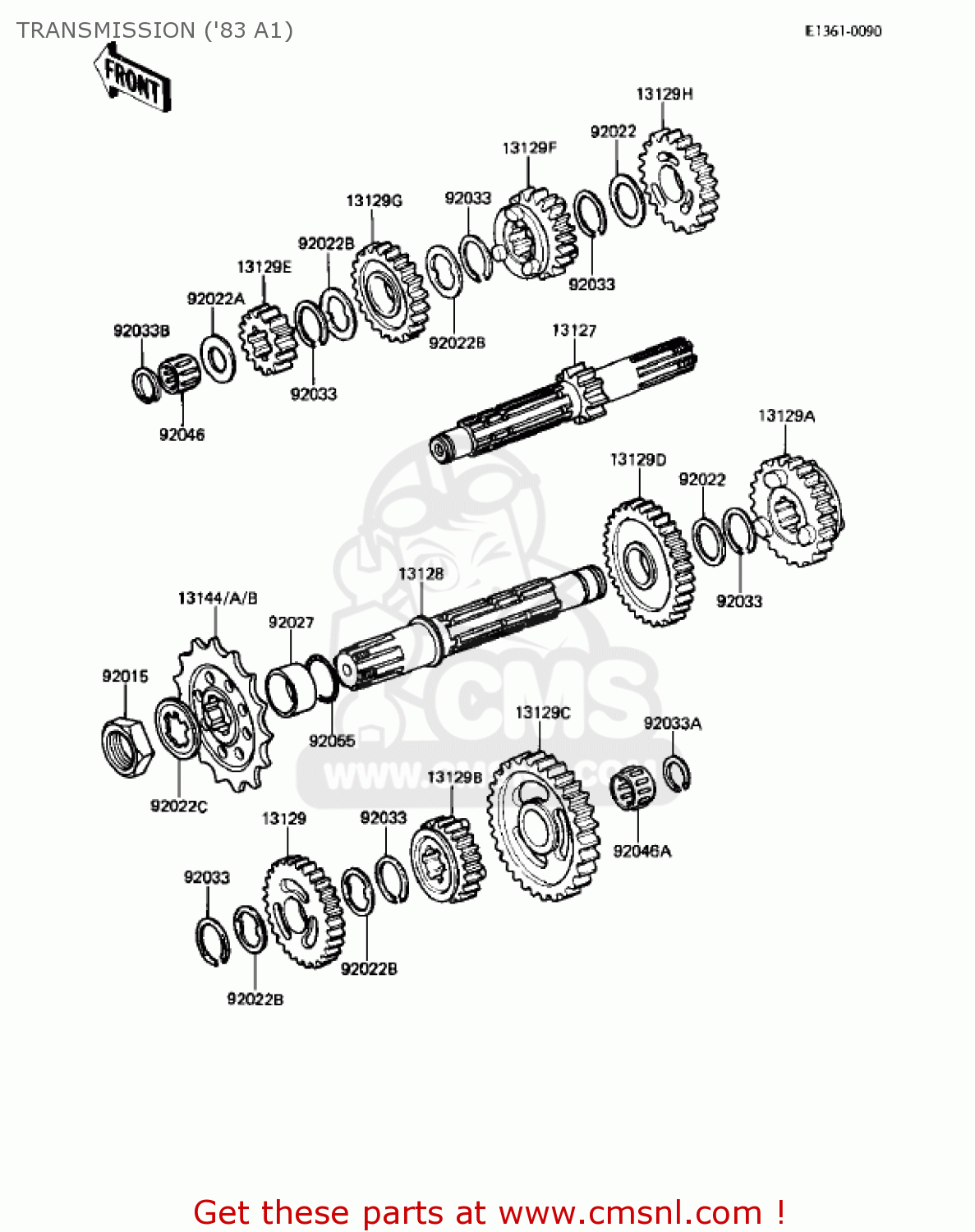

Transmission ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA
TRANSMISSION ('83 A1) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271053
ref: 13127
SHAFT-TRANSMISSION IN
€ 111.50
13128
131281042
ref: 13128
SHAFT-TRANSMISSION OU
€ 174.00
13129
131291679
ref: 13129
GEAR-OUTPUT 3RD,26T
€ 156.00
13129A
131291132
ref: 13129A
4TH GEAR,OUTPUT,21T
€ 112.00
13129B
131291133
ref: 13129B
TOP GEAR,OUTPUT,19T
€ 60.00
13129C
131291180
ref: 13129C
GEAR,OUTPUT LOW,32T
€ 93.50
13129D
131291622
ref: 13129D
GEAR-OUTPUT 2ND,32T
€ 102.50
13129E
131291407
ref: 13129E
GEAR,INPUT 2ND,22T
€ 57.00
13129F
131291408
ref: 13129F
GEAR,INPUT 3RD,22T
€ 87.50
13129G
131291409
ref: 13129G
GEAR,INPUT 4TH,22T
€ 102.50
13129H
131291410
ref: 13129H
GEAR,INPUT TOP,24T
€ 94.50
13144
13144055
ref: 13144
(OPTION)
SPROCKET-OUTPUT,13T
€ 28.50
13144A
131441006
ref: 13144A
SPROCKET-OUTPUT,14T
€ 24.00
13144B
131441026
ref: 13144B
(OPTION)
SPROCKET-OUTPUT,15T
€ 44.00
92015
42045008
ref: 92015
NUT,24MM
€ 6.50
92022
92022159
ref: 92022
WASHER-THRUST,25MM
€ 5.50
92022A
92022255
ref: 92022A
WASHER
€ 5.50
92022B
92024038
ref: 92022B
WASHER-LOCK
€ 4.00
92022C
92024065
ref: 92022C
WASHER,LOCK
€ 3.50
92027
921431370
ref: 92027
COLLAR,25X32X10.5
€ 9.50
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
92033029
ref: 92033A
CIRCLIP,18MM
€ 6.50
92033B
92033032
ref: 92033B
CIRCLIP
€ 3.00
92046
920461184
ref: 92046
BEARING-NEEDLE
€ 20.00
92046A
920461170
ref: 92046A
BEARING-NEEDLE,KT2026
€ 9.00
92055
92055035
ref: 92055
O RING
€ 3.00
