HANDLEBAR ('83 A1)
KX500-A1 KX500 1983 USA CANADA

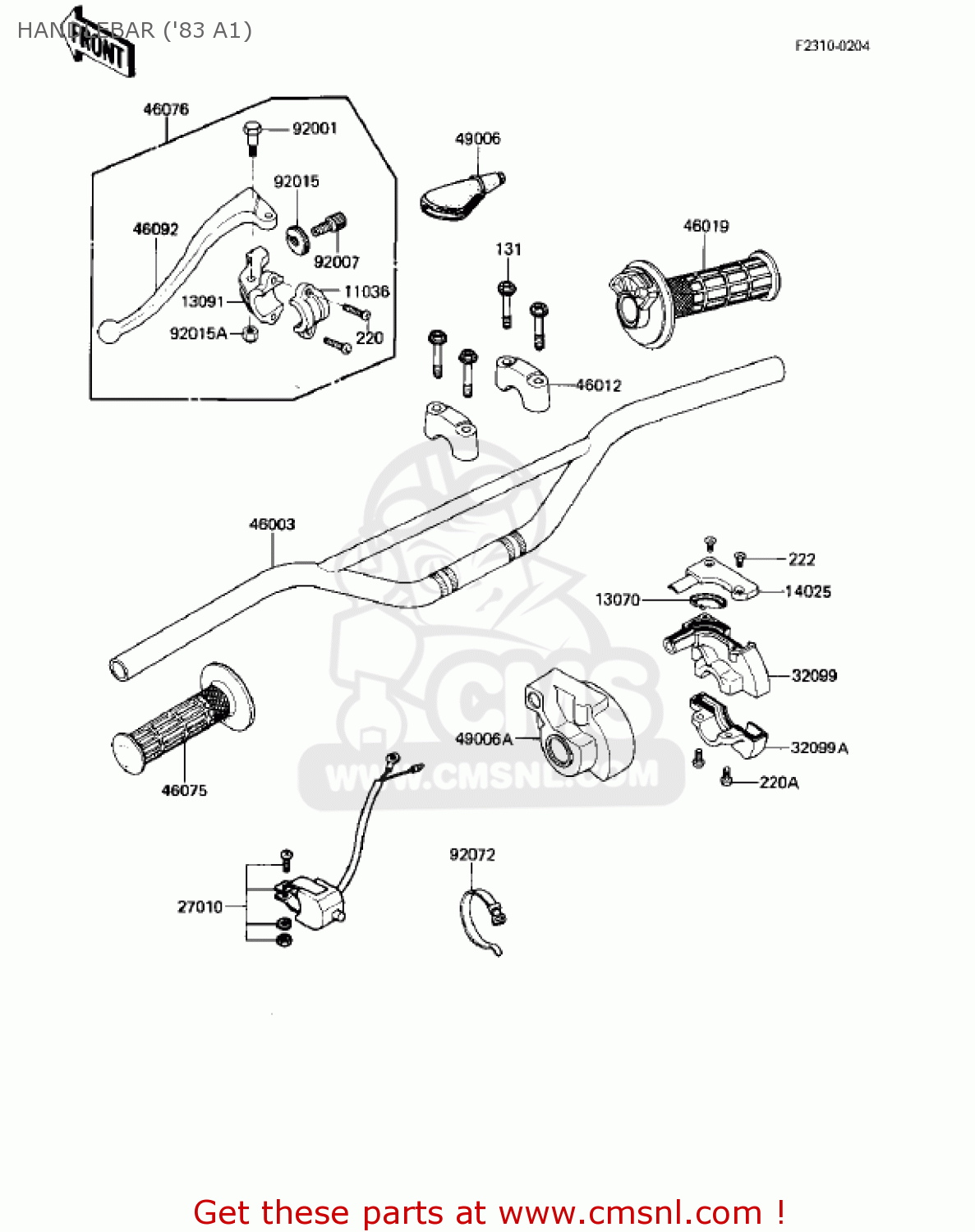

Handlebar ('83 a1) diagram KX500-A1 KX500 1983 USA CANADA
HANDLEBAR ('83 A1) KX500-A1 KX500 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13070
130701074
ref: 13070
GUIDE,THROTTLE
€ 4.00
13091
130911131
ref: 13091
HOLDER,CLUTCH LEVER
€ 31.50
14025
140251646
ref: 14025
COVER,THROTTLE CASE U
€ 6.50
27010
270101018
ref: 27010
SWITCH ASSY,ENG,STOP
€ 40.50
32099
320991036
ref: 32099
CASE,THROTTLE UPP
€ 25.00
32099A
320991044
ref: 32099A
CASE,THROTTLE LWR
€ 13.50
46003
460031119
ref: 46003
HANDLE
€ 65.50
46012
46012008
ref: 46012
HOLDER-HANDLE,UPP
€ 23.00
46019
460191027
ref: 46019
GRIP-ASSY,THROTTLE
€ 40.50
46075
460751024
ref: 46075
GRIP,LH
€ 13.50
46076
460761118
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 41.00
46092
460921110
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.50
49006
490061017
ref: 49006
BOOTS,LEVER HOLDER
€ 13.00
49006A
490061067
ref: 49006A
BOOT,DUST
€ 6.50
92001
92001140
ref: 92001
BOLT,HEX HEAD,6MM
€ 10.00
92007
46055010
ref: 92007
SCREW,CABLE ADJUST
€ 21.00
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
€ 6.00
92015A
92019008
ref: 92015A
NUT-LOCK,6MM
€ 3.00
92072
92072030
ref: 92072
BAND,SHORT
€ 3.00
131
131P0840
ref: 131
BOLT-FLANGED
€ 1.00
220
220B0514
ref: 220
ACREW-PAN HEAD,5X14
€ 2.50
220A
214B0516A
ref: 220A
UNAVAILABLE IN PRICE BOOK
€ 0.50
222
222E0412
ref: 222
SCREW-CSK-RD-CROS
€ 2.50
