FRAME ('84 A2)

KX500-A1 KX500 1983 USA CANADA

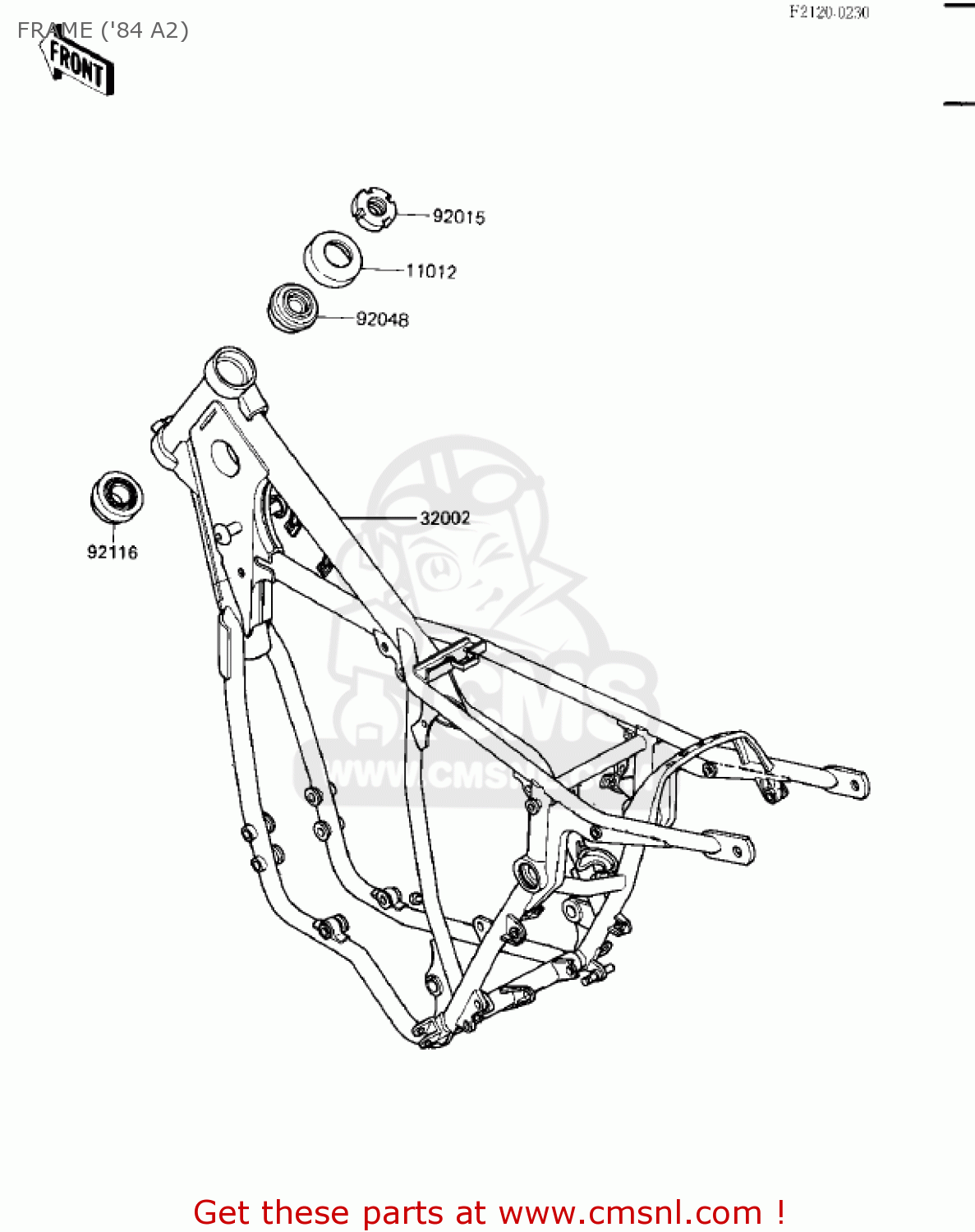

Frame ('84 a2) diagram KX500-A1 KX500 1983 USA CANADA

FRAME ('84 A2) KX500-A1 KX500 1983 USA CANADA

FRAME ('84 A2) KX500-A1 KX500 1983 USA CANADA

prices are in EUR

ref

part #

description

quantity

11012

46098015
ref: 11012

CAP,STEERING STEM

€ 3.50

32002

320021656
ref: 32002

FRAME-COMP

€ 899.00

92015

920151546
ref: 92015

NUT,25MM,T=12

€ 14.50

92048

92047017
ref: 92048

CONE,STRNG,STEM

€ 49.50

92116

921161008
ref: 92116

BEARING-ROLLER,LWR,32

€ 78.00
